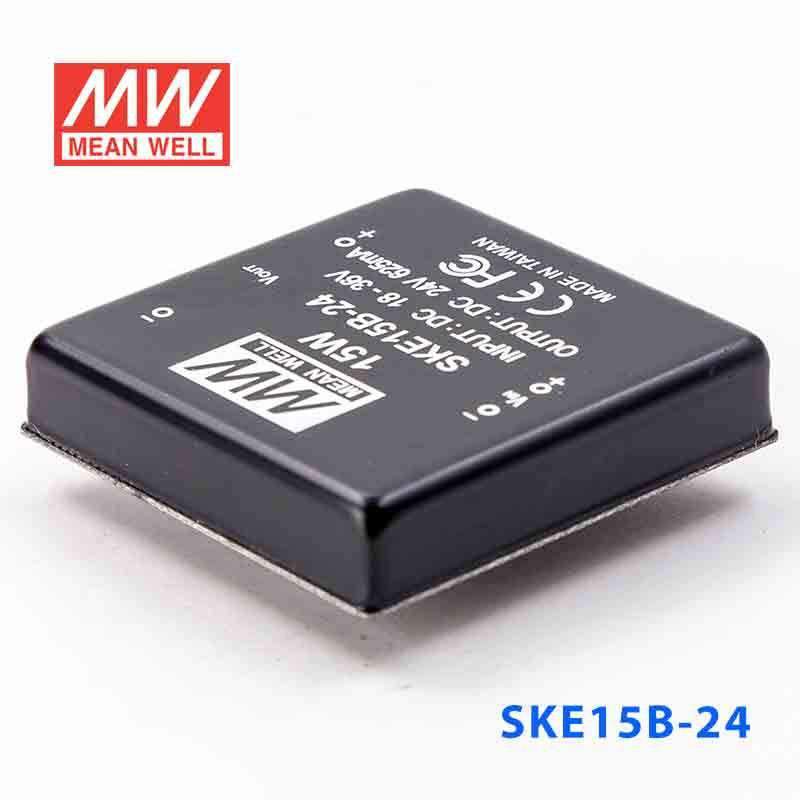

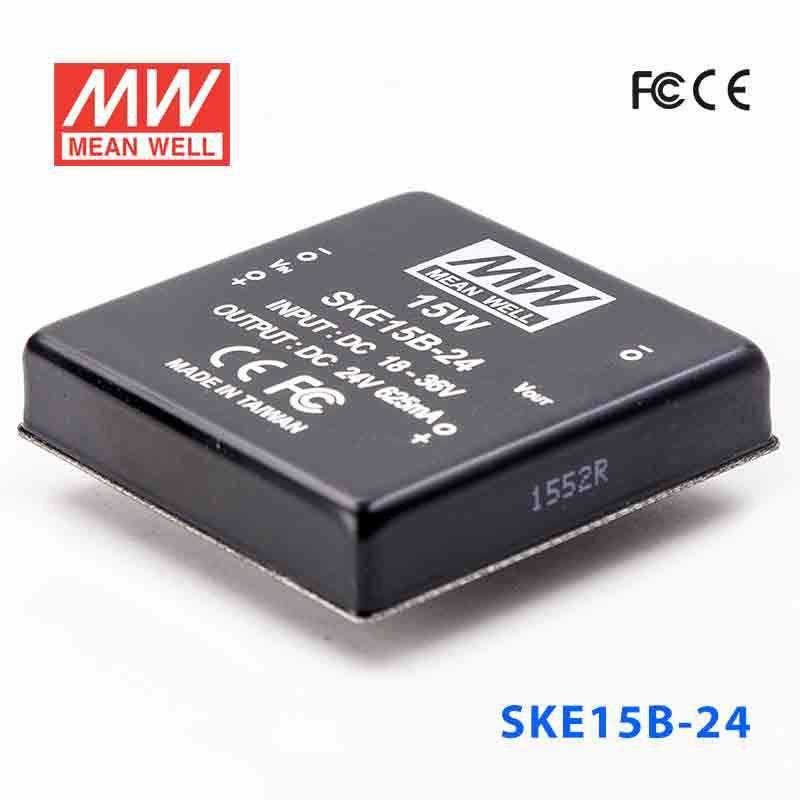

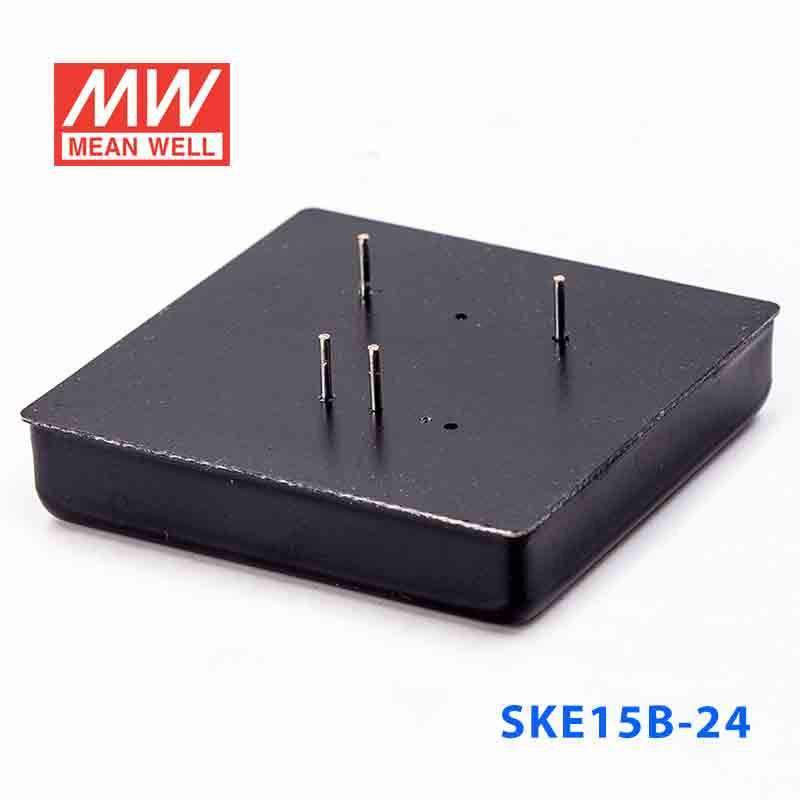

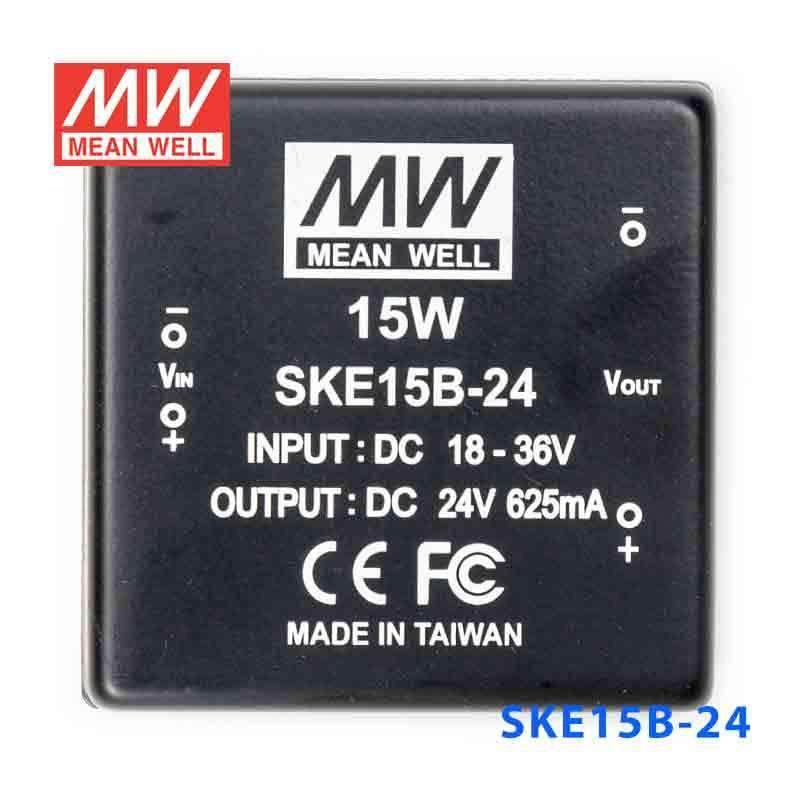

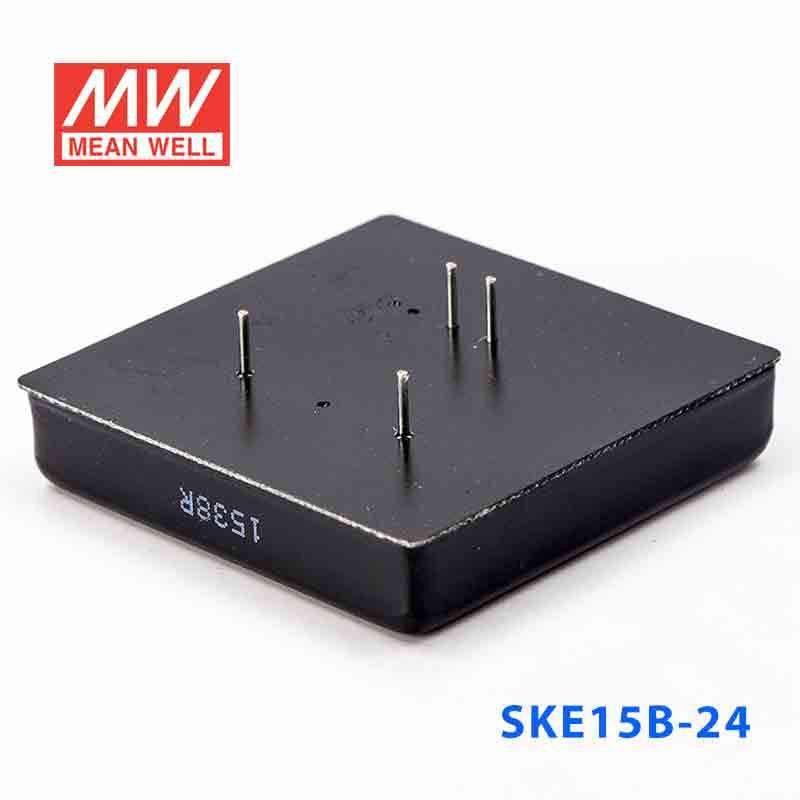

Mean Well SKE15B-24 DC-DC Converter - 15W - 18~36V in 24V out 625mA
The SKE15B is a 15W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSKE Series
-
Power Rating15 Watt
-
Output Voltage24 Volt
-
Rated Current0.62 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.43 in
-
Weight0.14 lb
::specification::
Frequently Asked Questions
Can I use the SKE15B-24 to power 24V automation electronics from an 18-36VAC source?
Yes. This unit accepts 18-36VAC input and provides a constant 24V output with 15W total power. It is intended for 24V electronics that require regulated constant-voltage output and fit within the published power rating.
Is the SKE15B-24 suitable for compact 24V control modules or industrial interface devices?
It can be suitable for lower-power 24V control or interface electronics because it provides constant 24V output in a 15W package. The compact 50.8 × 50.8 × 11.0 mm size also helps in dense equipment layouts.
Can this converter be used in OEM machinery that distributes 18-36VAC internally but needs a 24V DC rail?
Yes, that is an appropriate use case when the downstream electronics require regulated 24V constant-voltage power. The published input range is 18-36VAC, so it is designed for equipment operating within that AC window.
Is the SKE15B-24 appropriate for 24V monitoring, signaling, or instrumentation electronics?
It can be used for 24V monitoring, signaling, or instrumentation electronics that are designed for constant-voltage input and fit within the 15W rating. As with the rest of the series, it is a compact converter intended for regulated low-power DC output.
How does the SKE15B-24 differ from the other SKE15B models?
The SKE15B-24 shares the same 15W rating, 18-36VAC input range, dimensions, and -25°C to +71°C operating range as its siblings. Output options across the family are 5V at 3A, 12V at 1.25A, 15V at 1A, and 24V at 625A for this model.
Is the SKE15B-24 meant for exposed outdoor environments?
No IP rating is listed in the provided specifications. Even though the operating temperature range is -25°C to +71°C, the lack of a stated ingress-protection rating means it is better suited to protected environments rather than exposed outdoor use.
