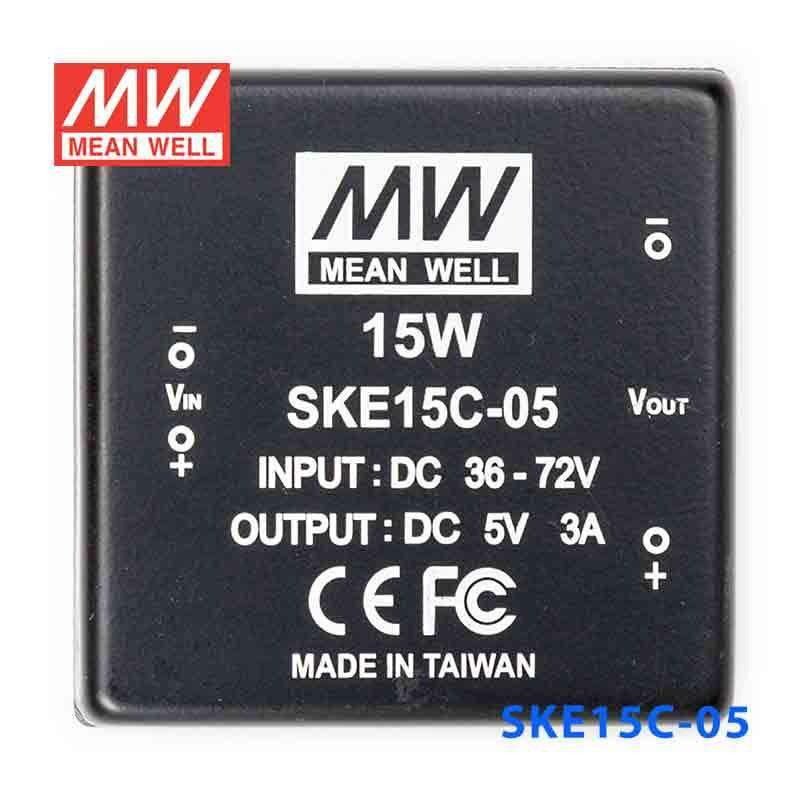

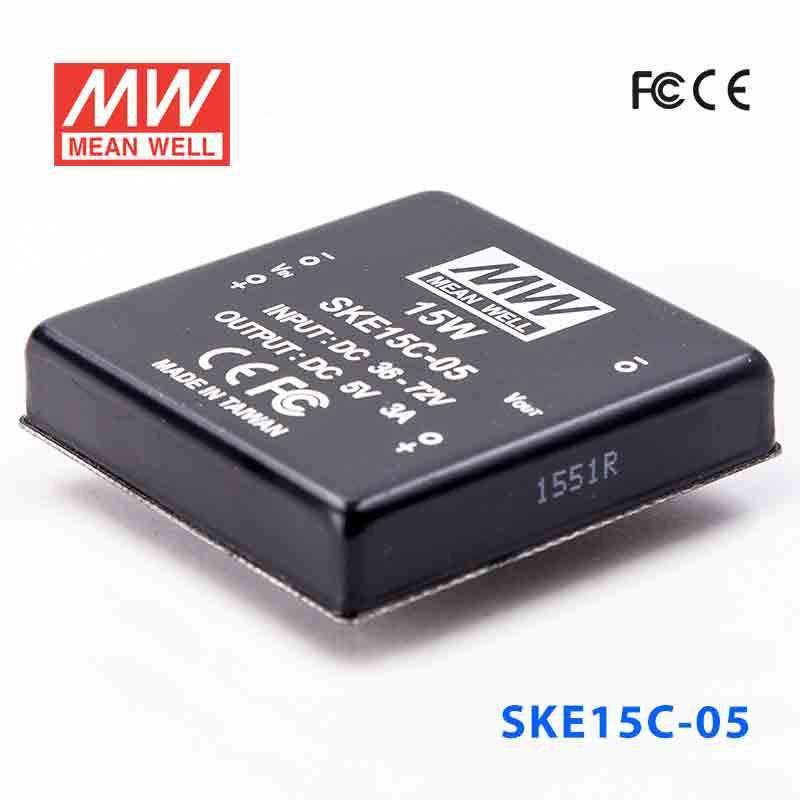

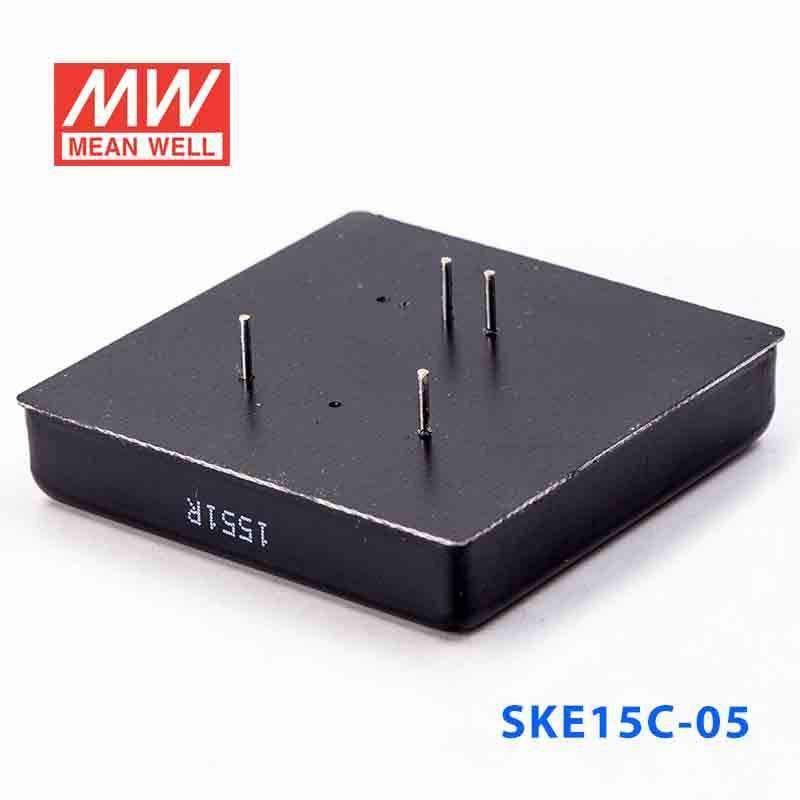

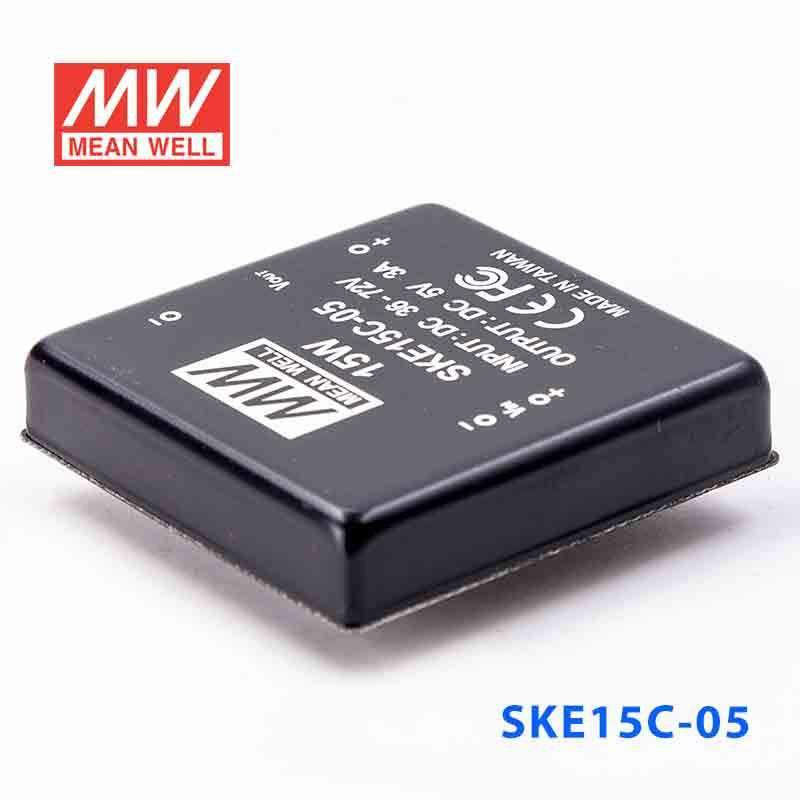

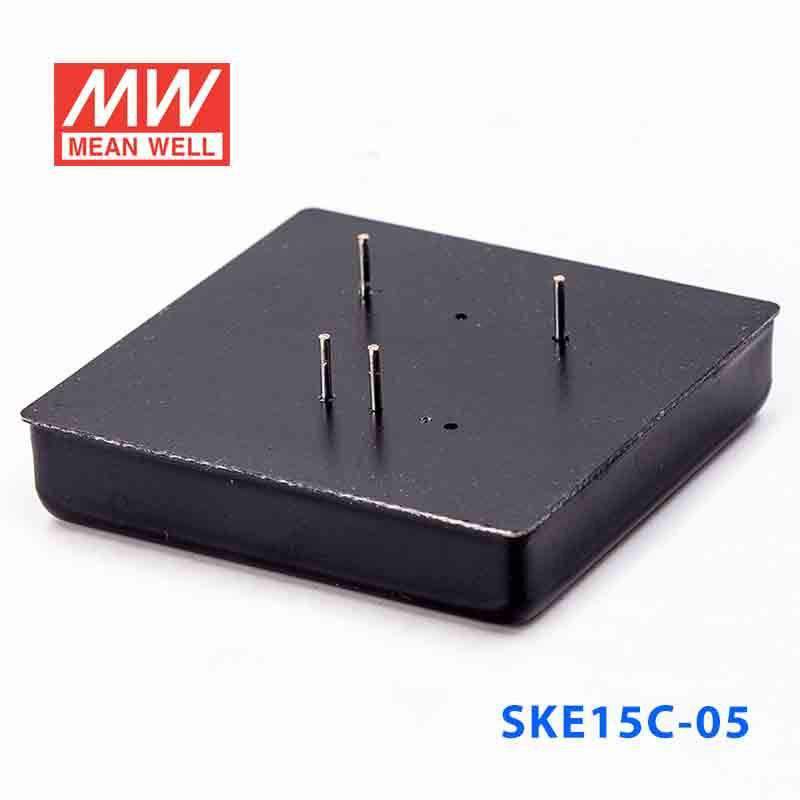

Mean Well SKE15C-05 DC-DC Converter - 15W - 36~72V in 5V out
Description
Description
Features
| 2: 1 wide input range |
| 4: 1 wide input range (option) |
| 1000VDC I / O isolation |
| 3000VDC I / O isolation (option) |
| Built-in EMI filter |
| Protection: Short circuit / Overload |
| Cooling by free air convection |
| Six-sided shield metal case |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ± 2% (max.) |
| Line regulation | ± 0.3% (max.) |
| Load regulation | ± 0.5% (max.) @ 10 ~ 100% load |
| Overload protection | 160% to 250%, auto-recovery |
| Efficiency | 85% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I / O isolation voltage | 1000VDC (min.) |
| I / O isolation resistance | 100MQ(min.)@500VDC |
| Working temperature | -25 ~ + 71°C (refer to output derating curve) |
| Storage temperature | -25°C to + 105°C |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ± 0.03% / ° C (max.) |
| Dimension (LxWxH) (mm) | 2 "x 2" x 0.43 " |
| Case material | Six-sided shield metal case |
Specifications
Specifications
-
BrandMean Well
-
SeriesSKE Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.43 in
-
Weight0.14 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKE15C-05 to power a 5V industrial controller from a 36-72VAC source?
Yes. This converter is designed for 36-72VAC input and provides a constant 5V output at up to 3A, with 15W total power. That makes it suitable for 5V control electronics, embedded boards, and similar low-voltage industrial devices within those limits.
Is the SKE15C-05 suitable for 5V communication modules or industrial embedded systems on higher-voltage AC input?
It can be a good fit when the equipment needs 5V constant-voltage power and the available source is within 36-72VAC. The 3A output capacity and 15W power rating support a range of lower-power 5V industrial electronics.
Can this model be used for compact 5V panel electronics in automation equipment?
Yes, if the panel electronics require regulated 5V output and stay within 3A and 15W. Its 50.8 × 50.8 × 11.0 mm dimensions and 0.065 kg weight also make it practical where internal space is limited.
Is the SKE15C-05 appropriate for OEM designs that need 5V DC from a 36-72VAC input range?
Yes. The main distinction of this model is its 36-72VAC input range combined with constant 5V output, so it fits OEM systems built around that AC window. It is intended for regulated 5V loads up to 3A and 15W.
What is the difference between the SKE15C-05 and the other SKE15C versions?
All SKE15C versions here are 15W converters with 36-72VAC input, the same 50.8 × 50.8 × 11.0 mm size, and the same -25°C to +71°C operating range. The output options are 5V at 3A for SKE15C-05, 12V at 1.25A for SKE15C-12, 15V at 1A for SKE15C-15, and 24V at 625A for SKE15C-24.
Can the SKE15C-05 be used in hot or cold industrial environments?
It is rated for operation from -25°C to +71°C. That supports use across a broad indoor industrial temperature range, but no IP rating is listed for exposed outdoor conditions.
