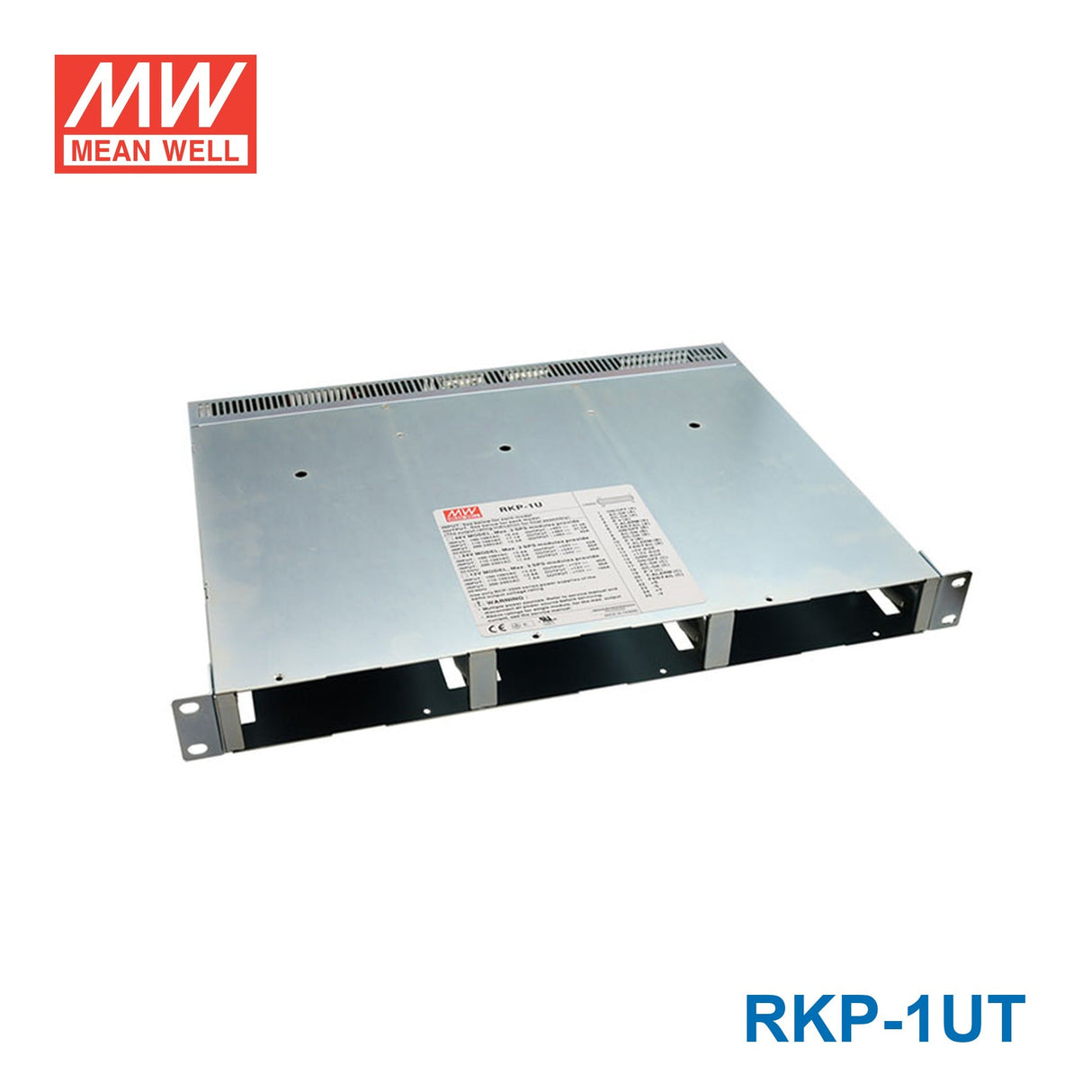

Mean Well RKP-1UT AC-DC 19" Rack for 3 Units of RCP-2000 with Terminal Block Input Connection
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RKP-1UT AC-DC 19" Rack for 3 Units of RCP-2000 with ...
The RKP is a 6000W Mean Well power converter.
Key Features
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over temperature
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRCP Series
-
MaterialMetal
-
Warranty3 Year
-
Length18.9 in
-
Width13.78 in
-
Height1.73 in
-
Weight10.36 lb
::specification::
Frequently Asked Questions
What is the Mean Well RKP-1UT used for?
The RKP-1UT is a 1U 19-inch rack designed to house up to three Mean Well RCP-2000 power supply modules. In that configuration, it supports high-power rack-mount AC-DC power systems with total capacity up to 6000W using active current sharing.
How many power supply modules does the RKP-1UT support?
This model is designed for three RCP-2000 units in a single 1U rack format. That makes it suitable for applications that need a compact high-power rack solution built around multiple 2000W modules.
What rack format does the RKP-1UT use?
The RKP-1UT uses a 1U profile in a standard 19-inch rack width. Its low-profile form factor helps fit high-power capacity into space-constrained rack environments.
What input range is supported by the RKP-1UT platform?
According to the listed specifications, the RKP-1UT platform supports a universal AC input range of 90 to 264VAC and a DC input range of 127 to 370VDC. This broad input range is useful for industrial and B2B environments that may operate across different power standards.
Is the RKP-1UT suitable for demanding industrial environments?
The published operating temperature range is -40°C to 70°C, which supports use in challenging environments. Buyers should still confirm the full system design, enclosure conditions, and thermal profile for their specific application.
Does the RKP-1UT support hot-swappable operation?
Yes, the product description states that it supports hot swap or hot plug operation. That can be valuable in systems where uptime and serviceability are important considerations.
Does the RKP-1UT provide monitoring or control interface support?
Yes, the description lists built-in PMBus protocol support. For buyers comparing rack power platforms, that is relevant when remote monitoring or power system management is part of the project requirement.
