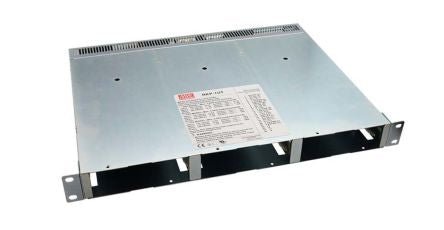

Mean Well RKP-1UI AC-DC 19" Rack Shelf for 3 Units of RCP-2000 with IEC320-C14 input socket

1U low profile, fitting 3x2000W modules, up to 6000W with active current sharing, output voltage programmable, support hot swap
SKU:
RKP-1UI

$432.54 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Universal AC input/Full range
1U profile 19" rack shelf, fitting three 2000W modules up to 6000W with active current sharing
Output voltage programmable
Support hot swap(hot plug)
Built-in PMBus protocol
5 years warranty



General Specification

AC input voltage range 90~264VAC; 127~370VDC
Leakage current <3.5mA / 230VAC
Auxiliary power 5V@0.3A, 12V@0.8A
Withstand voltage I/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 0.7KVDC
Working temperature -30~+70ºC (refer to output derating curve)
Safety standards UL62368-1, CSA C22.2 , TUV EN62368-1 approved
EMC standards EN55032 class A, EN61000-4-2,3,4,5,6,8,11
Case No 959A
Dimension (LxWxH) (mm) Rack 350.8*482.6*44(with mounting bracket); 350.8*440*44(without mounting bracket)
Packing 1pcs/14.1Kg

Specifications

  • Brand
    Mean Well
  • Series
    RCP Series
  • Material
    Metal
  • Warranty
    3 Year
  • Length
    18.9 in
  • Width
    13.78 in
  • Height
    1.73 in
  • Weight
    31.09 lb

File Downloads

::specification::
