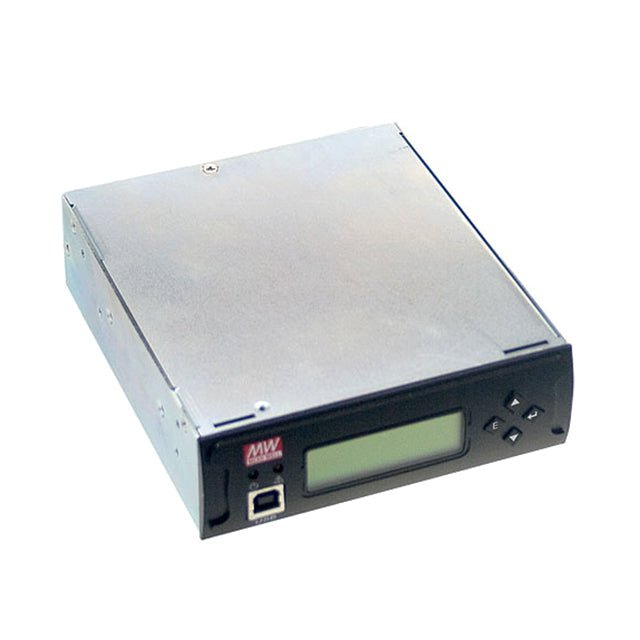

Mean Well RKP-CMU1 Power and Control Monitor System for RCP-2000 Series

1U low profile, windows-based PC communication software, 4 user programmable relay outputs
SKU:
RKP-CMU1

$295.75 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

1U profile 19-inch rack shelf mountable
Front panel LCD and buttons for on-site service without PC
USB-, RS-232, or Ethernet interface for PC connection locally or remote monitoring and control via GSM modem
Alarm/event log with time and date
Windows-based PC communication software
Easy wire connections on the rear side
4 user programmable relay outputs for traditional remote monitoring or warning
5 years warranty



General Specification

AC input voltage range 12~15VDC
Auxiliary power 10.8 ~ 13.2V
Withstand voltage O/P-FG:0.7KVDC; I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.7KVDC
Working temperature -25~+70ºC (refer to output derating curve)
Safety standards EAC TP TC 004 approved, design refer to TUV BS EN/EN62368-1; UL62368-1, CSA C22.2 No. 62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved
EMC standards EN55032 class A, EN61000-4-2,3,4,5,6,8,11
Case No 959A
Dimension (LxWxH) (mm) 147.5*127*41mm(RKP-CMU1); 350.8*483.6*44mm(RKP-1U-CMU1)
Packing 16pcs/13.8Kg

Specifications

  • Brand
    Mean Well
  • Series
    RCP Series
  • Material
    Metal
  • Operating Temperature
    -25°C~70°C
  • Warranty
    3 Year
  • Length
    18.9 in
  • Width
    13.78 in
  • Height
    1.73 in
  • Weight
    1.76 lb

File Downloads

::specification::
