What industrial control systems commonly use the RSP-320-24?

The RSP-320-24 delivers 24V at 13.4A (320W), the standard DC bus voltage for a wide range of PLCs, HMI panels, and industrial sensors. Its compact 1U footprint (215.0 × 115.0 × 30.0 mm) fits standard DIN-rail or rack enclosures.

What is the temperature operating range for the RSP-320-24?

The RSP-320-24 is rated for -30°C to +70°C, suitable for cold-climate indoor installations. It carries UL, CE, TÜV, CB, CCC, BSMI, and EAC certifications with a 3-year warranty.

How does the RSP-320-24 compare to the RSP-320-27 and RSP-320-36 at higher voltages?

All three share the same 215.0 × 115.0 × 30.0 mm chassis and 88-264VAC input. The RSP-320-24 outputs 320W at 13.4A, the RSP-320-27 provides 320W at 11.9A, and the RSP-320-36 provides 320W at 8.9A. Current decreases as voltage increases while wattage stays consistent.

Does the RSP-320-24 include power factor correction?

Yes. The RSP-320-24 includes built-in active PFC, which reduces reactive power draw and meets common power quality requirements in commercial and industrial installations.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

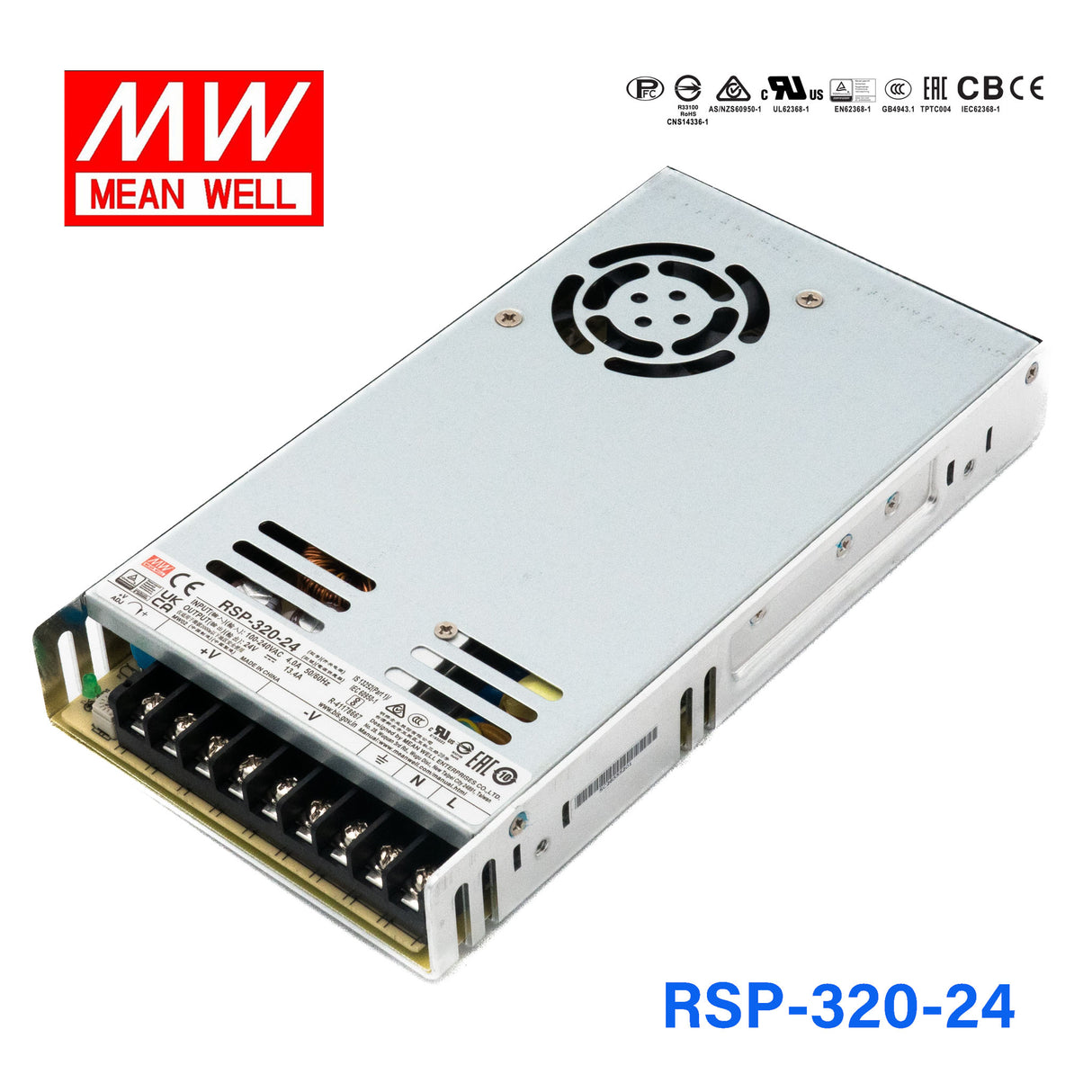

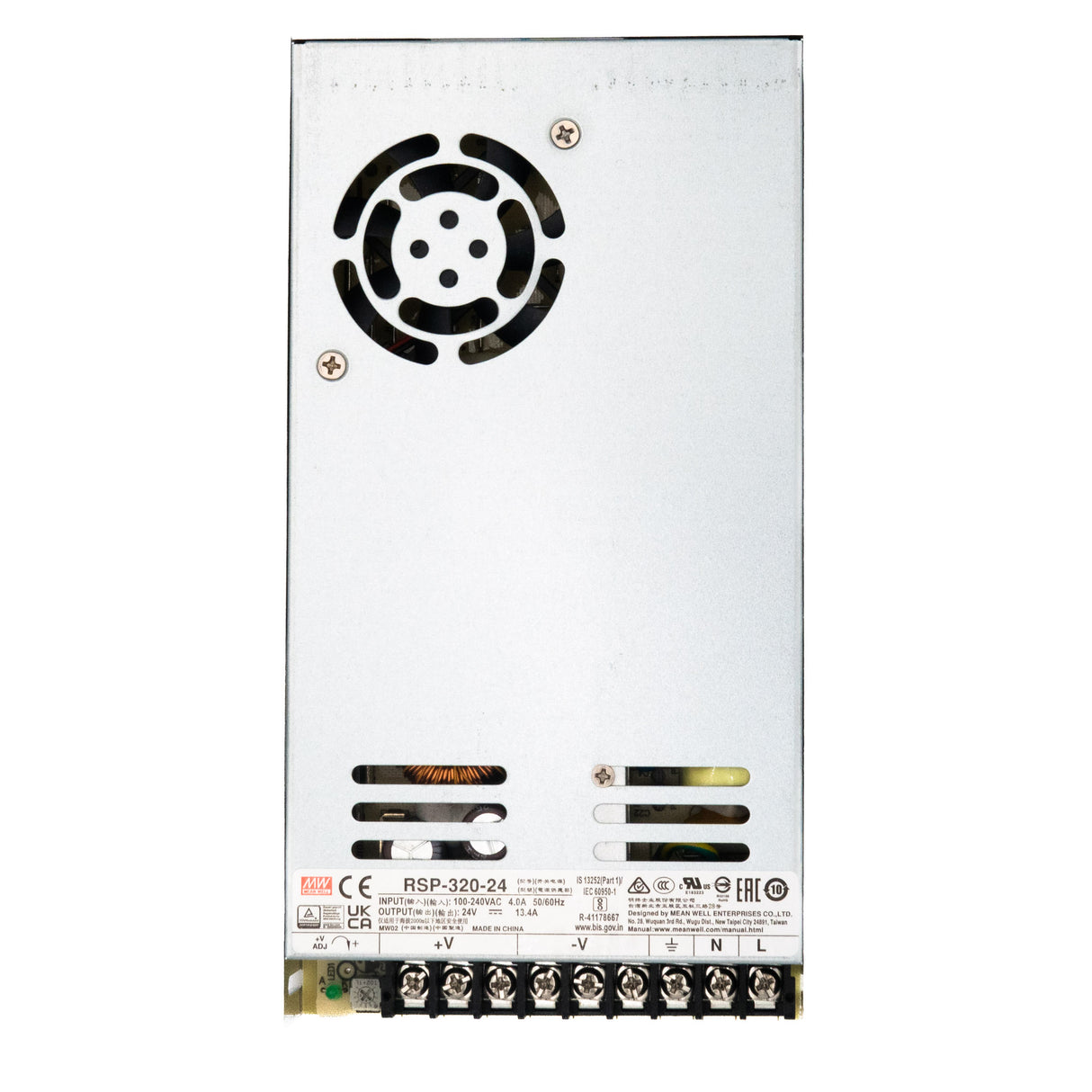

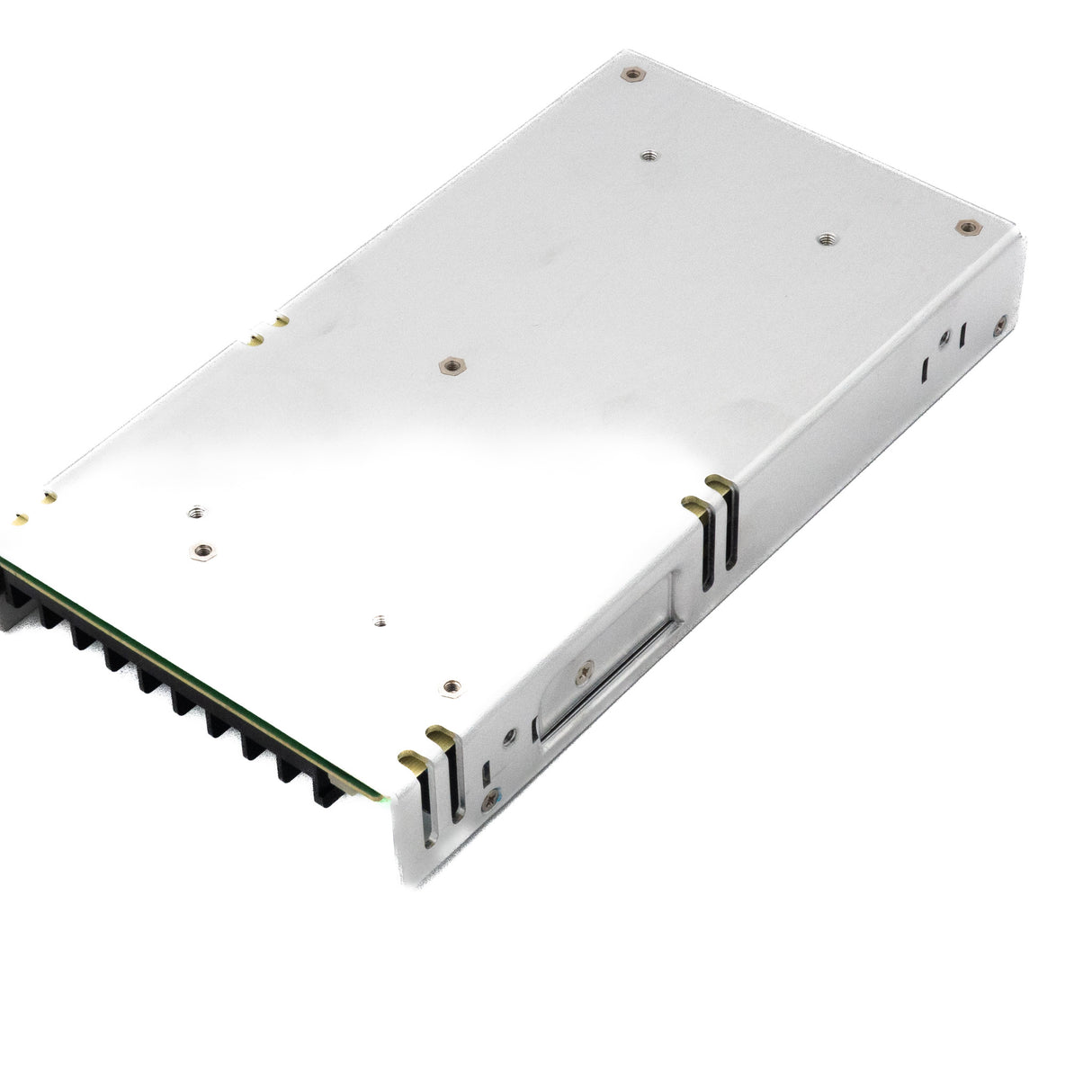

Mean Well RSP-320-24 Power Supply 320W 24V

Name: Mean Well RSP-320-24 Power Supply 320W 24V
Brand: Mean Well
SKU: RSP-320-24
Price: 56.13 USD
Availability: InStock

1U low profile with active PFChigh efficiency

SKU:

RSP-320-24

$56.13 USD ~~$59.04~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The RSP-320 is a 320W Mean Well power converter (input range: 88~264VAC).

Key Features

✓ Input voltage range: 88~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: AS/NZS 60950.1
✓ 3 years warranty

Brand

Mean Well
Series

RSP Series
Power Rating

320 Watt
Output Voltage

24 Volt
Rated Current

13.4 Ampere
Input Voltage

88V~264V
No of Output

1
Standards Met

BSMI,CB,CCC,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

8.46 in
Width

4.53 in
Height

1.18 in
Weight

1.98 lb
