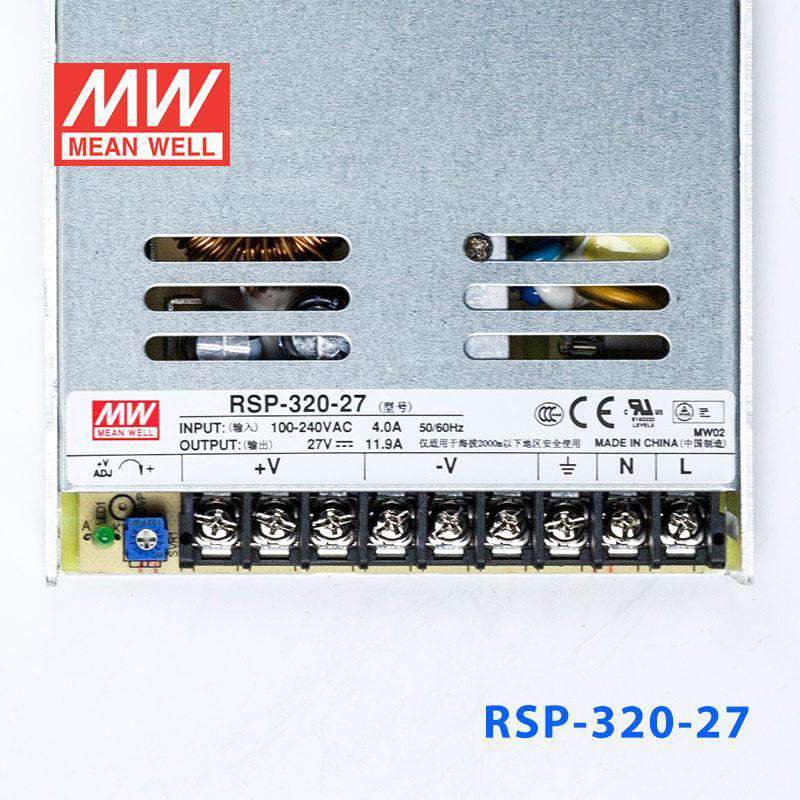

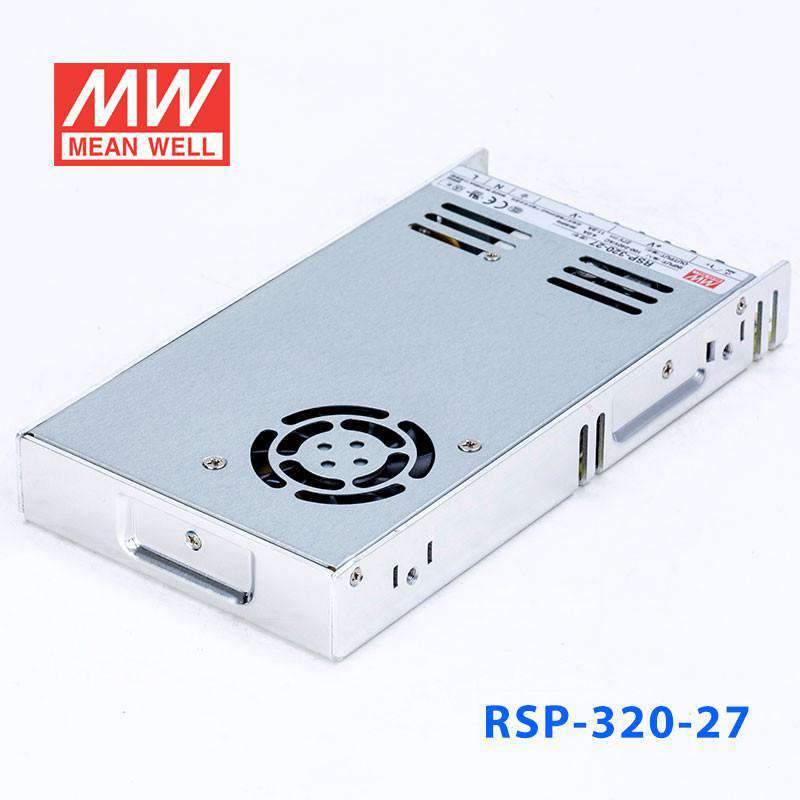

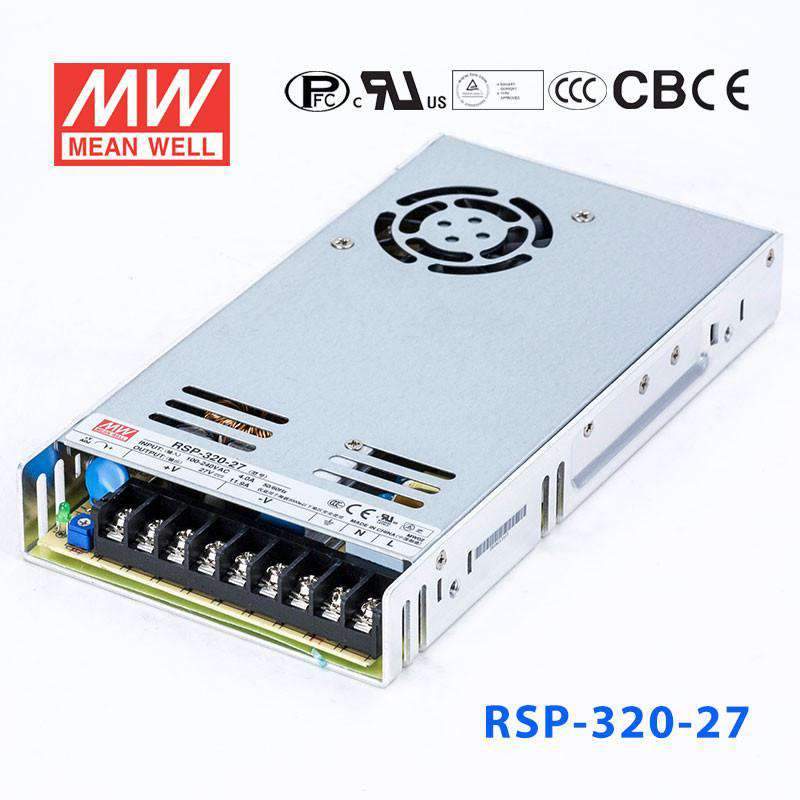

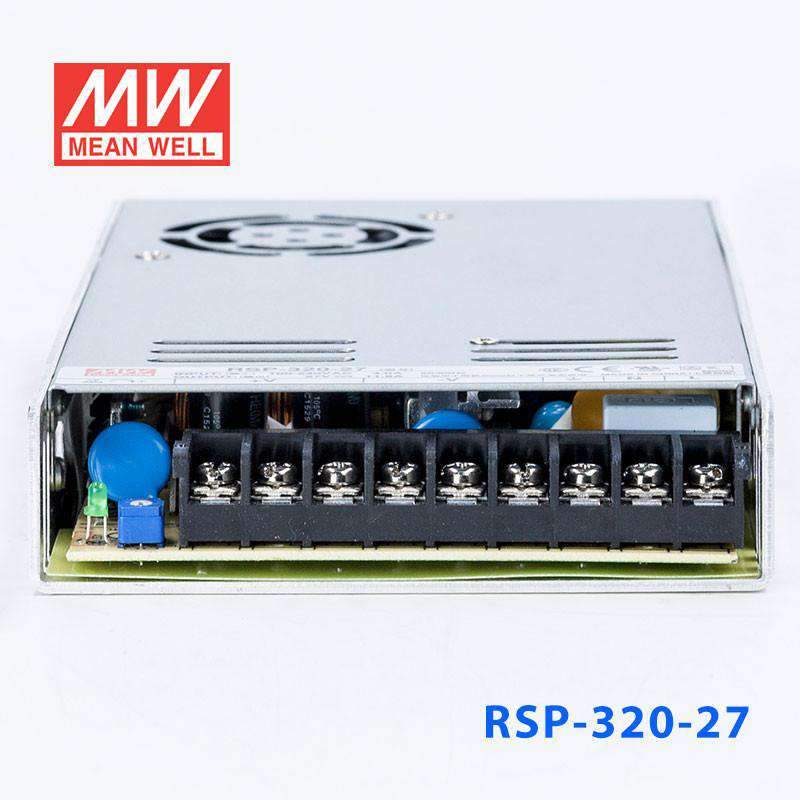

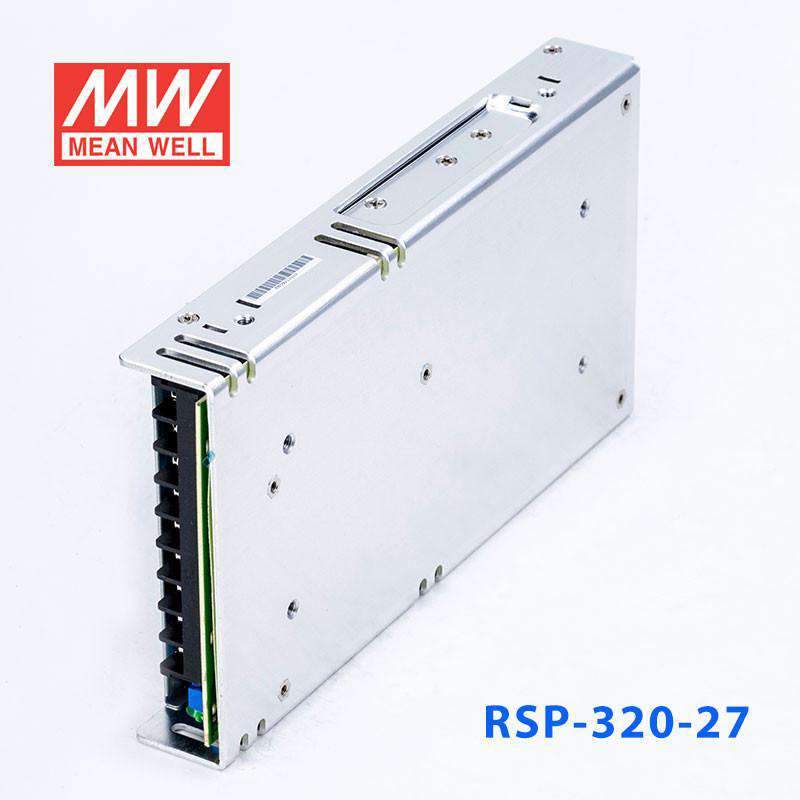

Mean Well RSP-320-27 Power Supply 320W 27V
The RSP-320 is a 320W Mean Well power converter (input range: 88~264VAC).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 60950.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating320 Watt
-
Output Voltage27 Volt
-
Rated Current11.9 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.98 lb
::specification::
Frequently Asked Questions
What is the RSP-320-27 used for in automation or embedded systems?
The RSP-320-27 delivers 27V at 11.9A (320W), a voltage used by certain stepper motor drives, specialized industrial sensors, and embedded systems designed for a 24-28V nominal bus. Its 1U form factor fits standard panel and rack installations.
Can the RSP-320-27 operate in cold storage facilities?
The RSP-320-27 is rated for -30°C to +70°C ambient operation, making it suitable for indoor cold-storage environments. It is not rated for outdoor or wet-location use.
How does the RSP-320-27 compare to the RSP-320-24 and RSP-320-36?
All three are 1U units with the same 215.0 × 115.0 × 30.0 mm chassis and 88-264VAC input. The RSP-320-24 provides 320W at 13.4A, the RSP-320-27 provides 320W at 11.9A, and the RSP-320-36 provides 320W at 8.9A. All maintain approximately 320W output; current rating decreases as output voltage increases.
What certifications does the RSP-320-27 hold?
The RSP-320-27 carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications and includes a 3-year warranty. The unit weighs 0.9 kg.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RSP-320 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RSP-320-48 Power Supply 320W 48V | 320W | 48V | 6.7A | Indoor | $55.98 | View |
| Mean Well RSP-320-5 Power Supply 300W 5V | 300W | 5V | 60A | Indoor | $53.58 | View |
| Mean Well RSP-320-12 Power Supply 320W 12V | 320.4W | 12V | 26.7A | Indoor | $59.04 | View |
| Mean Well RSP-320-15 Power Supply 320W 15V | 320W | 15V | 21.4A | Indoor | $59.04 | View |
| Mean Well RSP-320-24 Power Supply 320W 24V | 320W | 24V | 13.4A | Indoor | $56.11 | View |
| Mean Well RSP-320-13.5 Power Supply 320W 13.5V | 320W | 13.5V | 23.8A | Indoor | $59.04 | View |
