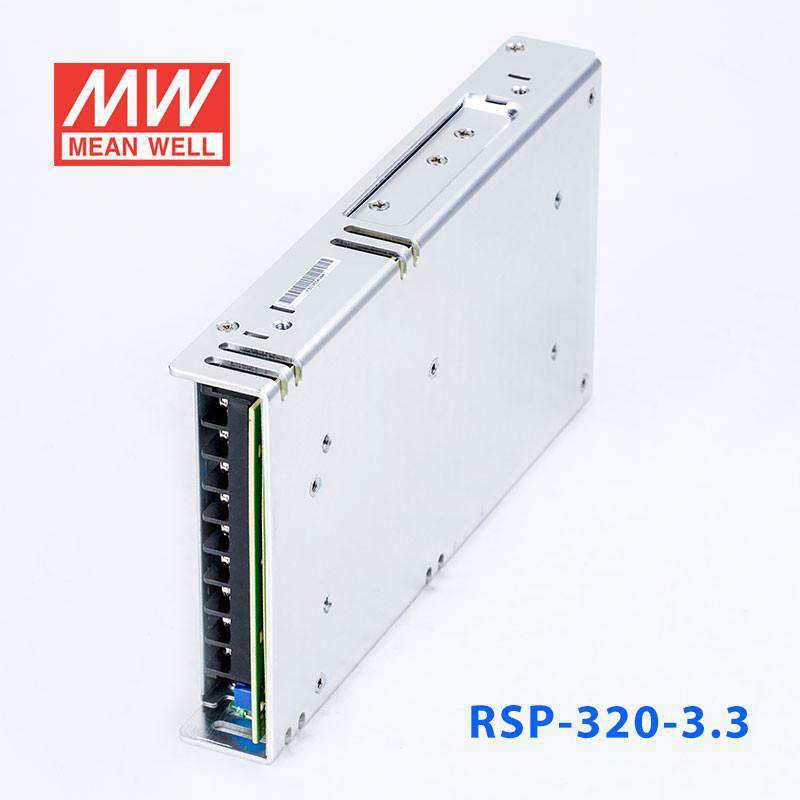

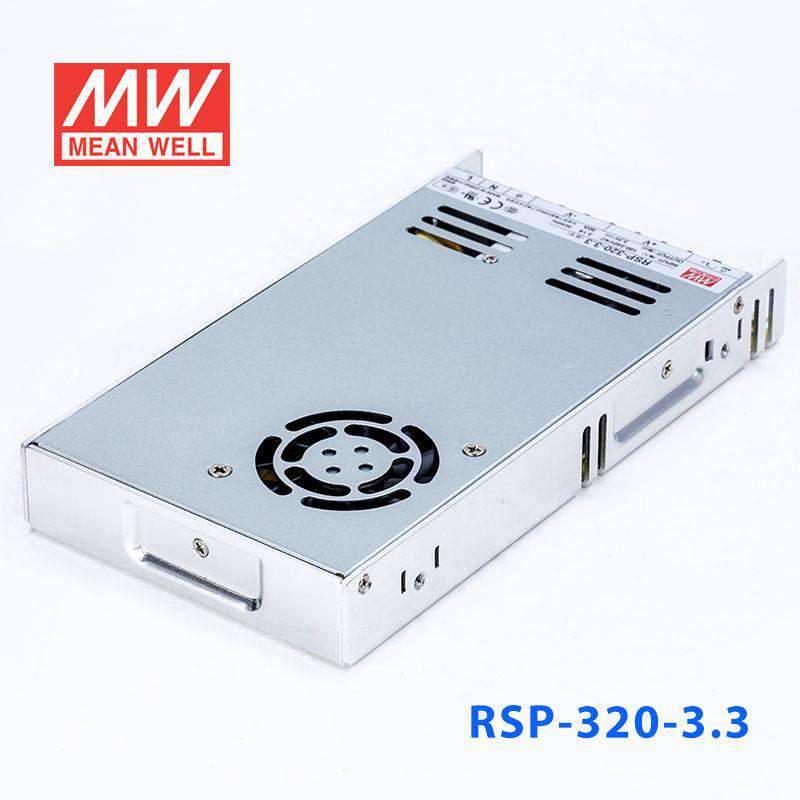

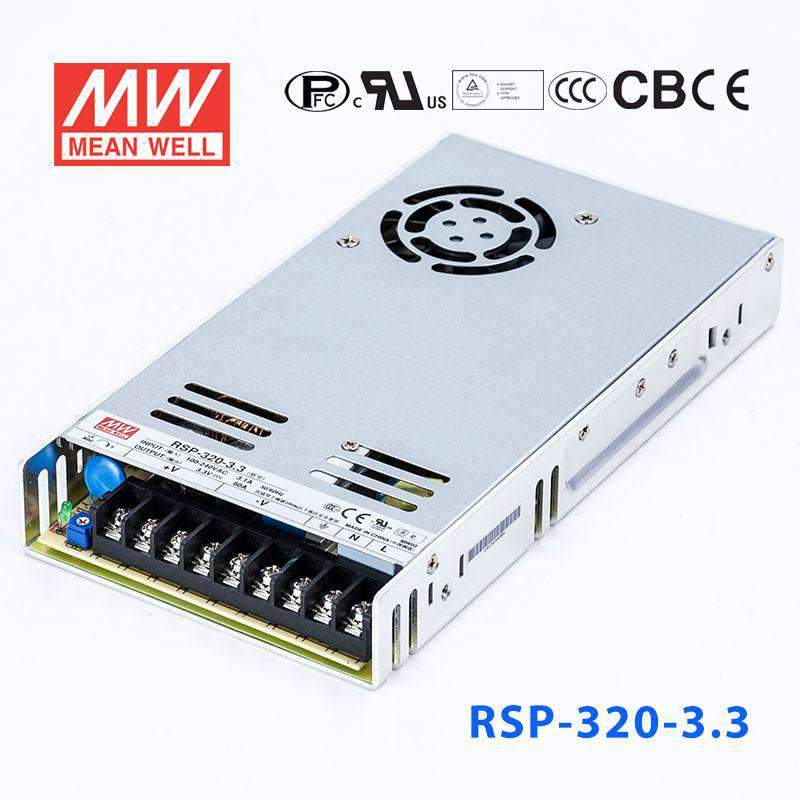

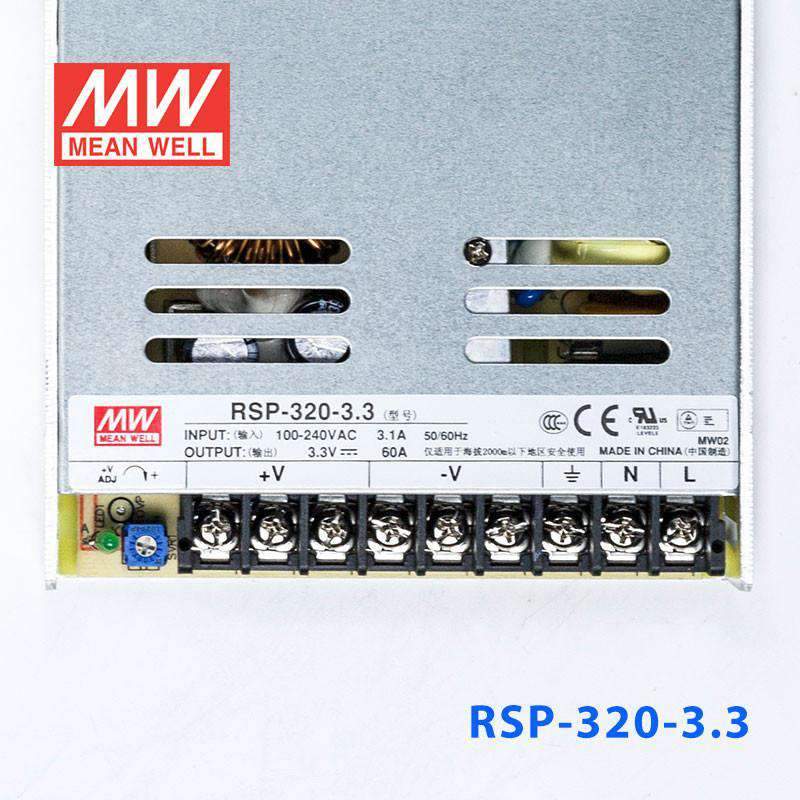

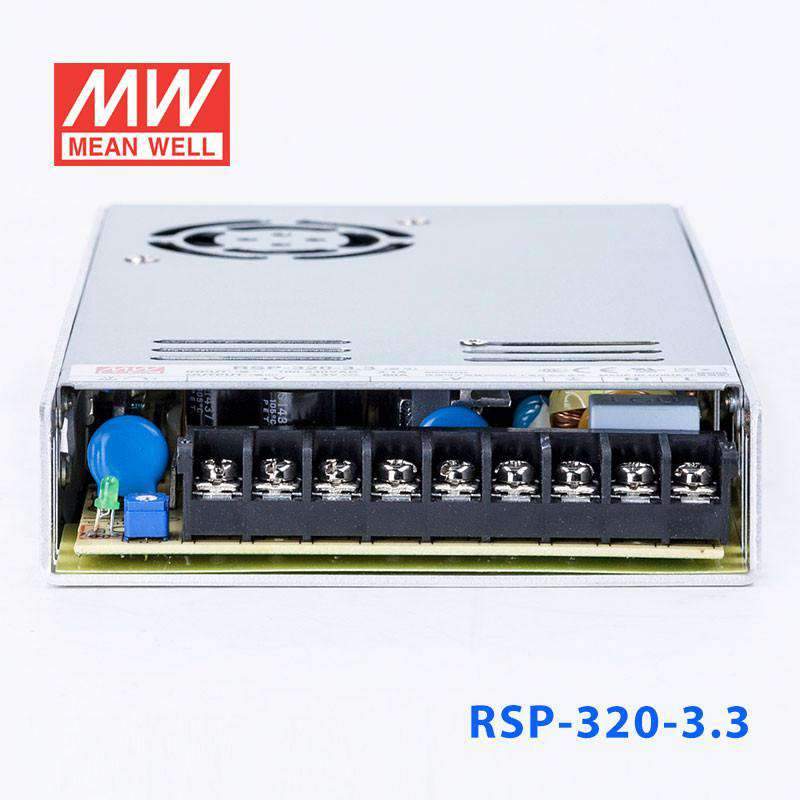

Mean Well RSP-320-3.3 Power Supply 198W 3.3V
The RSP-320 is a 320W Mean Well power converter (input range: 88~264VAC).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 60950.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating198 Watt
-
Output Voltage3.3 Volt
-
Rated Current60 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.98 lb
::specification::
Frequently Asked Questions
What systems require a 3.3V, high-current supply like the RSP-320-3.3?
The RSP-320-3.3 provides 3.3V at 60A (198W), a rail commonly required for FPGA I/O banks, DDR memory subsystems, and logic-level power on embedded computing boards. Its 1U profile enables integration into compact rack or panel enclosures.
What is the operating temperature range of the RSP-320-3.3?
The RSP-320-3.3 operates from -30°C to +70°C ambient. It is designed for indoor enclosed use and holds UL, CE, TÜV, CB, CCC, BSMI, and EAC certifications.
How does the RSP-320-3.3 compare to the RSP-320-2.5 and RSP-320-4?
The RSP-320-2.5 delivers 2.5V at 60A for 150W, the RSP-320-3.3 delivers 3.3V at 60A for 198W, and the RSP-320-4 delivers 4V at 60A for 240W. All three share the same chassis and 88-264VAC input. The RSP-320-3.3 offers the middle power level in this low-voltage group.
What is the actual rated power output of the RSP-320-3.3?
The RSP-320-3.3 is rated at 198W (3.3V × 60A). This is lower than the model-name designation of 320W because the low output voltage limits total power at the rated current.
