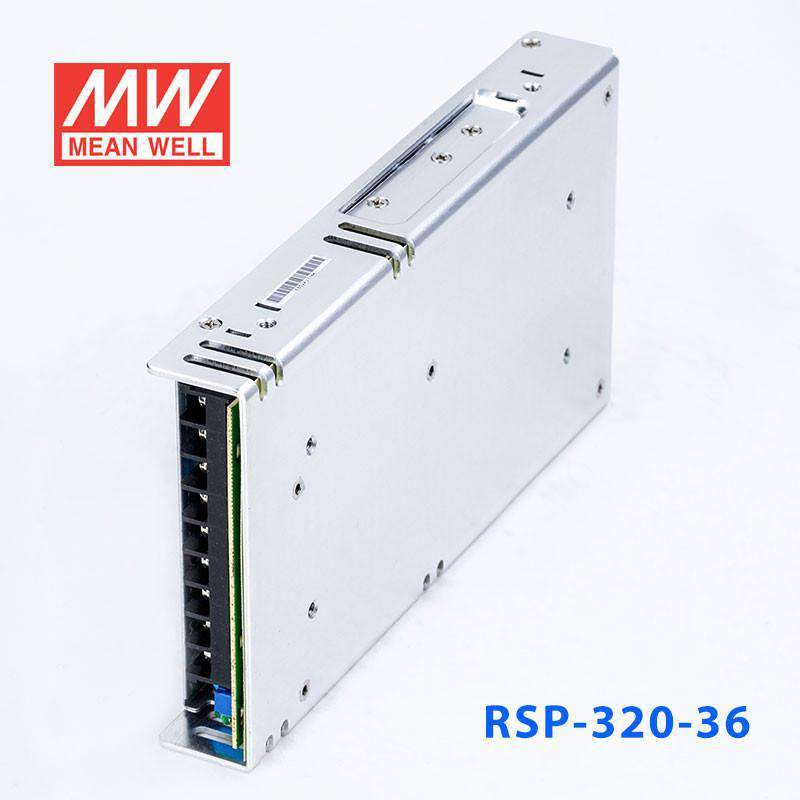

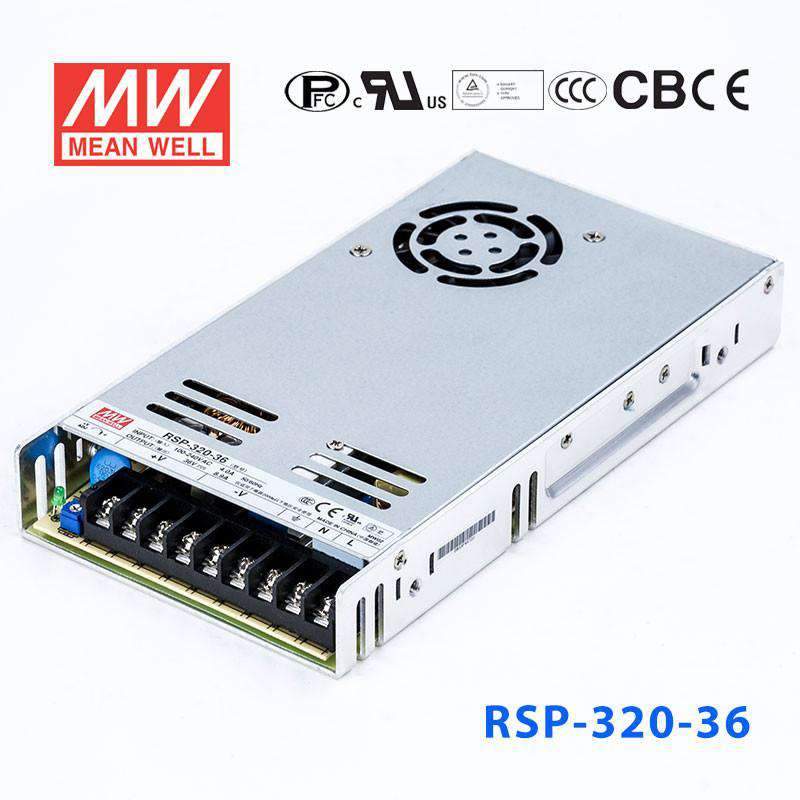

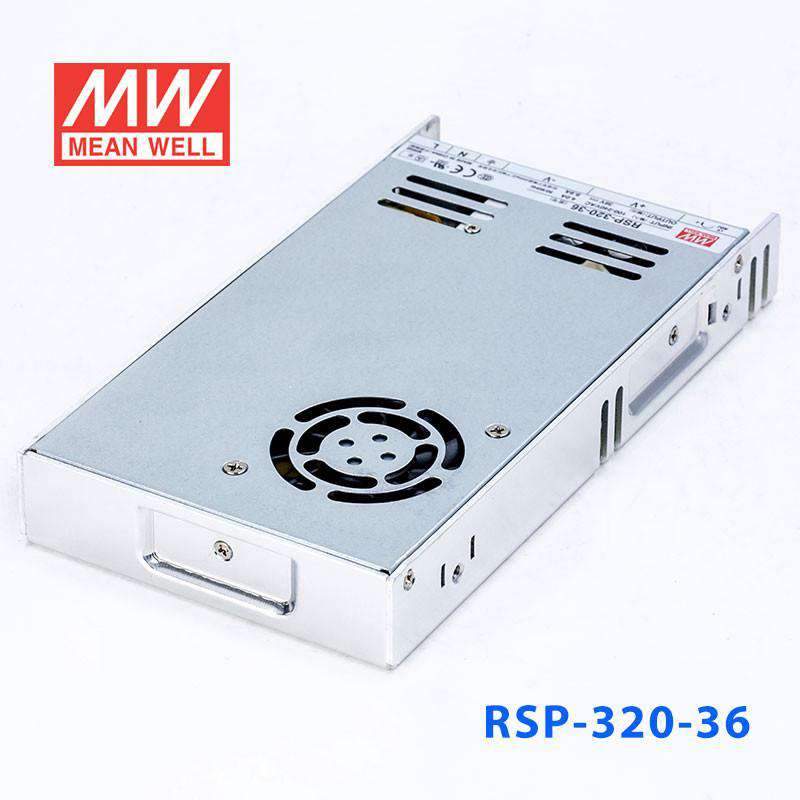

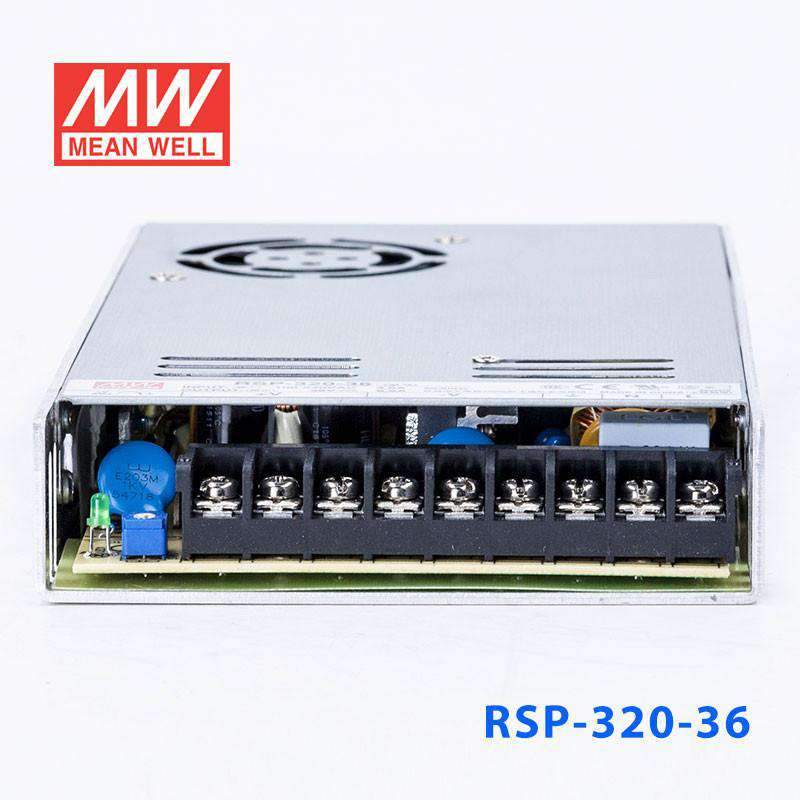

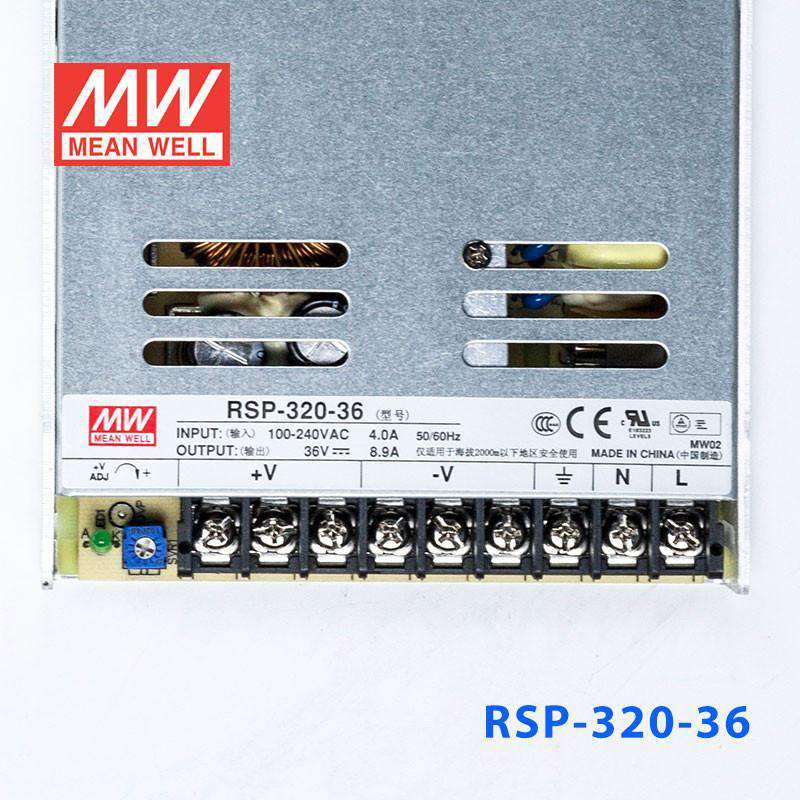

Mean Well RSP-320-36 Power Supply 320W 36V
The RSP-320 is a 320W Mean Well power converter (input range: 88~264VAC).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 60950.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating320 Watt
-
Output Voltage36 Volt
-
Rated Current8.9 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.98 lb
::specification::
Frequently Asked Questions
What equipment uses 36V DC that the RSP-320-36 can serve?
The RSP-320-36 provides 36V at 8.9A (320W), suitable for powering certain brushless DC motors, industrial field instruments, and relay-controlled actuator systems that specify a 36V nominal rail.
Is the RSP-320-36 suitable for low-temperature enclosed environments?
Yes. The RSP-320-36 operates from -30°C to +70°C, making it appropriate for cold-climate indoor enclosures. It is not rated for direct outdoor or wet-area use.
How does the RSP-320-36 compare to the RSP-320-27 and RSP-320-48 in the same series?
All three share the 215.0 × 115.0 × 30.0 mm form factor and 88-264VAC input. The RSP-320-27 provides 320W at 11.9A, the RSP-320-36 provides 320W at 8.9A, and the RSP-320-48 provides 320W at 6.7A. Current output decreases proportionally as voltage increases while total power stays near 320W.
Does the RSP-320-36 carry global safety certifications?
Yes. The RSP-320-36 is certified to BSMI, CB, CCC, CE, EAC, TÜV, and UL and includes a 3-year warranty. The unit weighs 0.9 kg.
