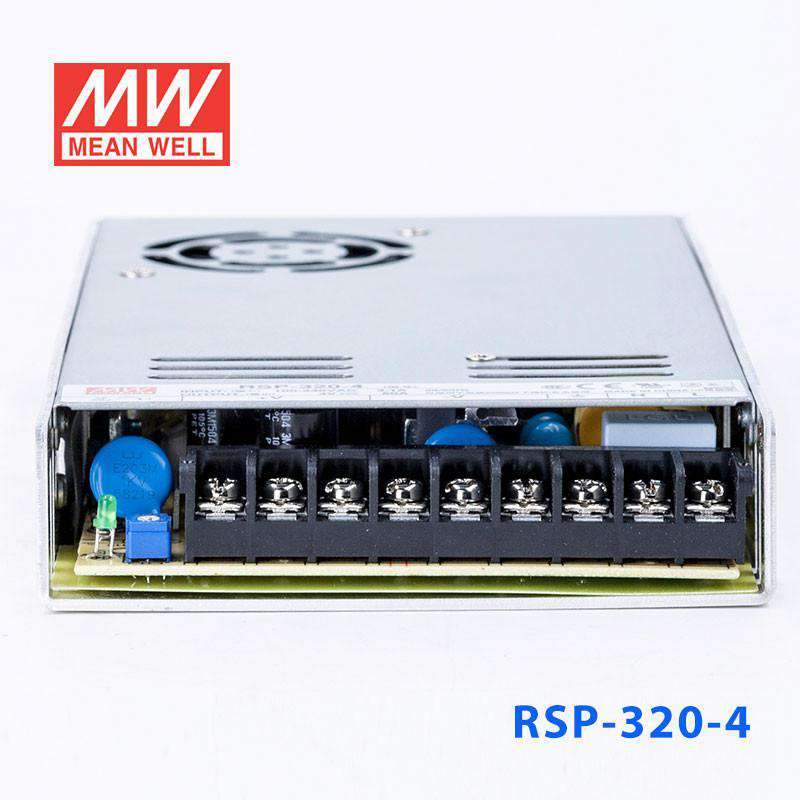

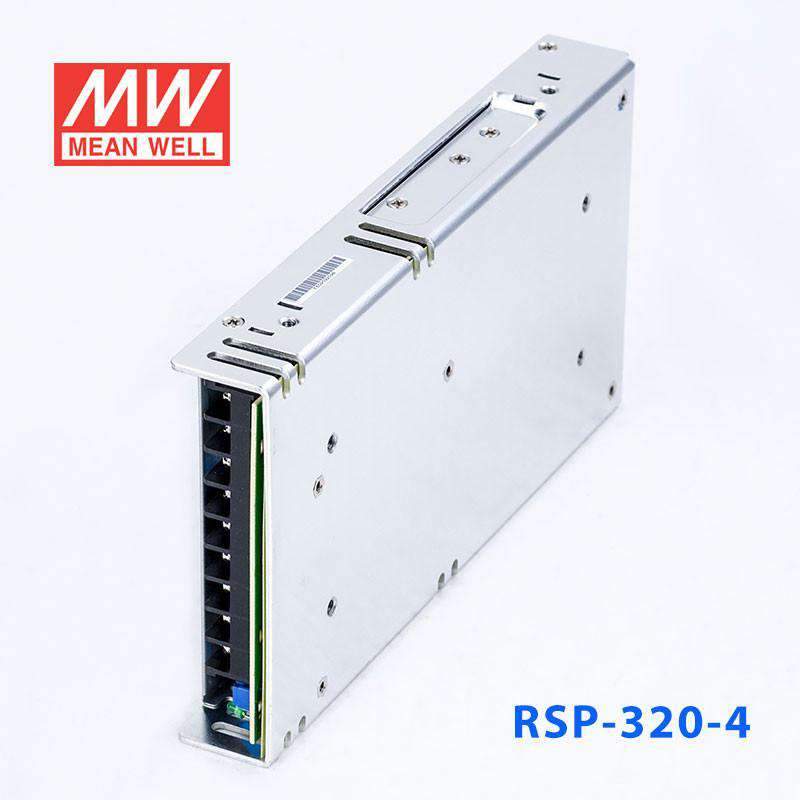

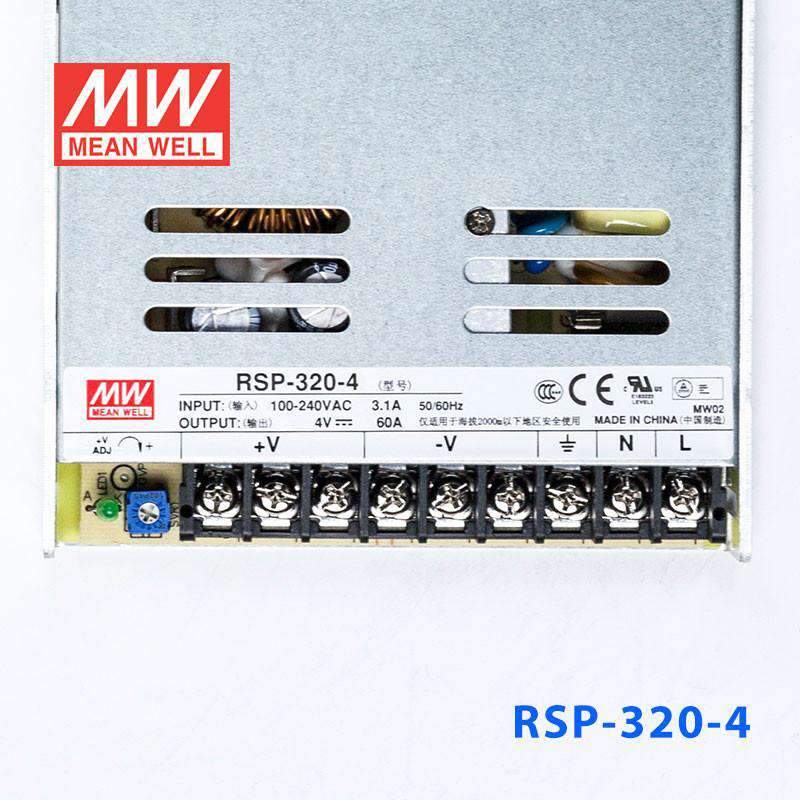

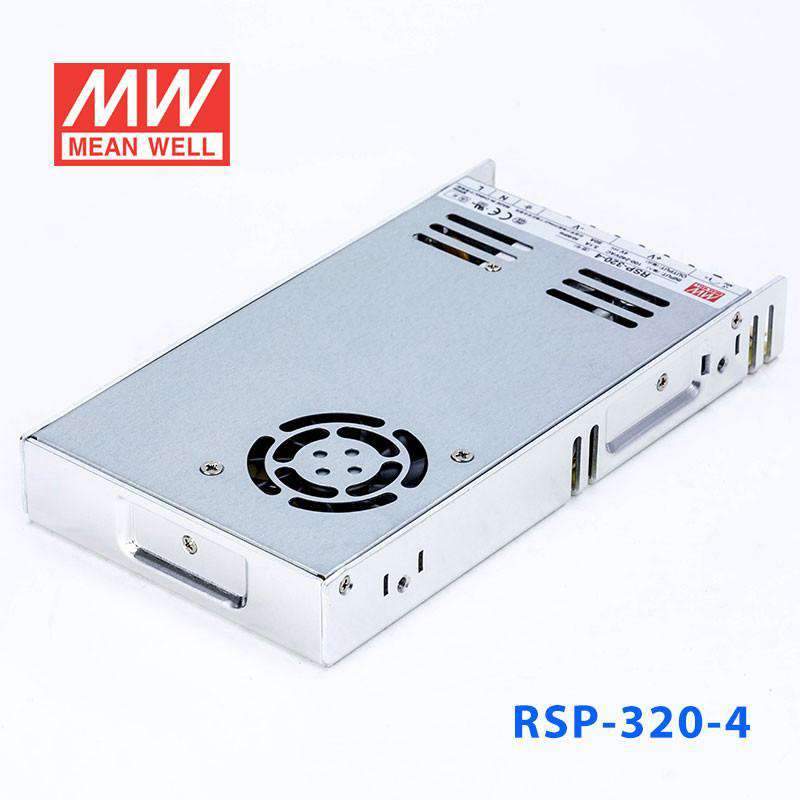

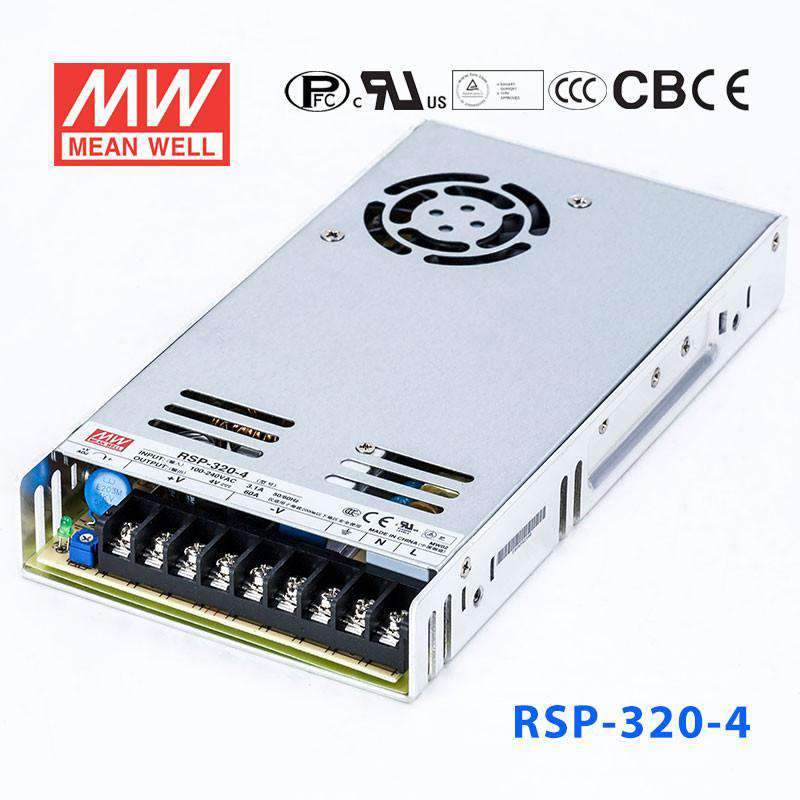

Mean Well RSP-320-4 Power Supply 240W 4V
The RSP-320 is a 320W Mean Well power converter (input range: 88~264VAC).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 60950.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating240 Watt
-
Output Voltage4 Volt
-
Rated Current60 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.98 lb
::specification::
Frequently Asked Questions
What applications commonly use a 4V, 60A power supply?
The RSP-320-4 delivers 4V at 60A (240W) and is suited for telecom signal processing boards, low-voltage bus converters, and embedded systems where a stable 4V rail is specified. The high current output at low voltage makes it appropriate for point-of-load applications in multi-rail rack systems.
What is the temperature range of the RSP-320-4?
The RSP-320-4 is rated for -30°C to +70°C ambient operation. It is intended for indoor enclosed installations and holds BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications.
How does the RSP-320-4 compare to the RSP-320-3.3 and RSP-320-5?
The RSP-320-3.3 provides 198W at 60A, the RSP-320-4 provides 240W at 60A, and the RSP-320-5 provides 300W at 60A — all sharing the same 215.0 × 115.0 × 30.0 mm chassis and 88-264VAC input. The RSP-320-4 sits between the two in total output power.
What is the rated power of the RSP-320-4?
The RSP-320-4 is rated at 240W (4V × 60A). Like other low-voltage RSP-320 variants, actual power is below the 320W series designation due to the low output voltage. It weighs 0.9 kg.
