What is the RSP-320-48 well-suited for in a 48V system?

The RSP-320-48 delivers 48V at 6.7A (320W), appropriate for powering PoE switches, small telecom equipment, and 48V DC bus subsystems in compact enclosures. Its 1U low-profile form factor (215.0 × 115.0 × 30.0 mm) supports tight rack or panel installations.

Does the RSP-320-48 operate in cold environments?

The RSP-320-48 is rated for -30°C to +70°C ambient, suitable for cold-climate indoor enclosures. It carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications and is not rated for outdoor use.

How does the RSP-320-48 compare to other RSP-320 high-voltage variants?

Within the RSP-320 series, the RSP-320-36 provides 320W at 8.9A and the RSP-320-48 provides 320W at 6.7A, both sharing the same 215.0 × 115.0 × 30.0 mm chassis and 88-264VAC input. The RSP-320-48 is the highest-voltage and lowest-current option in the RSP-320 line.

Does the RSP-320-48 accept universal AC input?

Yes. The RSP-320-48 accepts 88-264VAC, covering worldwide single-phase AC systems without manual switching. It includes built-in active PFC.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

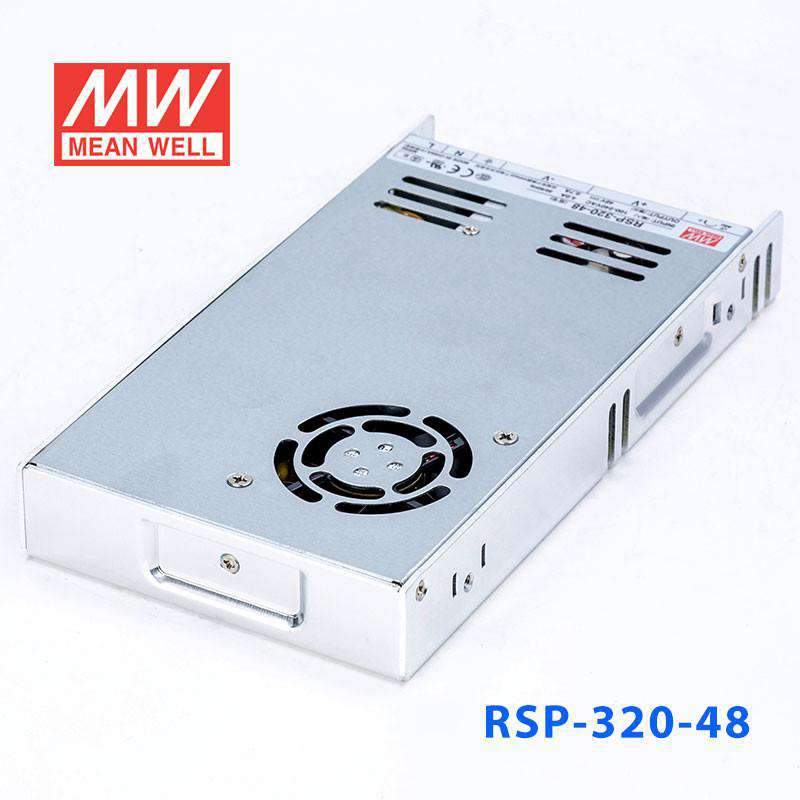

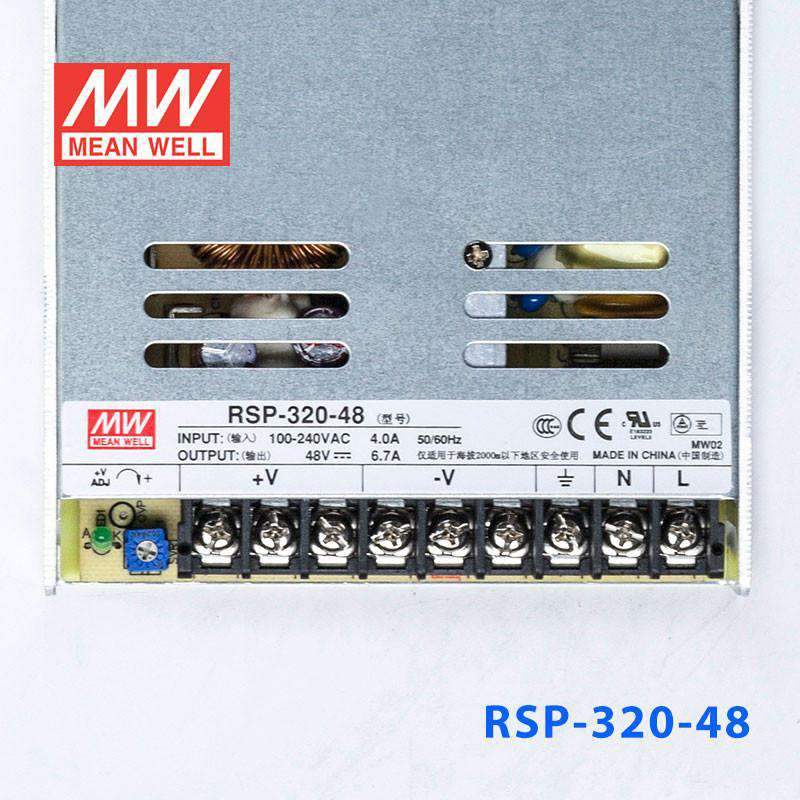

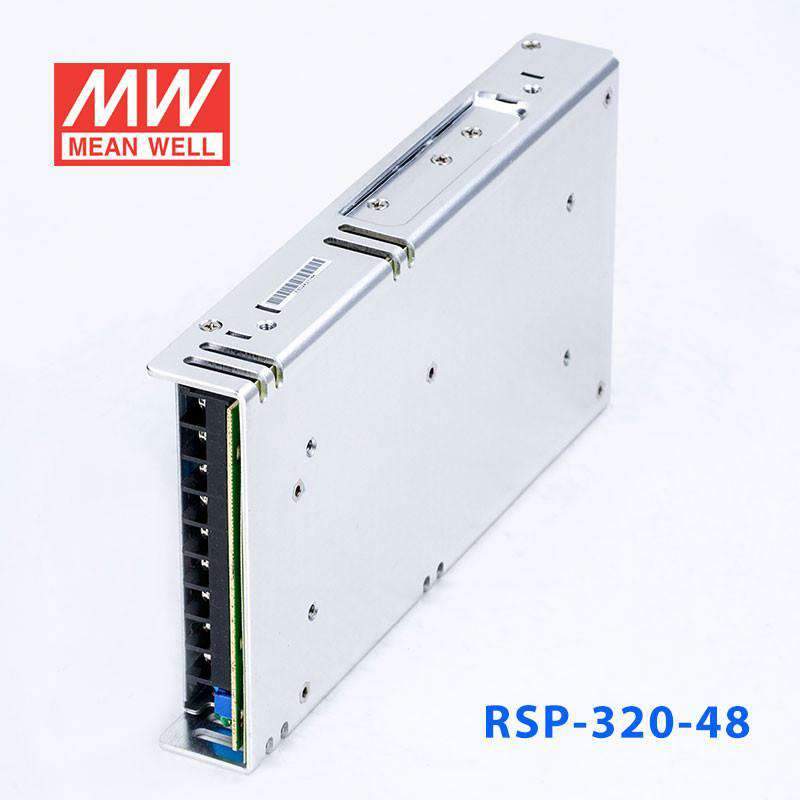

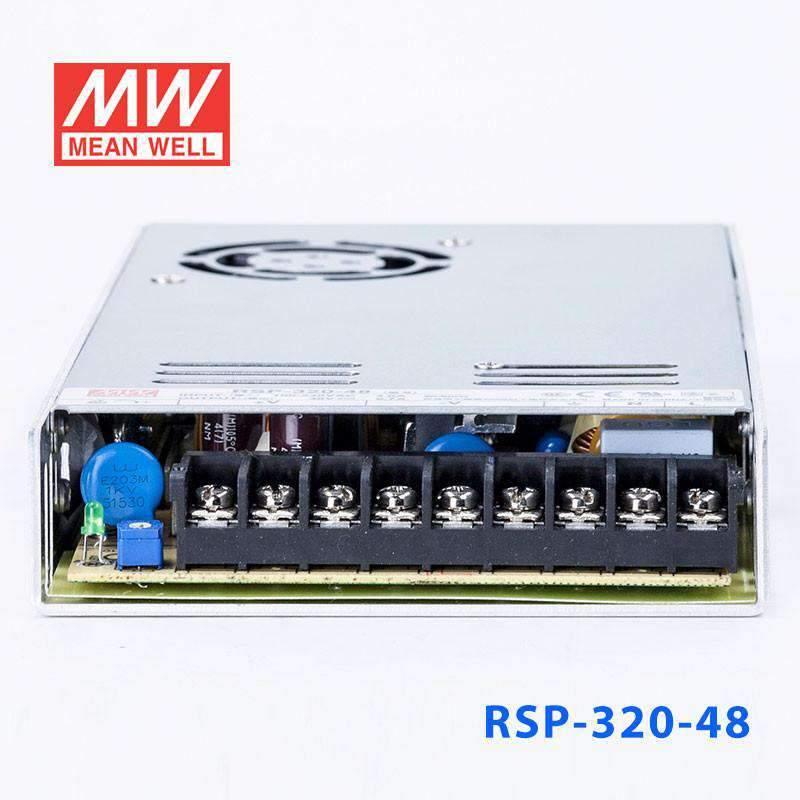

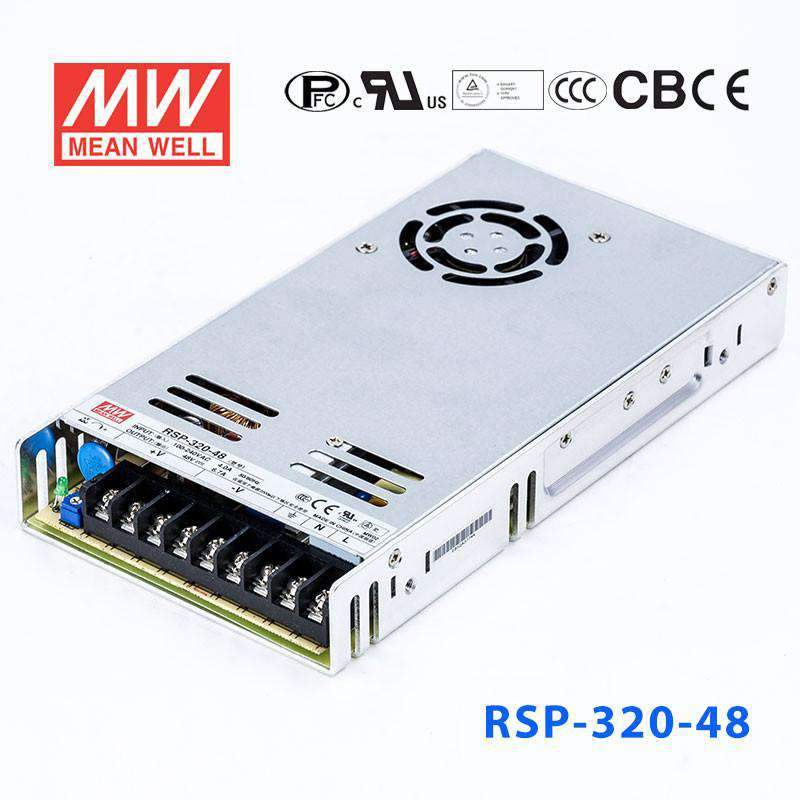

Mean Well RSP-320-48 Power Supply 320W 48V

Name: Mean Well RSP-320-48 Power Supply 320W 48V
Brand: Mean Well
SKU: RSP-320-48
Price: 55.98 USD
Availability: InStock

1U low profile with active PFChigh efficiency

SKU:

RSP-320-48

$55.98 USD ~~$59.04~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The RSP-320 is a 320W Mean Well power converter (input range: 88~264VAC).

Key Features

✓ Input voltage range: 88~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: AS/NZS 60950.1
✓ 3 years warranty

Brand

Mean Well
Series

RSP Series
Power Rating

320 Watt
Output Voltage

48 Volt
Rated Current

6.7 Ampere
Input Voltage

88V~264V
No of Output

1
Standards Met

BSMI,CB,CCC,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

8.46 in
Width

4.53 in
Height

1.18 in
Weight

1.98 lb
