Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

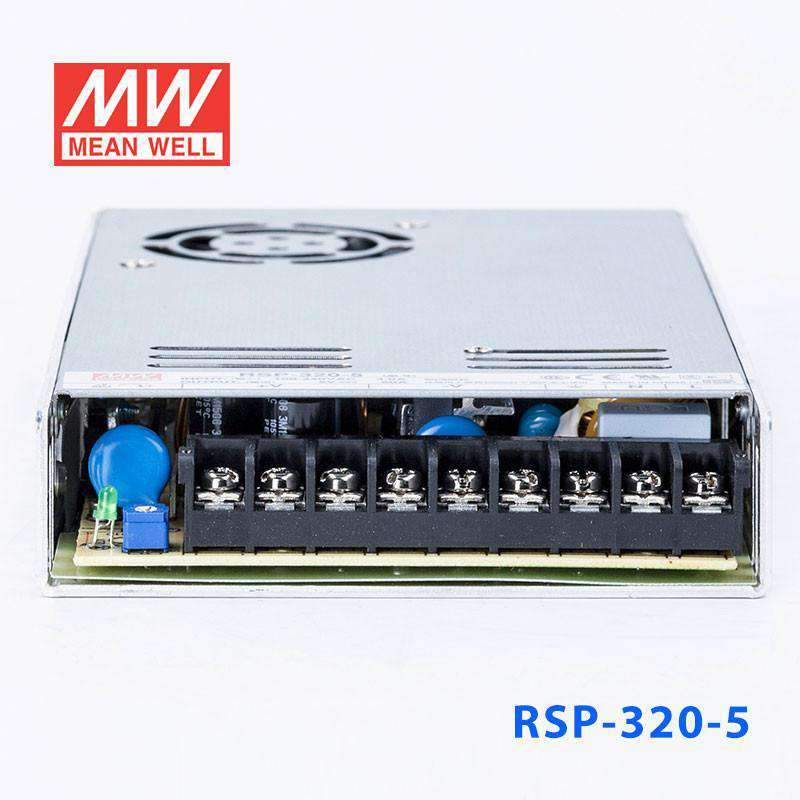

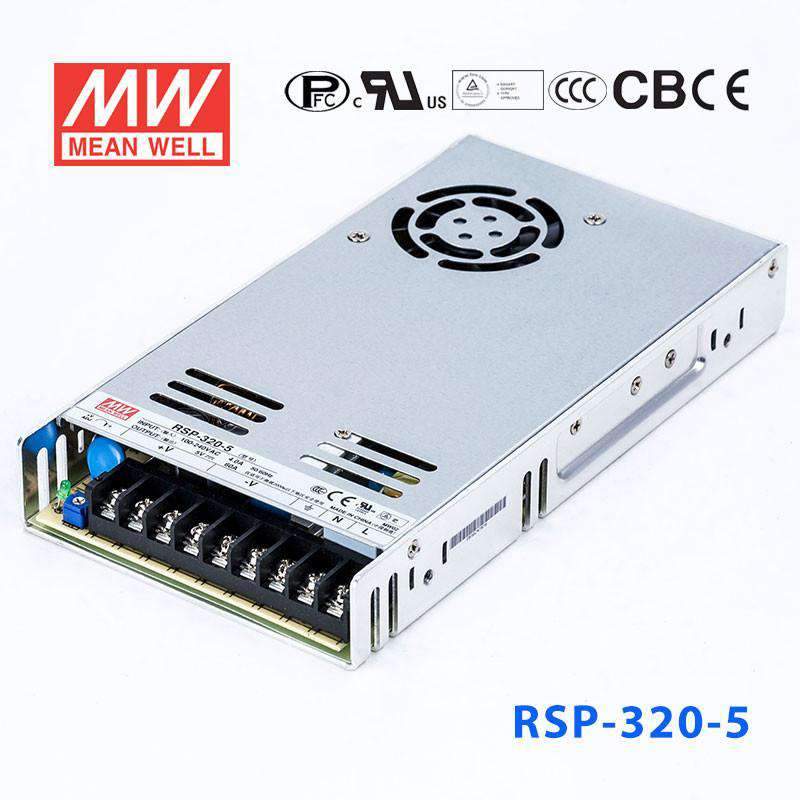

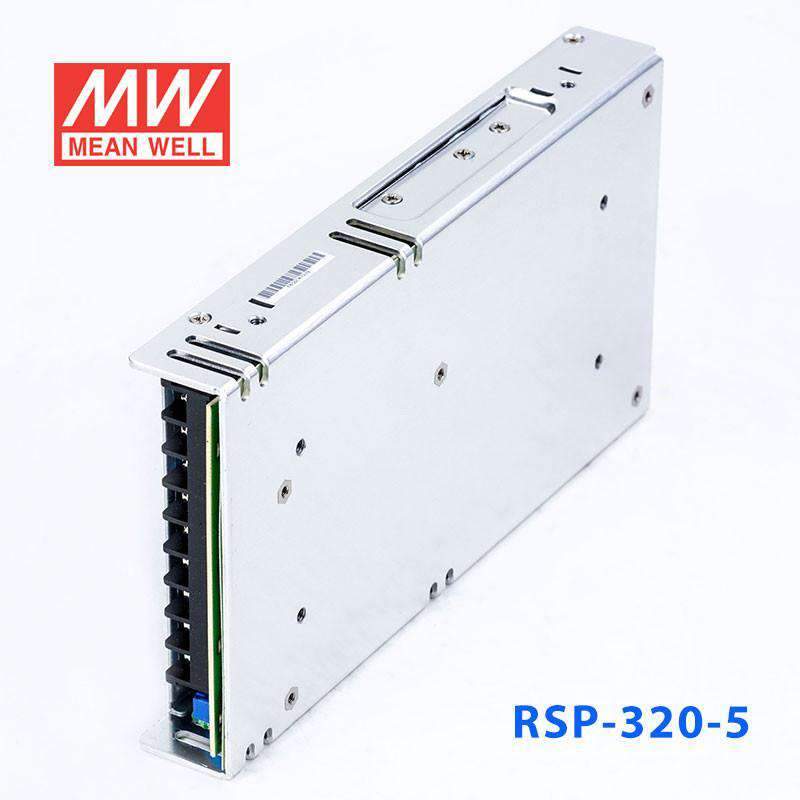

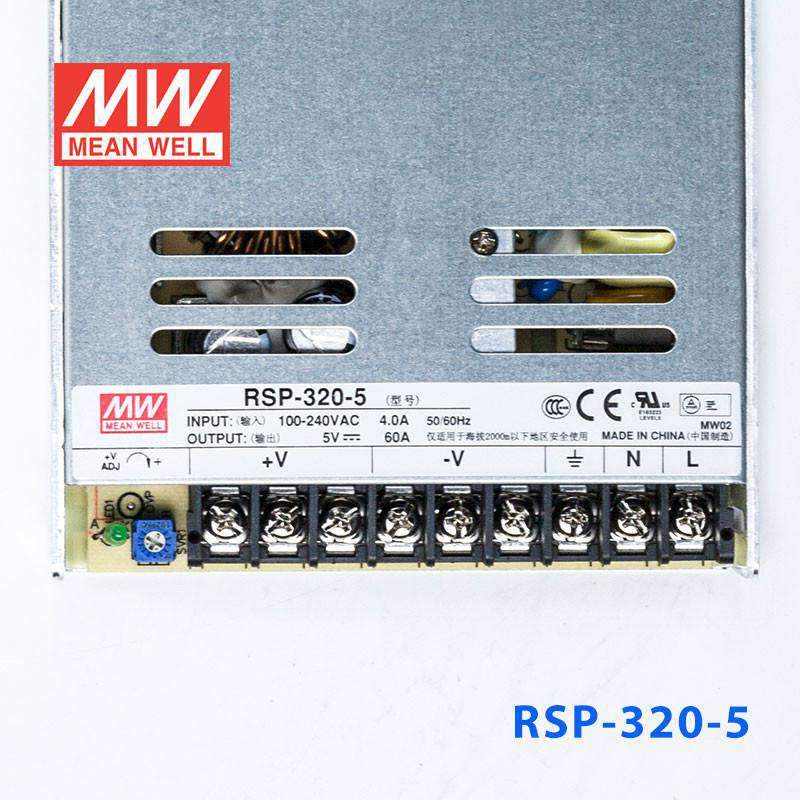

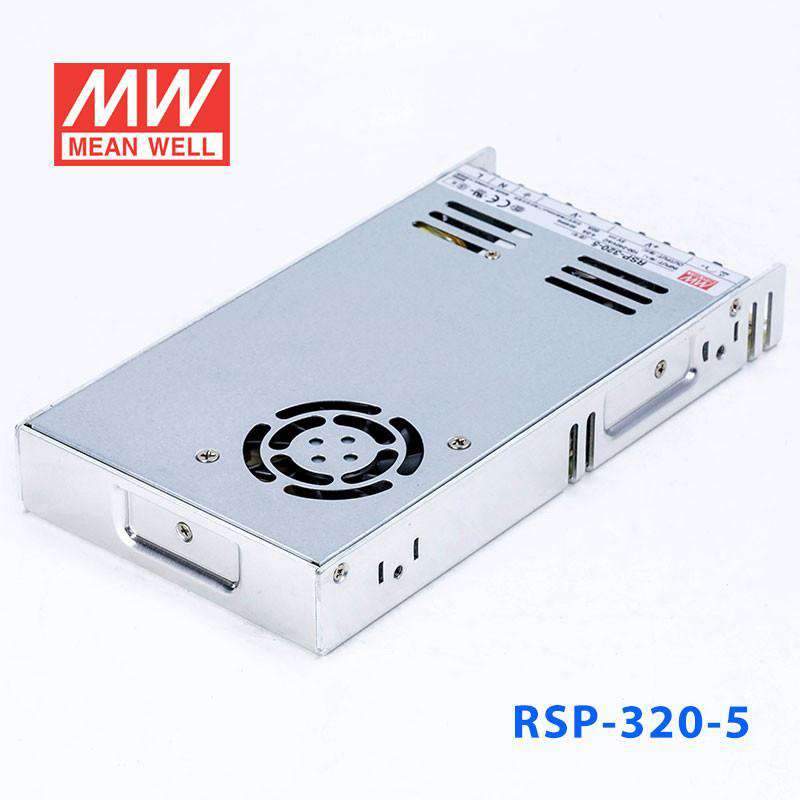

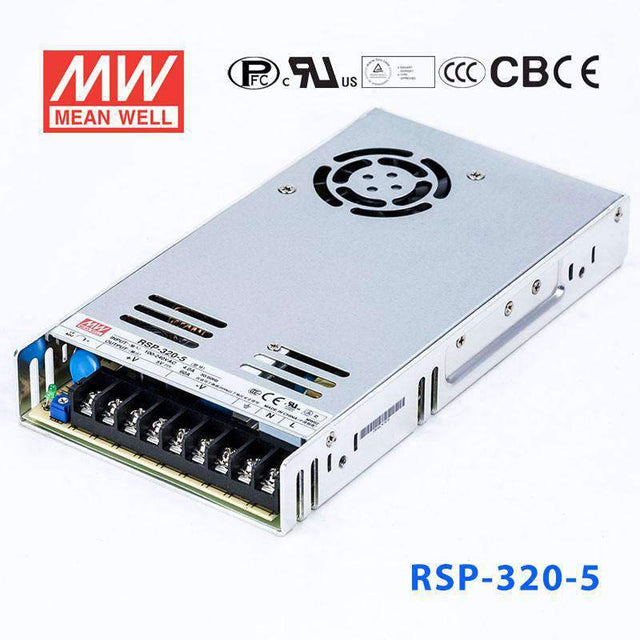

Mean Well RSP-320-5 Power Supply 300W 5V
The RSP-320 is a 320W Mean Well power converter (input range: 88~264VAC).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 60950.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating300 Watt
-
Output Voltage5 Volt
-
Rated Current60 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.98 lb
::specification::
Frequently Asked Questions
What can the RSP-320-5 power at 5V in an industrial context?
The RSP-320-5 delivers 5V at 60A (300W), making it suitable for legacy TTL logic systems, single-board computer clusters, and industrial HMI displays requiring a high-current 5V supply. Its 1U form factor (215.0 × 115.0 × 30.0 mm) supports rack-mount deployments.
What ambient temperature range does the RSP-320-5 support?
The RSP-320-5 operates from -30°C to +70°C. It is designed for indoor enclosed use and certified to BSMI, CB, CCC, CE, EAC, TÜV, and UL.
How does the RSP-320-5 compare to the RSP-320-4 and RSP-320-7.5?
All three share the 215.0 × 115.0 × 30.0 mm chassis and 88-264VAC input. The RSP-320-4 provides 240W at 60A, the RSP-320-5 provides 300W at 60A, and the RSP-320-7.5 provides 300W at 40A. The RSP-320-5 and RSP-320-7.5 share the same total wattage but differ in output voltage and current.
What is the actual rated power of the RSP-320-5?
The RSP-320-5 is rated at 300W (5V × 60A). It includes built-in active PFC and weighs 0.9 kg.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RSP-320 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RSP-320-48 Power Supply 320W 48V | 320W | 48V | 6.7A | Indoor | $55.98 | View |
| Mean Well RSP-320-12 Power Supply 320W 12V | 320.4W | 12V | 26.7A | Indoor | $59.04 | View |
| Mean Well RSP-320-15 Power Supply 320W 15V | 320W | 15V | 21.4A | Indoor | $59.04 | View |
| Mean Well RSP-320-27 Power Supply 320W 27V | 320W | 27V | 11.9A | Indoor | $56.55 | View |
| Mean Well RSP-320-24 Power Supply 320W 24V | 320W | 24V | 13.4A | Indoor | $56.68 | View |
| Mean Well RSP-320-13.5 Power Supply 320W 13.5V | 320W | 13.5V | 23.8A | Indoor | $59.04 | View |
