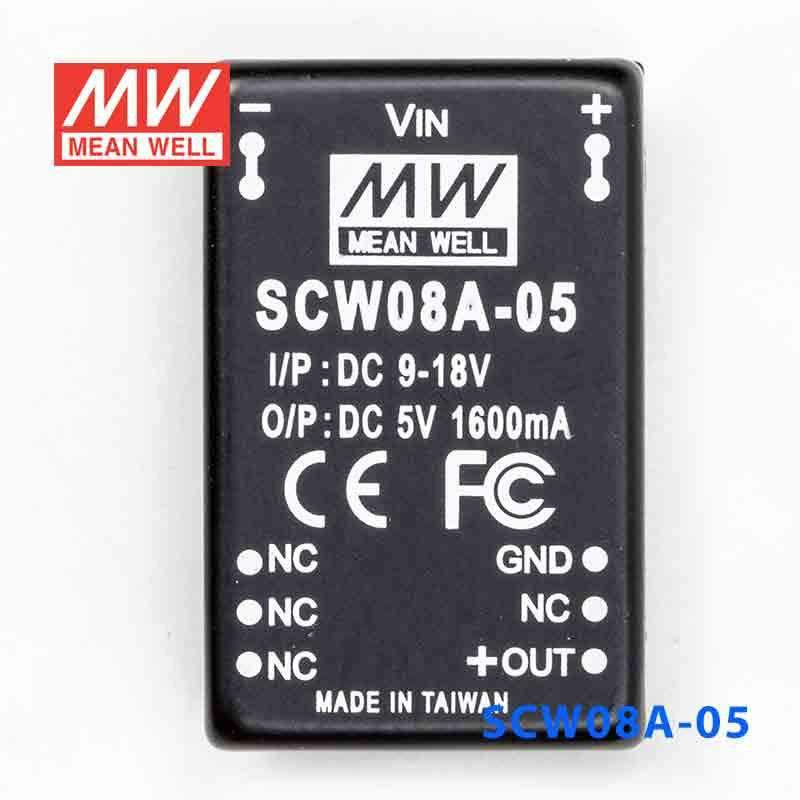

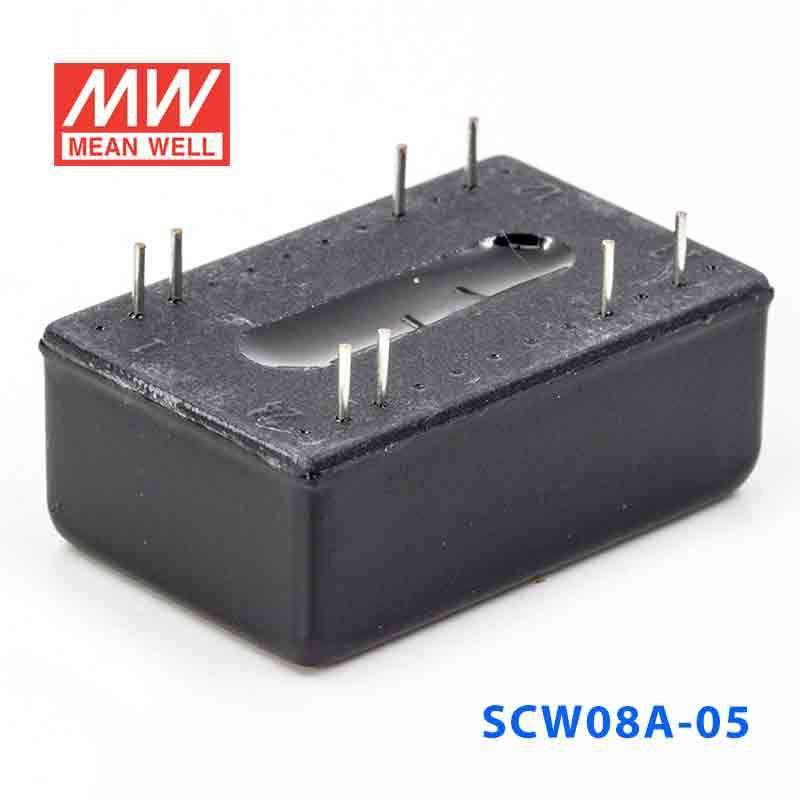

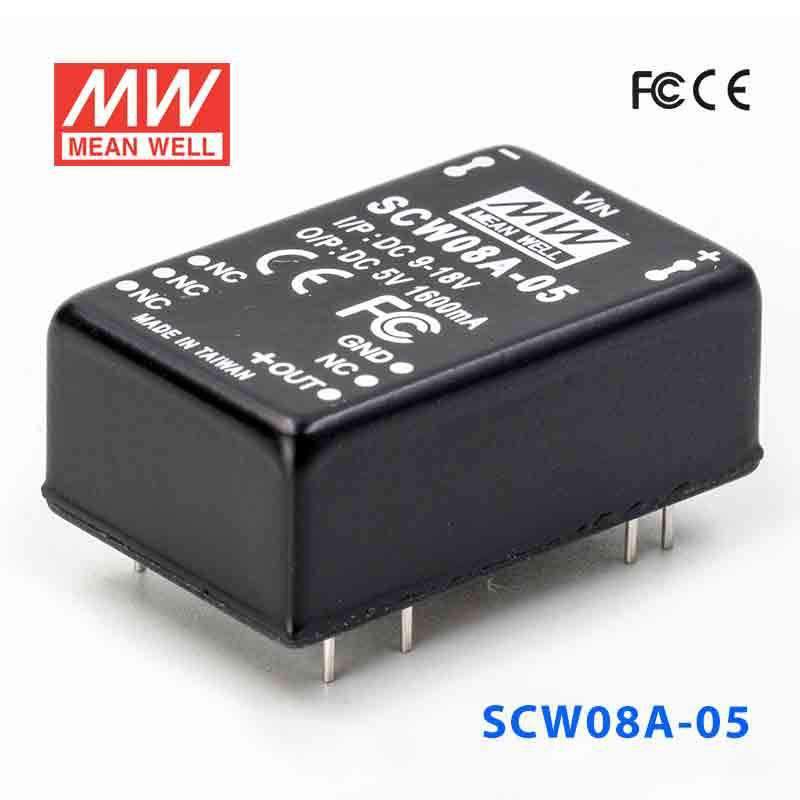

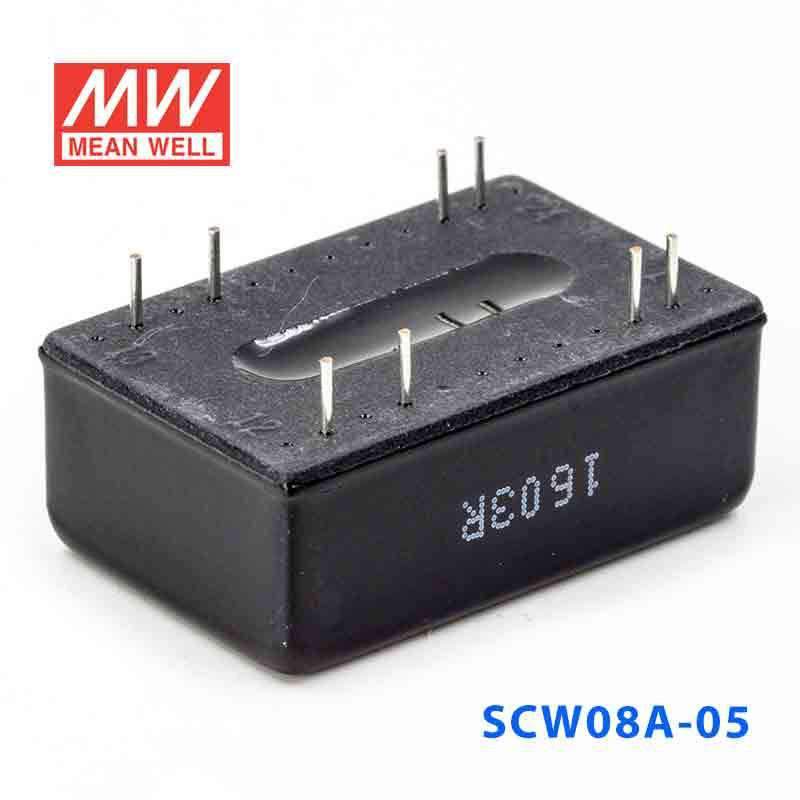

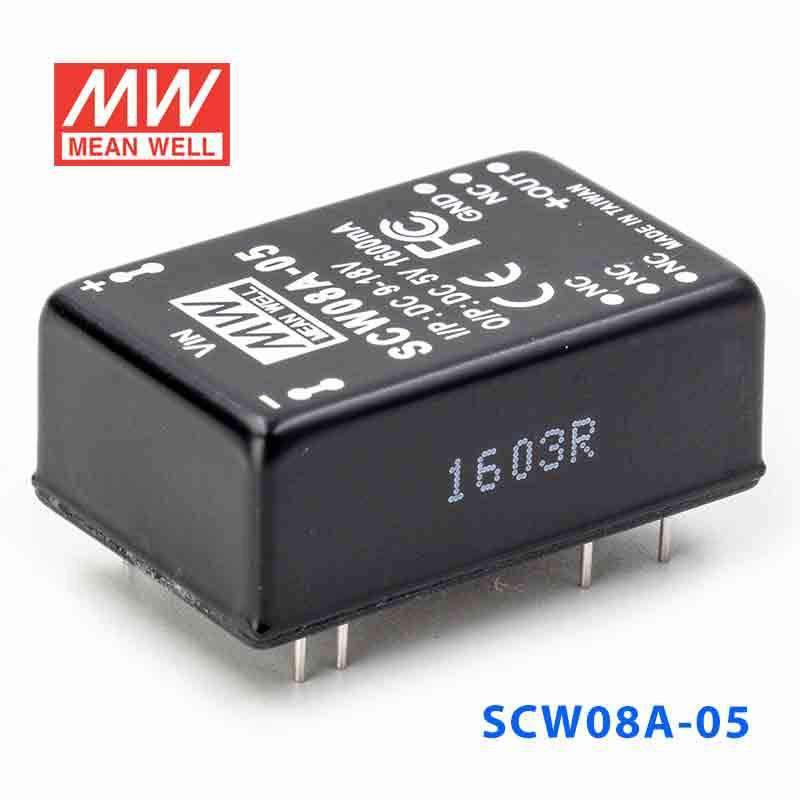

Mean Well SCW08A-05 DC-DC Converter - 8W 9~18V DC in 5V out
The SCW08A is a 8W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSCW Series
-
Power Rating8 Watt
-
Output Voltage5 Volt
-
Rated Current1.6 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Warranty2 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.03 lb
::specification::
Frequently Asked Questions
Can I use the SCW08A-05 to power a 5V embedded controller inside industrial equipment?
Yes, this model is intended for constant-voltage 5V loads when the source feeding it is within 9-18VAC. It can supply up to 1.6A with an 8W rating, so it fits low-power embedded control boards that stay within those limits.
Is the SCW08A-05 suitable for 5V logic or interface boards in automation panels?
It is a fit for 5V automation electronics that need regulated constant-voltage output and draw no more than 1.6A. The converter is rated at 8W and accepts 9-18VAC input, which suits low-power panel subsystems rather than higher-load equipment.
Can this converter run a 5V monitoring or communications module in a compact industrial enclosure?
It can work for a 5V monitoring or communications module if the module stays within 1.6A and 8W. Its compact 31.75 × 20.32 × 12.19 mm size and 0.015 kg weight make it practical where space is limited.
How does the SCW08A-05 compare with the other SCW08A models?
All SCW08A versions in this group are 8W converters with 9-18VAC input and the same 31.75 × 20.32 × 12.19 mm size. The SCW08A-05 outputs 5V at 1.6A, the SCW08A-12 outputs 12V at 0.67A, and the SCW08A-15 outputs 15V at 0.53A.
Is the SCW08A-05 suitable for outdoor or harsh-temperature locations?
Its operating temperature range is -40°C to +71°C, so it is specified for a wide temperature range. No IP rating is listed in the provided specs, so outdoor or washdown suitability is not stated here.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SCW08 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SCW08C-15 DC-DC Converter - 8W 36~72V DC in 15V out | 8W | 15V | 0.53A | Indoor | $16.58 | View |
| Mean Well SCW08C-12 DC-DC Converter - 8W 36~72V DC in 12V out | 8W | 12V | 0.67A | Indoor | $16.58 | View |
| Mean Well SCW08C-05 DC-DC Converter - 8W 36~72V DC in 5V out | 8W | 5V | 1.6A | Indoor | $16.58 | View |
| Mean Well SCW08B-15 DC-DC Converter - 8W 18~36V DC in 15V out | 8W | 15V | 0.53A | Indoor | $16.58 | View |
| Mean Well SCW08B-12 DC-DC Converter - 8W 18~36V DC in 12V out | 8W | 12V | 0.67A | Indoor | $14.79 | View |
| Mean Well SCW08B-05 DC-DC Converter - 8W 18~36V DC in 5V out | 8W | 5V | 1.6A | Indoor | $16.58 | View |
| Mean Well SCW08A-15 DC-DC Converter - 8W 9~18V DC in 15V out | 8W | 15V | 0.53A | Indoor | $16.58 | View |
| Mean Well SCW08A-12 DC-DC Converter - 8W 9~18V DC in 12V out | 8W | 12V | 0.67A | Indoor | $16.58 | View |
