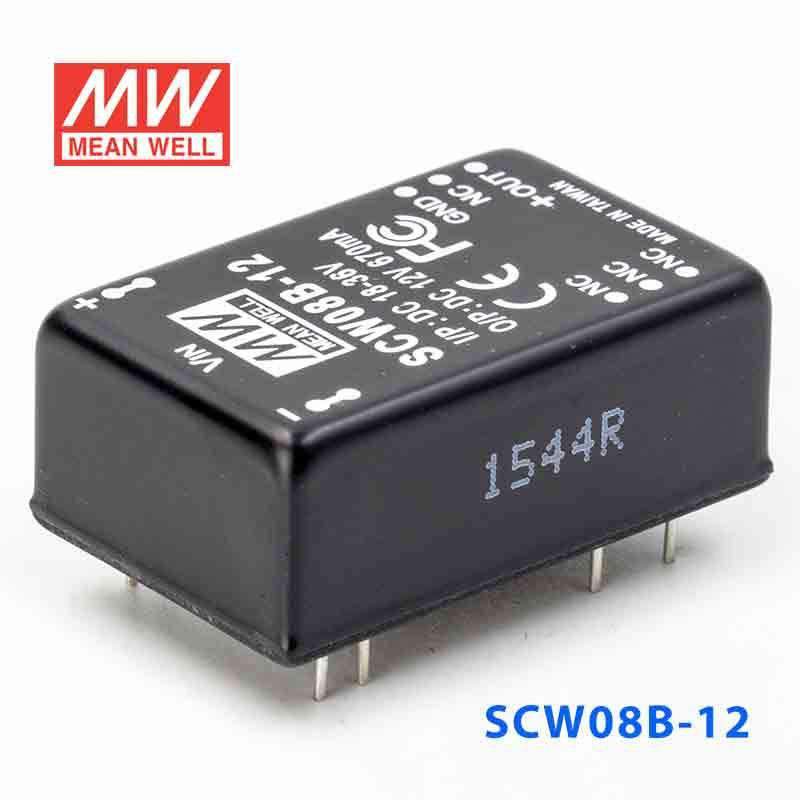

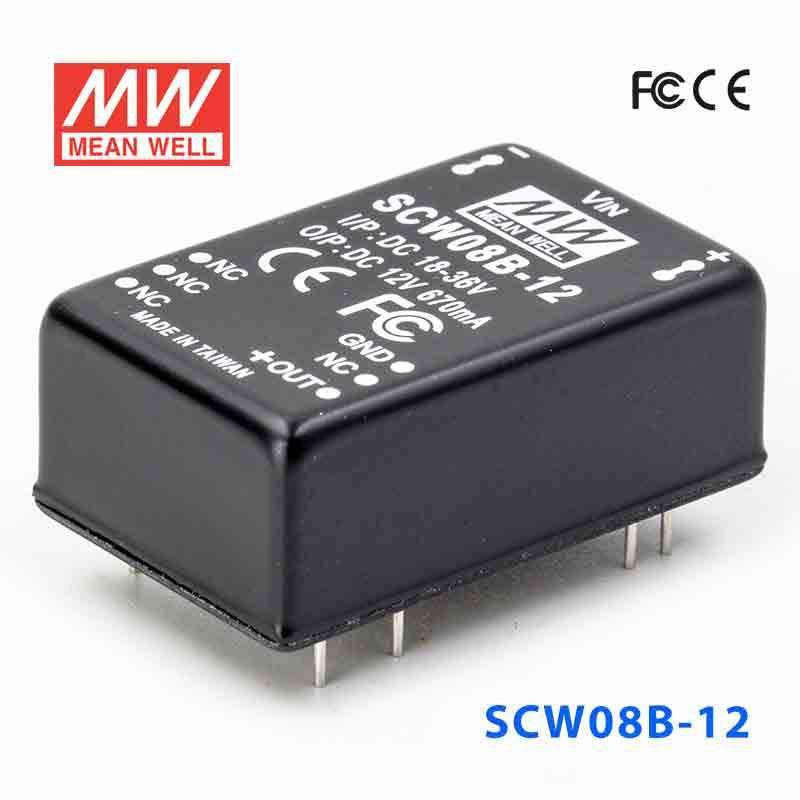

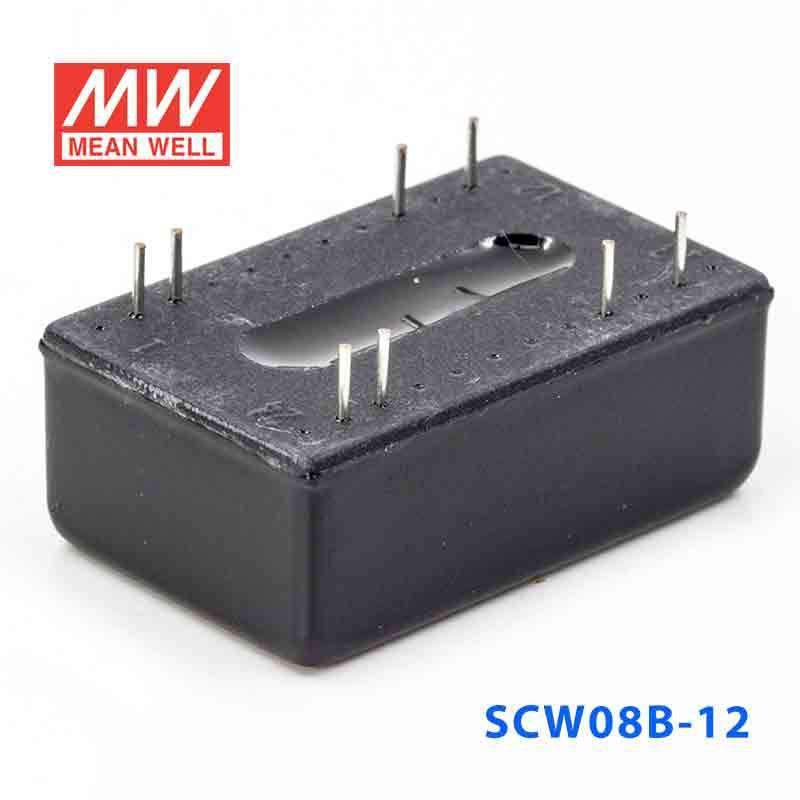

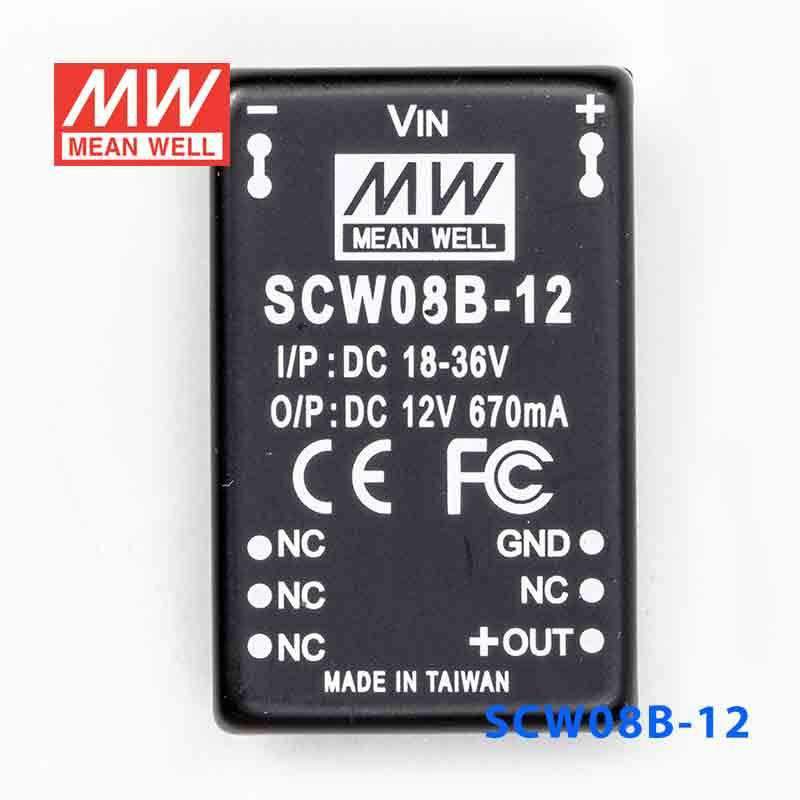

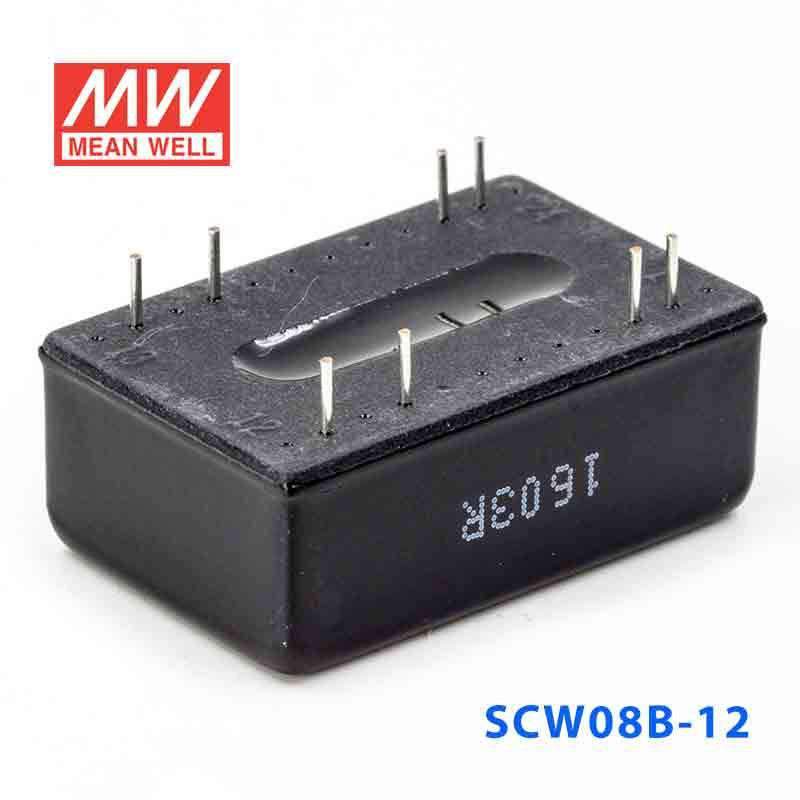

Mean Well SCW08B-12 DC-DC Converter - 8W 18~36V DC in 12V out 670mA
The SCW08B is a 8W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSCW Series
-
Power Rating8 Watt
-
Output Voltage12 Volt
-
Rated Current0.67 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Warranty2 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.03 lb
::specification::
Frequently Asked Questions
Can I use the SCW08B-12 to power a small 12V industrial control circuit from an 18-36VAC source?
Yes, it is designed for a 18-36VAC input range and provides a constant 12V output. Its 8W rating and 0.67A output current make it a fit for low-power 12V control electronics rather than higher-load equipment.
Is the SCW08B-12 suitable for embedded 12V electronics inside compact equipment?
It can be a good fit for compact embedded designs because it measures 31.75 × 20.32 × 12.19 mm and weighs 0.015 kg. The output is constant 12V at up to 0.67A, so it is intended for small 12V loads within its 8W capacity.
Can this converter support 12V automation sensors or interface modules?
It is appropriate for 12V automation electronics that need constant voltage and stay within 0.67A output current. With an 8W output limit, it is better suited to light-duty sensor or interface loads than to larger 12V devices.
How does the SCW08B-12 compare with the other SCW08B models?
All three SCW08B models are rated at 8W. The SCW08B-05 provides 5V at 1.6A, the SCW08B-12 provides 12V at 0.67A, and the SCW08B-15 provides 15V at 0.53A.
Is the SCW08B-12 suitable for outdoor or harsh-temperature use?
The operating temperature range is -40°C to +71°C, so the temperature tolerance is broad. However, no IP rating is listed, so outdoor exposure or washdown suitability is not specified by these specs.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SCW08 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SCW08C-15 DC-DC Converter - 8W 36~72V DC in 15V out 533mA | 8W | 15V | 0.53A | Indoor | $16.58 | View |
| Mean Well SCW08C-12 DC-DC Converter - 8W 36~72V DC in 12V out 670mA | 8W | 12V | 0.67A | Indoor | $16.58 | View |
| Mean Well SCW08C-05 DC-DC Converter - 8W 36~72V DC in 5V out 1.6A | 8W | 5V | 1.6A | Indoor | $16.58 | View |
| Mean Well SCW08B-15 DC-DC Converter - 8W 18~36V DC in 15V out 533mA | 8W | 15V | 0.53A | Indoor | $16.58 | View |
| Mean Well SCW08B-05 DC-DC Converter - 8W 18~36V DC in 5V out 1.6A | 8W | 5V | 1.6A | Indoor | $16.58 | View |
| Mean Well SCW08A-15 DC-DC Converter - 8W 9~18V DC in 15V out 533mA | 8W | 15V | 0.53A | Indoor | $16.58 | View |
| Mean Well SCW08A-12 DC-DC Converter - 8W 9~18V DC in 12V out 670mA | 8W | 12V | 0.67A | Indoor | $16.58 | View |
| Mean Well SCW08A-05 DC-DC Converter - 8W 9~18V DC in 5V out 1.6A | 8W | 5V | 1.6A | Indoor | $16.58 | View |
