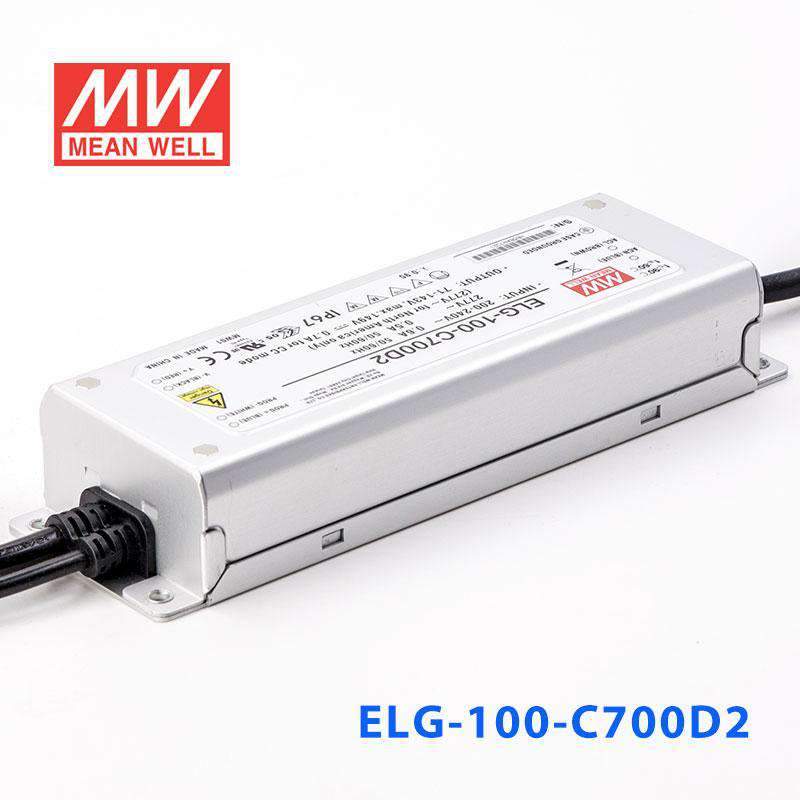

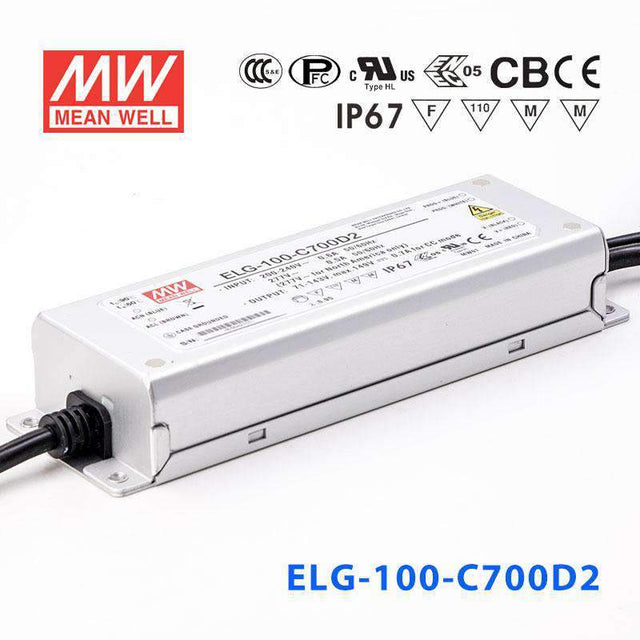

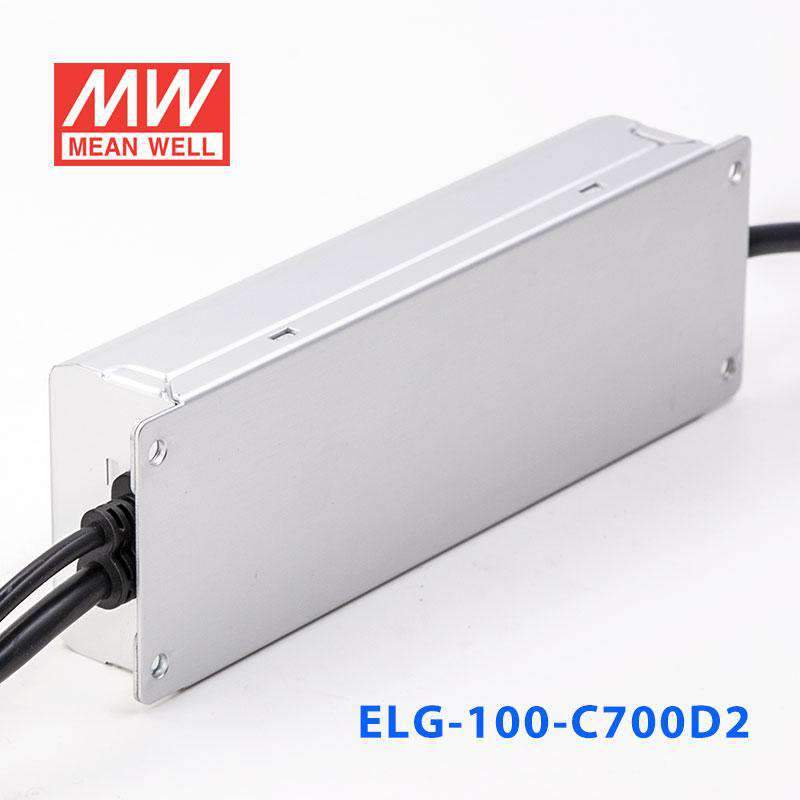

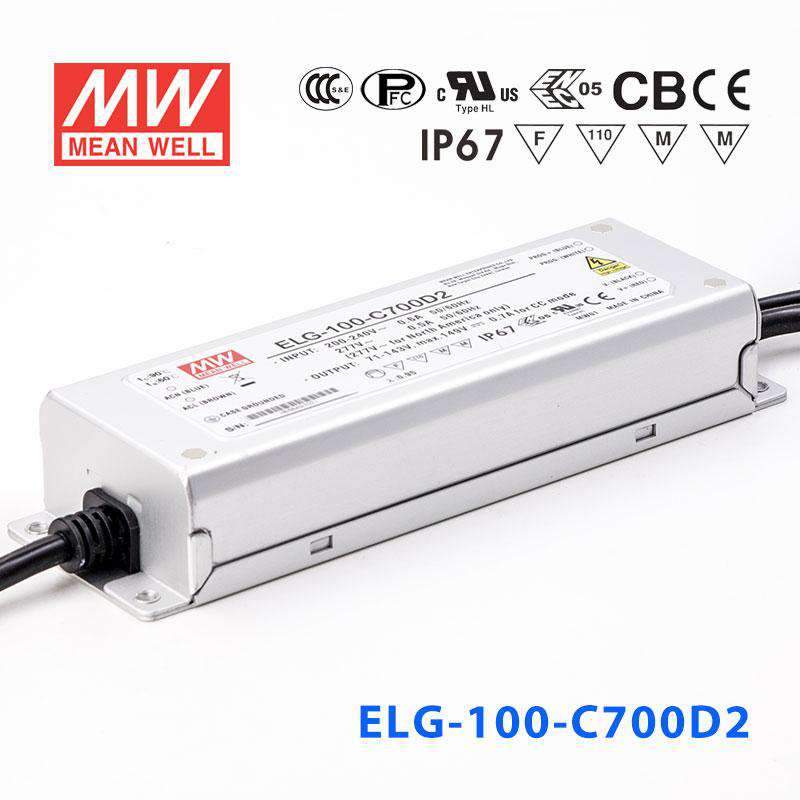

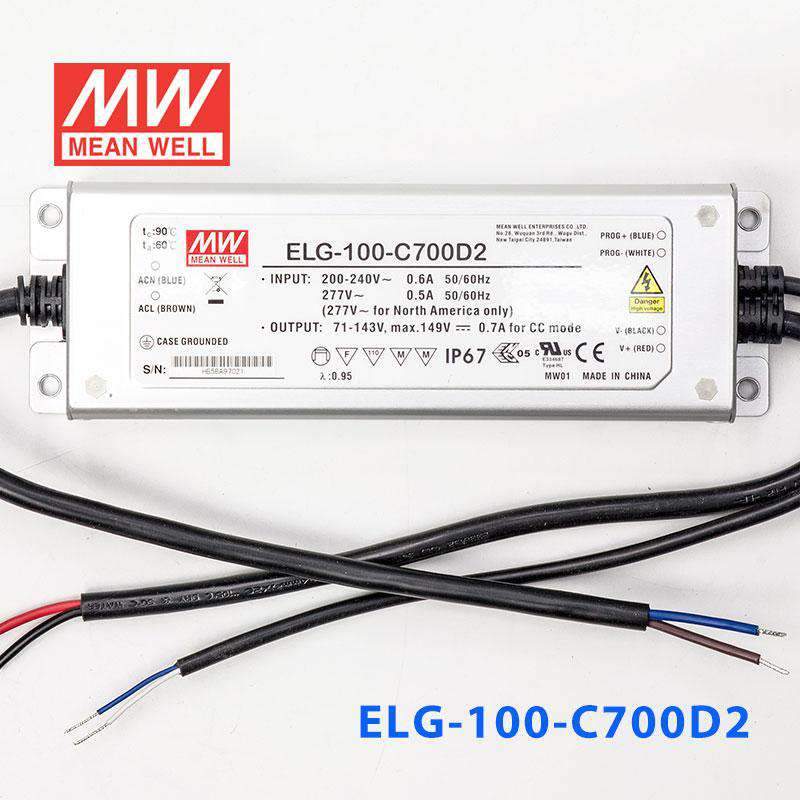

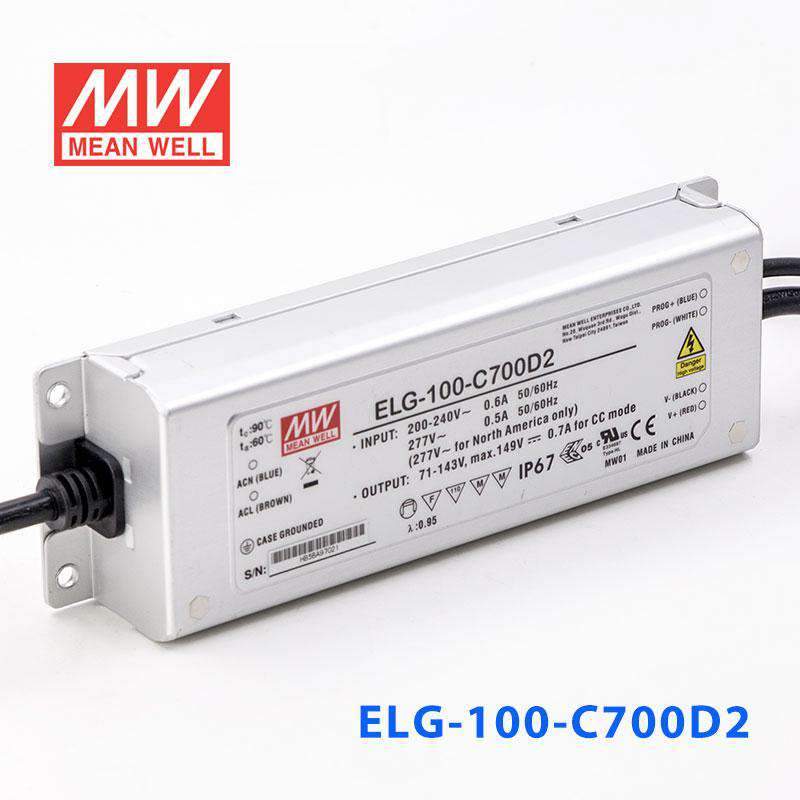

Mean Well ELG-100-C700D2 AC-DC Single output LED Driver (CC) with PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-100-C700D2 AC-DC Single output LED Driver (CC) with PFC
The ELG-100 is a 100W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC62386-101, 102, 207 for DA-Type only
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating100 Watt
-
Output Voltage143 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can the ELG-100-C700D2 power a constant current LED load in an industrial or factory environment?
Yes. The ELG-100-C700D2 is a constant current LED driver rated at 100W with an IP67 waterproof metal enclosure, making it appropriate for industrial settings where the driver may be exposed to dust, moisture, or washdown conditions. It accepts 100–305VAC input, accommodating a wide range of industrial supply voltages.
Is the ELG-100-C700D2 suitable for outdoor LED signage or architectural lighting applications?
Yes. The IP67 rating means the driver is protected against temporary immersion and can be mounted in outdoor signage cabinets or exposed architectural fixture housings. The -40°C to +90°C operating temperature range supports installations in climates with significant temperature variation.
Can the ELG-100-C700D2 be installed in a wet or damp ceiling void above a commercial kitchen?
Yes. The IP67 waterproof rating makes the driver tolerant of high-humidity and damp environments such as above commercial kitchen ceilings or in other wet locations. The sealed metal case prevents moisture ingress under the conditions defined by the IP67 standard.
How does the ELG-100-C700D2 differ from the standard ELG-100-C700?
The ELG-100-C700D2 is the D2 variant, which typically indicates a different dimming interface or control method compared to the base ELG-100-C700. Both are rated near 100W with 700mA constant current output and IP67 waterproofing. The ELG-100-C700D2 carries BSMI, CB, CE, EAC, and UL certifications, whereas the ELG-100-C700 additionally holds c_bsi, CCC, ENEC, and c_rcm marks.
What LED string voltage is compatible with the ELG-100-C700D2?
The driver's output voltage is 143V and it operates in constant current mode. The LED string's combined forward voltage must be within the CC output operating range; the exact number of LEDs in the string depends on each LED's forward voltage, which varies by manufacturer and model.
What certifications does the ELG-100-C700D2 hold?
The ELG-100-C700D2 is certified to BSMI, CB, CE, EAC, and UL standards. This covers major markets including the United States, European Union, Taiwan, and Russia/EAC regions. The 5-year warranty is also included.
