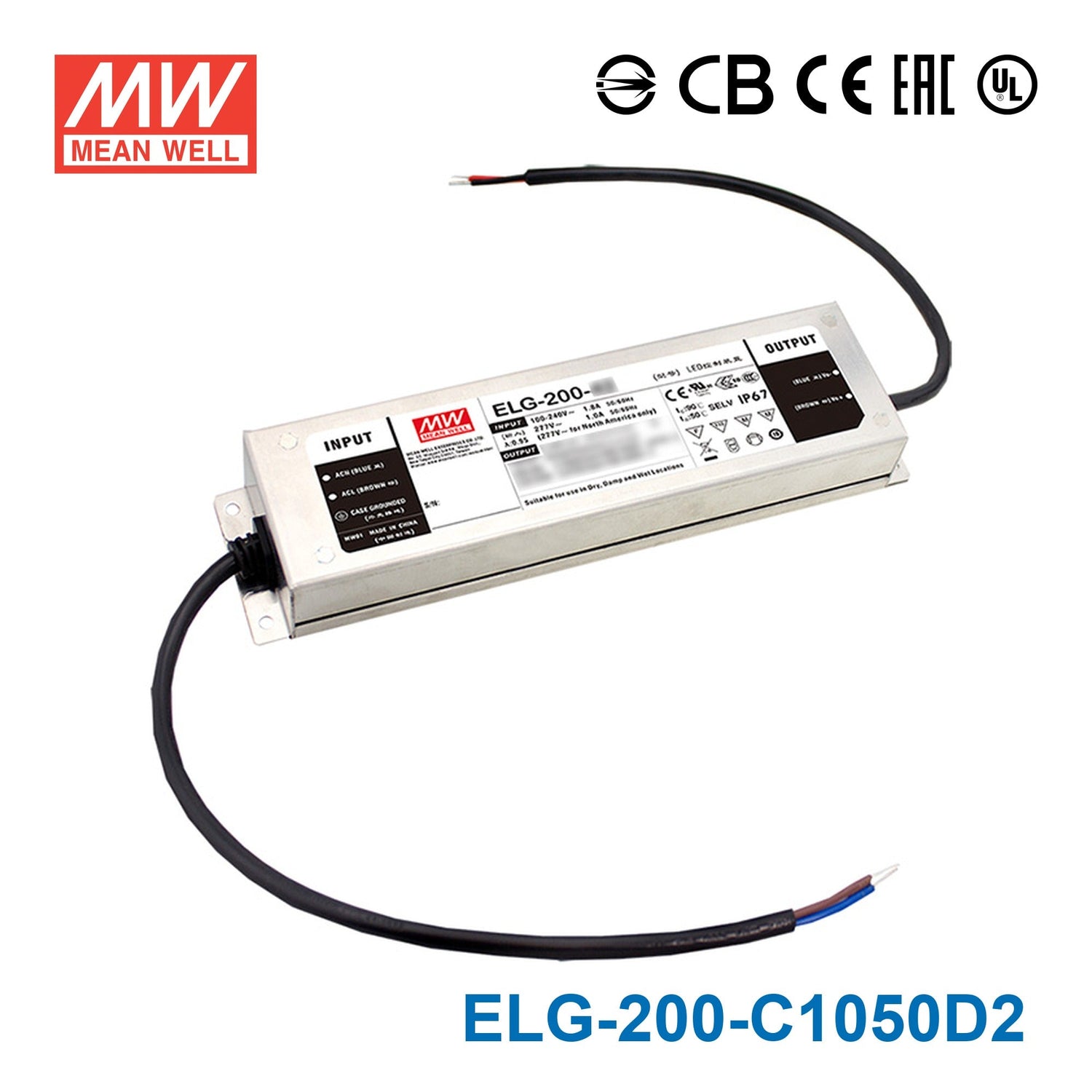

Mean Well ELG-200-C1050D2 AC-DC Single output LED Driver (CC) with PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-200-C1050D2 AC-DC Single output LED Driver (CC) with PFC
Description
Description
Features
| 100~305VAC wide input range |
| Built-in active PFC |
| Protections: Short circuit / Over voltage/Over temperature |
| No load power consumption <0.5W |
| High efficiency up to 93% |
| Suitable for LED lighting and street lighting applications |
| Cooling by free air convection |
| 100% full load burn-in test |
| 5 years warranty |
General Specification
| AC input voltage range | 100~305VAC;142~431VDC |
| AC inrush current | Cold start, 65 at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 500ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1 |
| Dimension (LxWxH) | 244x71x37.5 |
| Packing | 12pcs / 15.2kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating200 Watt
-
Output Voltage190 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control1-10V
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Does the ELG-200-C1050D2 support 0–10V dimming for integration with lighting control systems?
Yes. The 'D2' suffix on Mean Well ELG drivers indicates a 0–10V (or 1–10V) dimming interface, allowing this driver to be controlled by standard building automation or 0–10V dimming panels used in commercial LED lighting systems.
Can I use the ELG-200-C1050D2 to power LED downlights in a damp indoor environment such as a commercial kitchen?
Yes. With an IP67 waterproof rating, this driver tolerates high humidity, steam, and occasional water splashes found in commercial kitchens and food processing areas. Its 200W output at 1050mA constant current handles a string of LED downlights whose combined forward voltage falls within the 95–190V CC range.
Is the ELG-200-C1050D2 suitable for outdoor LED signage controlled by a lighting management system?
Yes. The combination of IP67 protection, a wide operating temperature range of -40°C to +85°C, and 0–10V dimming via the D2 interface makes this driver well-matched for outdoor illuminated sign cabinets that need centralized dimming control.
How does the constant current operation of the ELG-200-C1050D2 affect LED lifespan in a series string?
Constant current operation holds the drive current steady at 1050mA regardless of small variations in forward voltage, preventing overcurrent conditions that degrade LED junctions. This helps maximize the rated lifespan of LEDs in the series string.
What is the CC voltage range of the ELG-200-C1050D2, and why does it matter for LED selection?
The CC operating range is 95–190V. This means the total forward voltage of all LEDs connected in series must fall within that window; LEDs whose combined forward voltage is outside this range will not be driven correctly by this supply.
Can this driver withstand installation in an unheated rooftop equipment enclosure in a northern climate?
Yes. The ELG-200-C1050D2 operates down to -40°C, so it will start and function reliably in unheated northern rooftop enclosures. The IP67 metal housing also seals out freezing rain and condensation.
