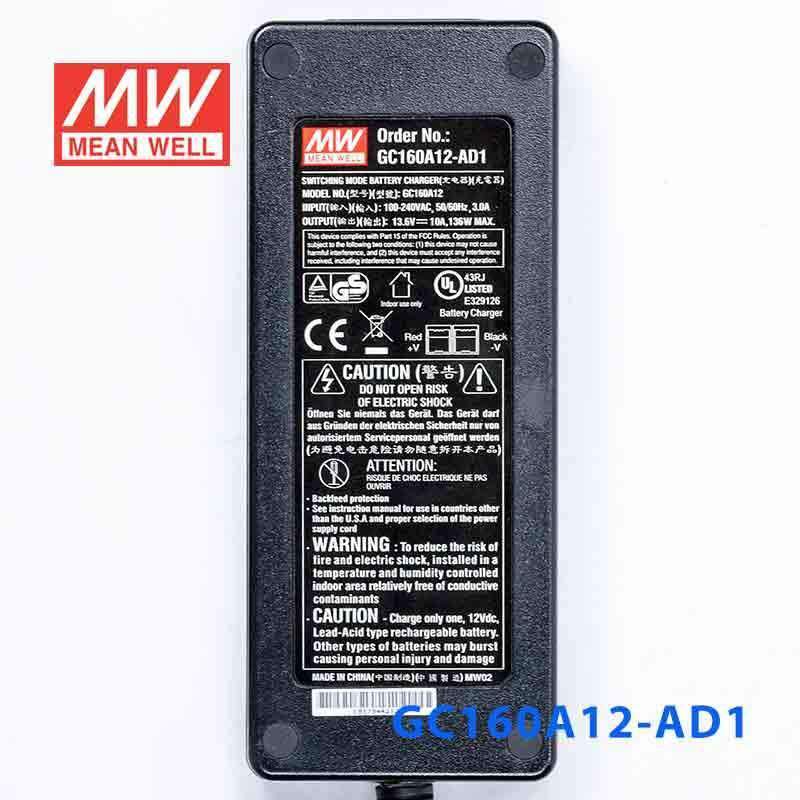

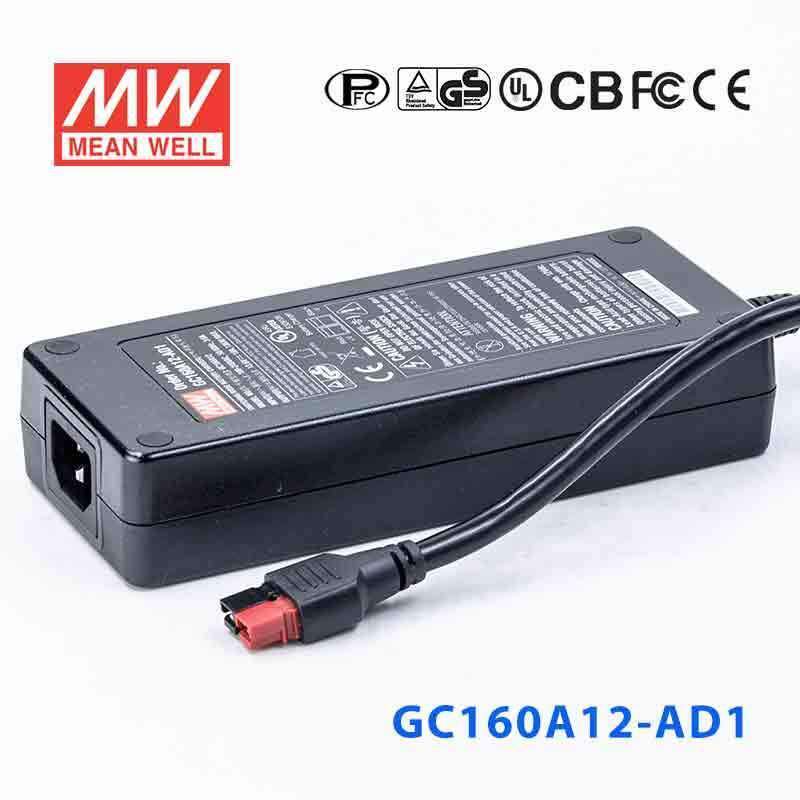

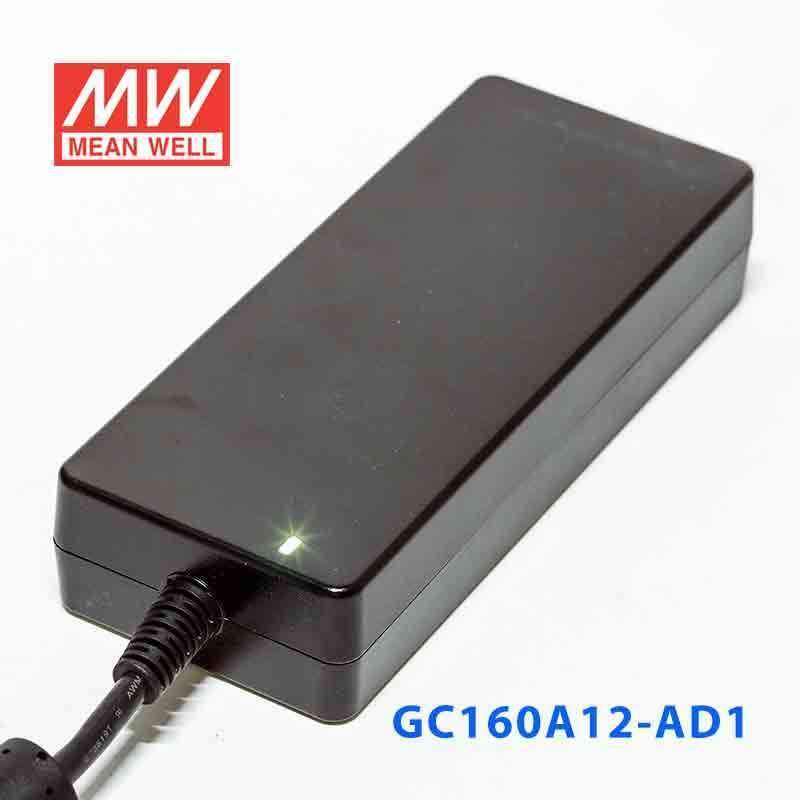

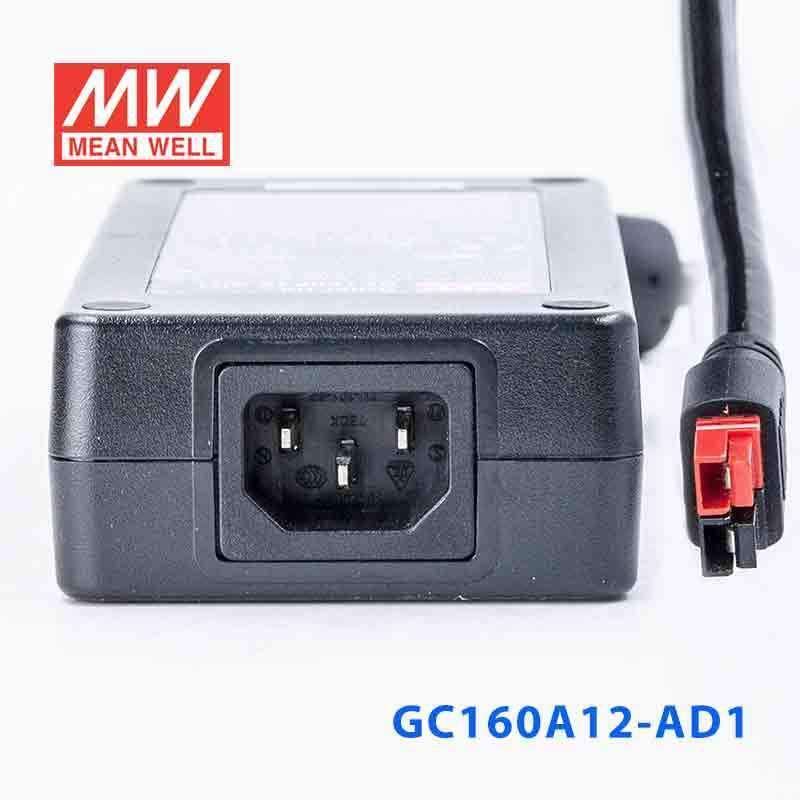

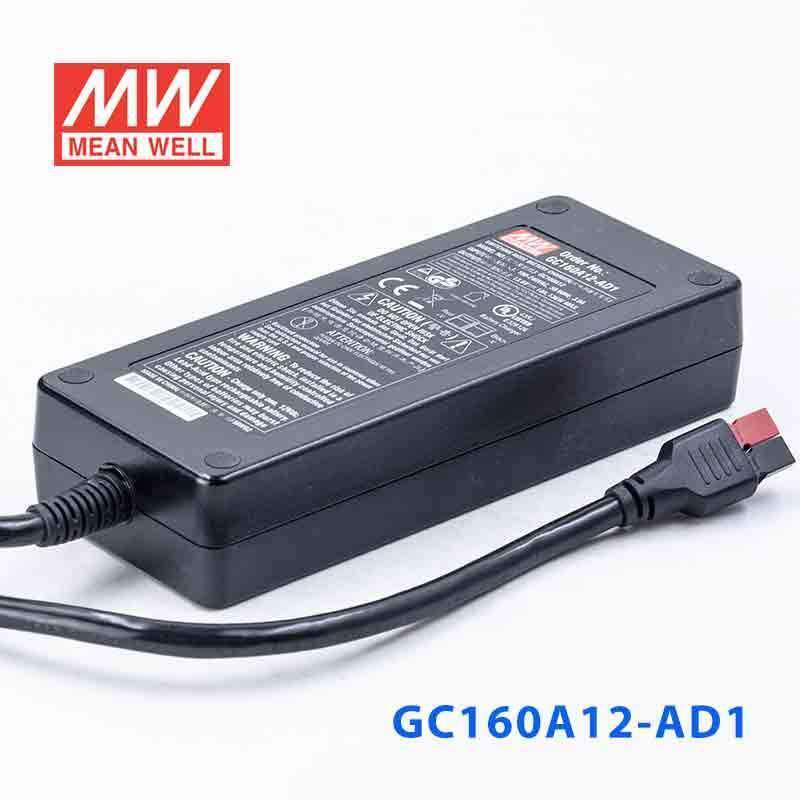

Mean Well GC160A12-AD1 Portable Chargers 136W 13.6V 10A - Green Adaptor
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well GC160A12-AD1 Portable Chargers 136W 13.6V 10A - Green Ada...
The GC160A12 is a 160W Mean Well power converter.
Key Features
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGC Series
-
Power Rating136 Watt
-
Output Voltage13.6 Volt
-
Rated Current10 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length6.89 in
-
Width2.83 in
-
Height1.38 in
-
Weight1.54 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well GC160A12-AD1?
The GC160A12-AD1 is rated for 13.6V output at 10A, with a 136W power rating. This makes it suitable for applications that need a portable AC-DC charger or power supply in that output range.
Is the GC160A12-AD1 designed as a portable charger?
Yes. This model is part of Mean Well's portable charger range and uses a fully enclosed plastic case with free air convection cooling. Its compact 175 x 72 x 35 mm size and 0.7 kg weight support portable use.
What input voltage range does the GC160A12-AD1 accept?
The GC160A12-AD1 accepts a universal AC input range of 85 to 264VAC and also supports 120 to 370VDC input. This full-range input helps it work across different mains power environments.
What protection features are included in the GC160A12-AD1?
This model includes short circuit, overload, over voltage, and over temperature protection. Overload protection operates at 90 to 110% constant current with auto-recovery, while over voltage protection shuts down the output until power is cycled.
Can the GC160A12-AD1 be used in demanding temperature conditions?
The specified operating temperature range is -30°C to +70°C, subject to the derating curve. That makes it a practical option for industrial and commercial environments where ambient temperatures may vary significantly.
How efficient is the Mean Well GC160A12-AD1?
The GC160A12-AD1 offers efficiency of up to 94% and no-load power consumption below 1W. These characteristics help reduce wasted energy compared with less efficient charger and power supply designs.
What compliance and warranty details are listed for the GC160A12-AD1?
This model is listed with EN60950-1 approval and EMC compliance including EN55022 Class B and FCC Part 15 Class B. It also comes with a 2-year warranty.
