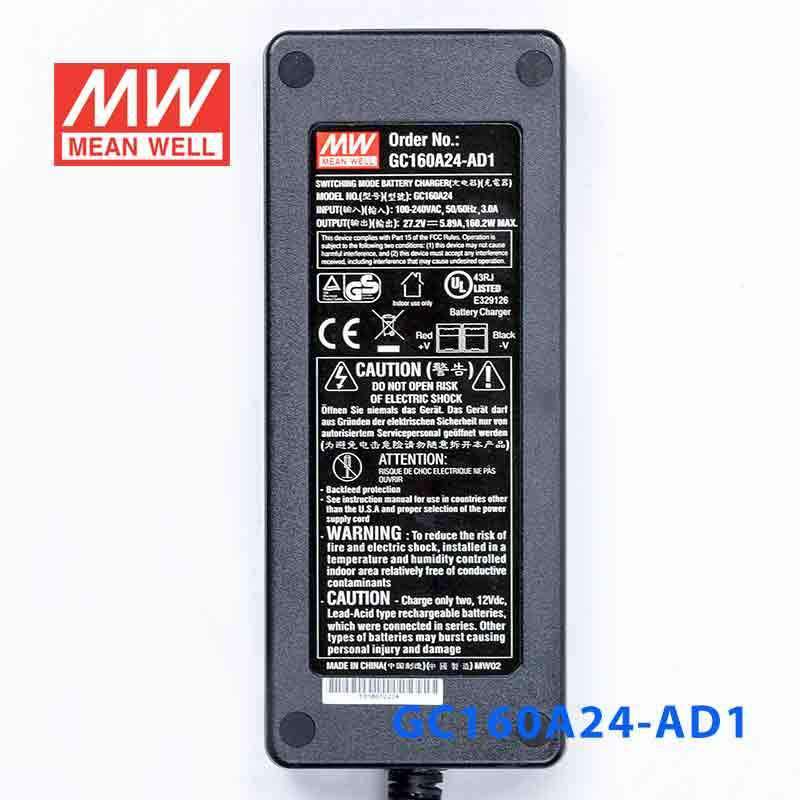

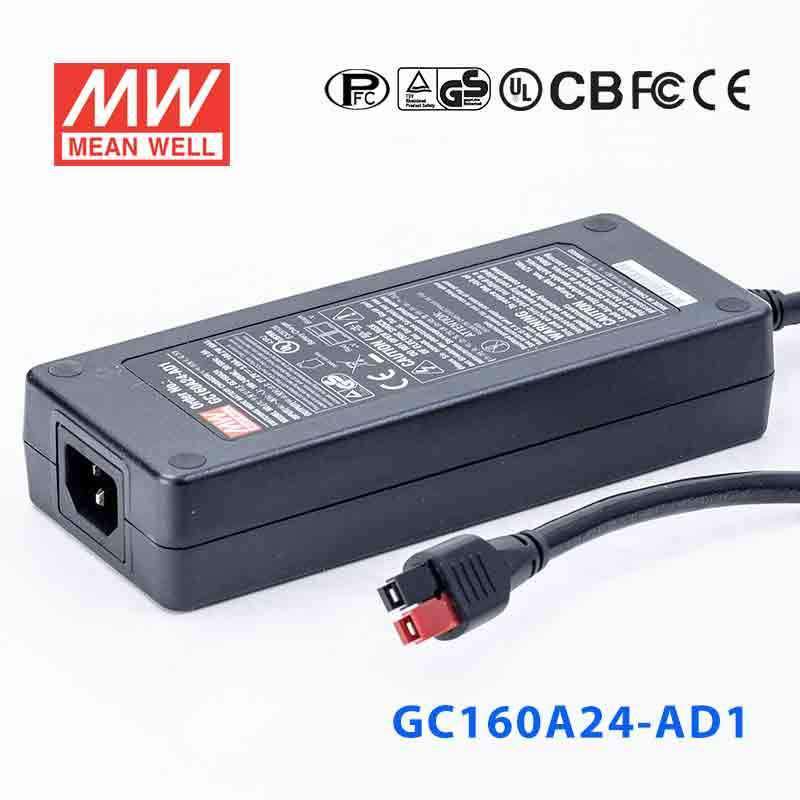

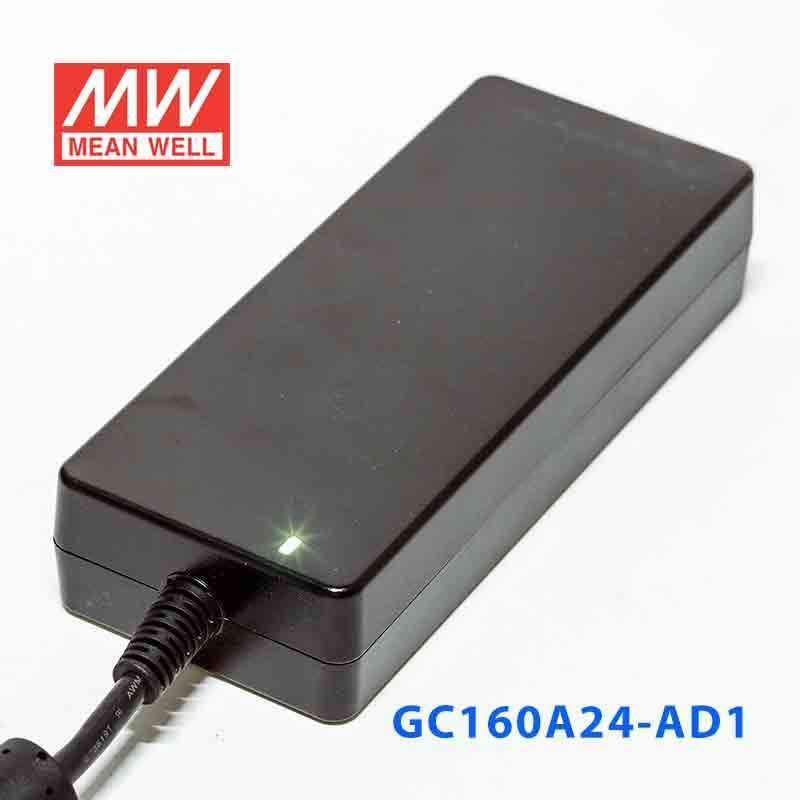

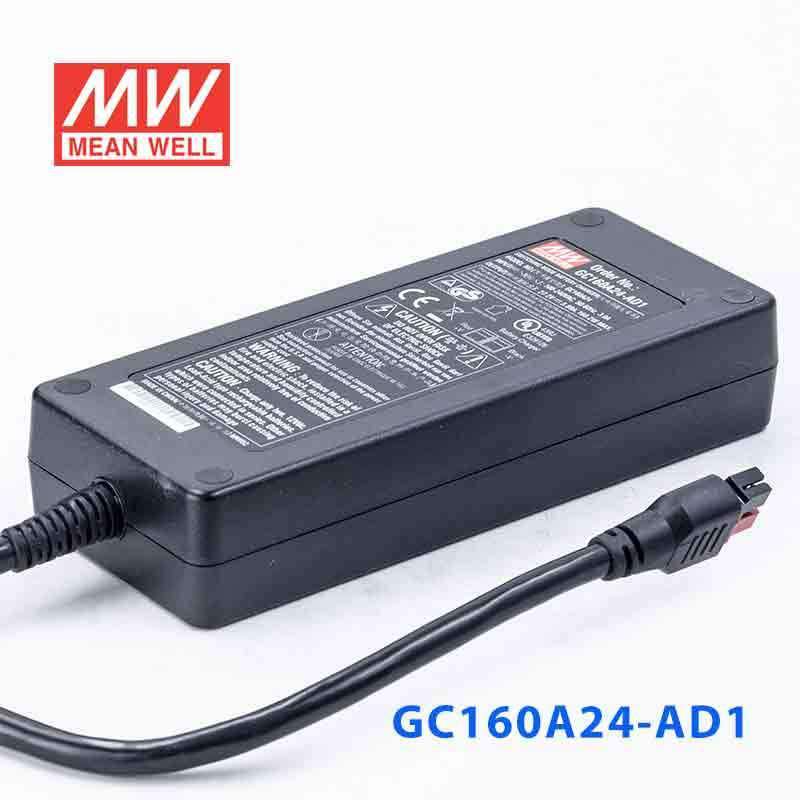

Mean Well GC160A24-AD1 Portable Chargers 160.2W 27.2V 5.89A - Green Adaptor
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well GC160A24-AD1 Portable Chargers 160.2W 27.2V 5.89A - Green...
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over Temp. |
| No load power consumption < 1W |
| High efficiency up to 94% |
| 2 stage charging characteristic |
| Cooling by free air convection |

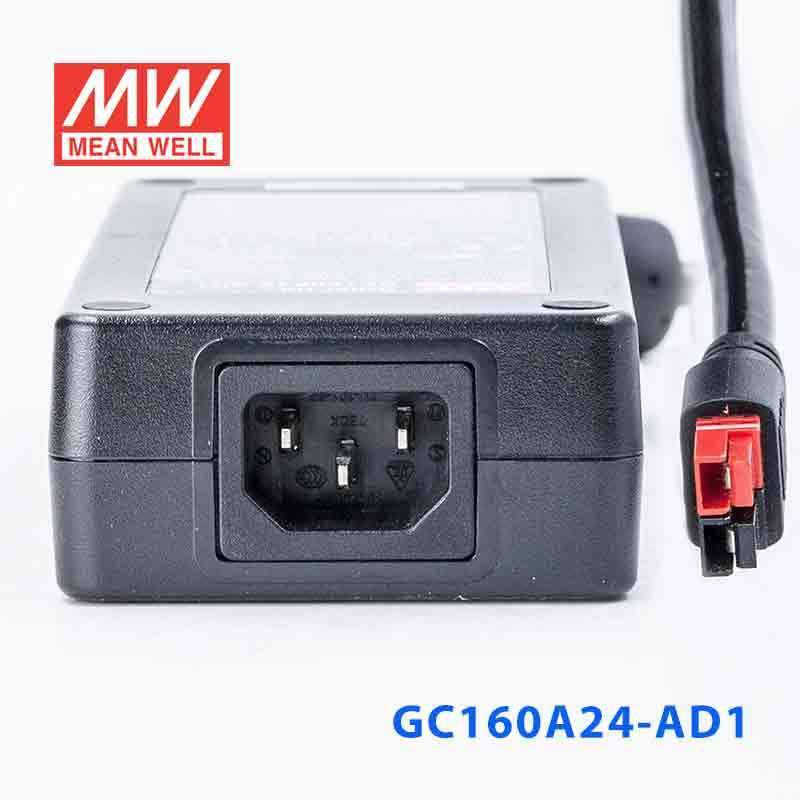

| 3 pole AC inlet IEC320-C14 |
| Class I power (with earth pin) |
| Fully enclosed plastic case |
| 2 color LED indicator for charging status |
| 2 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| Overload protection | 90~110% constant current, auto-recovery |
| Over voltage protection | 105%~135% shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C (refer to derating curve) |
| Safety standards | UL1012 (GC120Axx-AD1 only), EN60950-1 approved |
| EMC standards | EN55022 class B, FCC part 15 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Dimension (LxWxH) | 175x 72x 35 mm |
| Length of output cable | 120cm of UL2464, 18AWGx 4C |
| Standard DC plug | Power DIN 4P with lock type (R7B) |
Specifications
Specifications
-
BrandMean Well
-
SeriesGC Series
-
Power Rating160.2 Watt
-
Output Voltage27.2 Volt
-
Rated Current5.89 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length6.89 in
-
Width2.83 in
-
Height1.38 in
-
Weight1.54 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well GC160A24-AD1 designed for?
The GC160A24-AD1 is a portable AC/DC charger and power supply rated at 160.2W. It provides a 27.2V output at up to 5.89A, making it suitable for commercial and industrial applications that need a compact external power unit with charging capability.
What are the key output specifications of this model?
This model is rated for 160.2W total output power. Its nominal output is 27.2V DC with a rated current of 5.89A, which distinguishes it within Mean Well's portable charger range.
What input range does the GC160A24-AD1 support?
The unit accepts a universal input range of 85 to 264VAC, and it also supports 120 to 370VDC input. That wide range helps buyers standardize on one charger for use across different regions and power environments.
Is this charger suitable for demanding industrial environments?
Yes, this model is specified for operation from -30°C to +70°C, subject to the derating curve. It also includes protections for short circuit, overload, over voltage, and over temperature, which supports use in tougher operating conditions.
How efficient is the Mean Well GC160A24-AD1?
The GC160A24-AD1 offers efficiency of up to 94%, which helps reduce wasted energy and heat generation. It also has no-load power consumption below 1W, which is useful for applications where standby power matters.
What features make this model different from a basic desktop power adaptor?
Unlike a basic adaptor, this model includes built-in active PFC, a 2-stage charging characteristic, and charging-status indication with a 2-color LED. It is also built as a fully enclosed Class I unit with an IEC320-C14 AC inlet and free-air convection cooling.
What compliance and warranty details are available for this model?
The product is listed with EN60950-1 safety approval and EMC compliance including EN55022 Class B and FCC Part 15 Class B. Mean Well specifies a 2-year warranty for this model.
