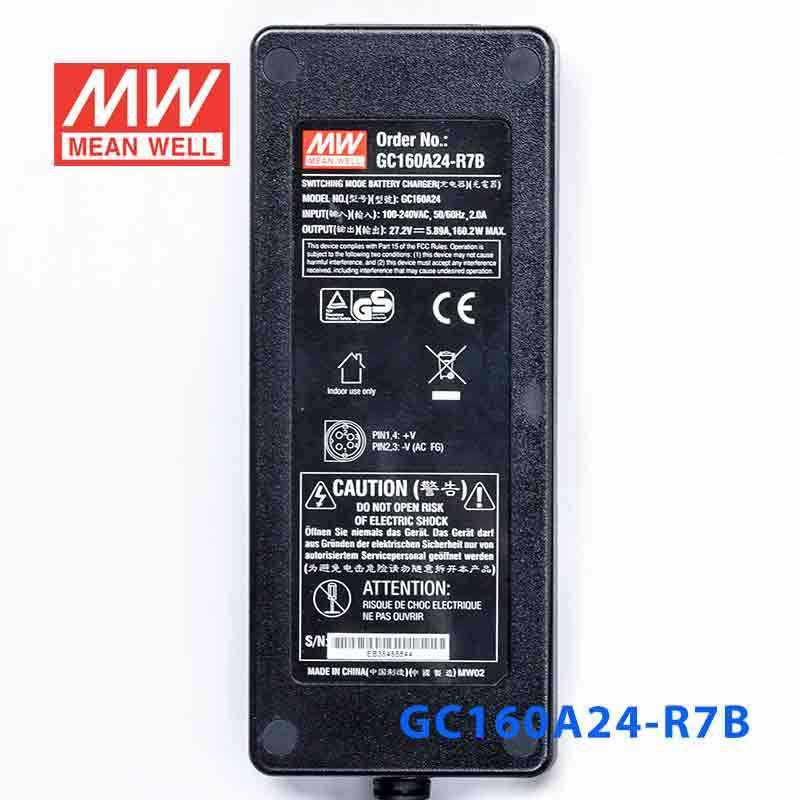

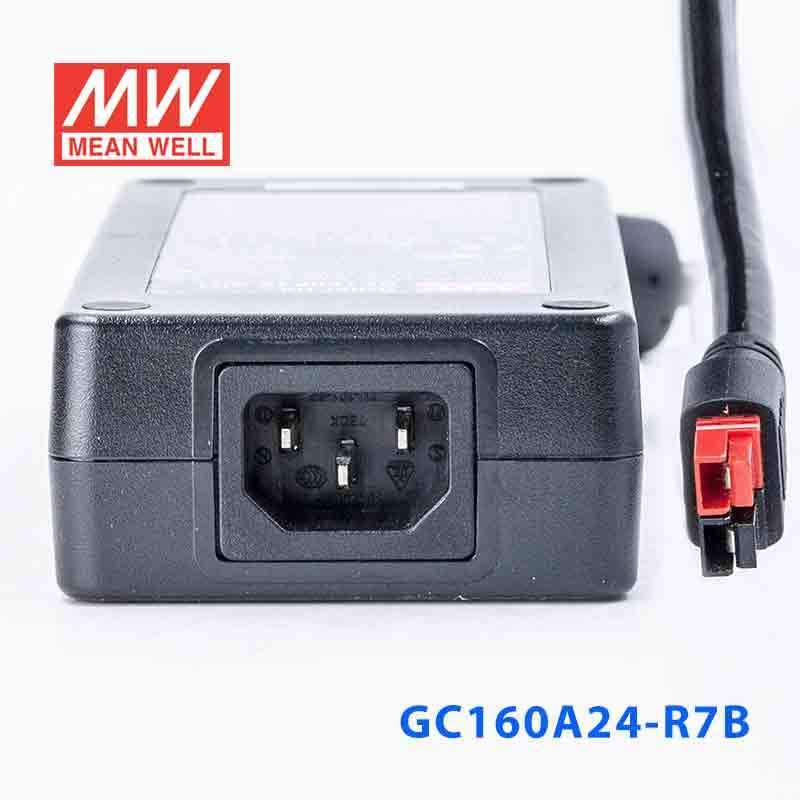

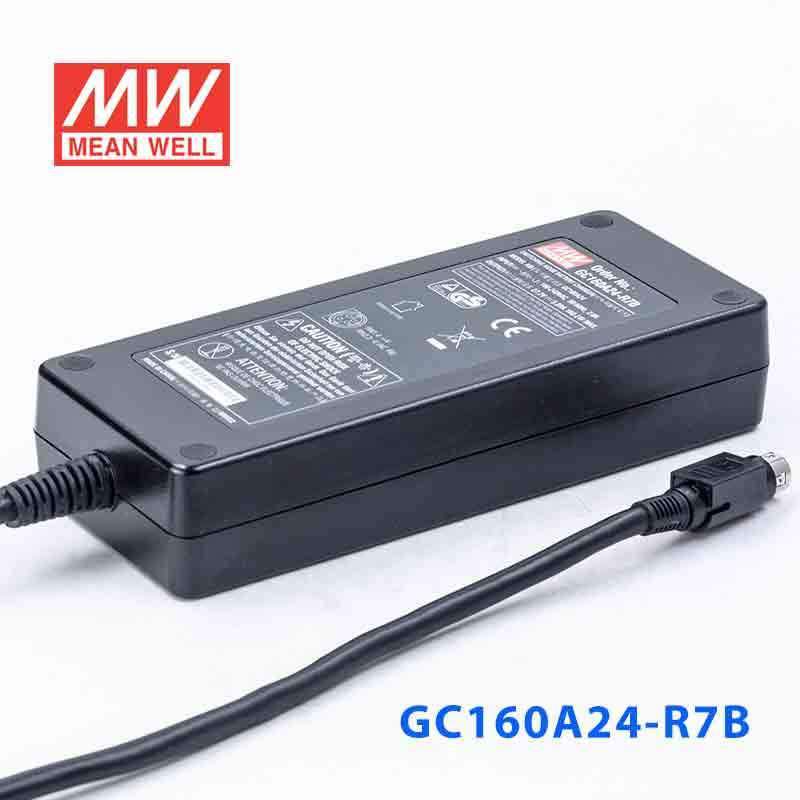

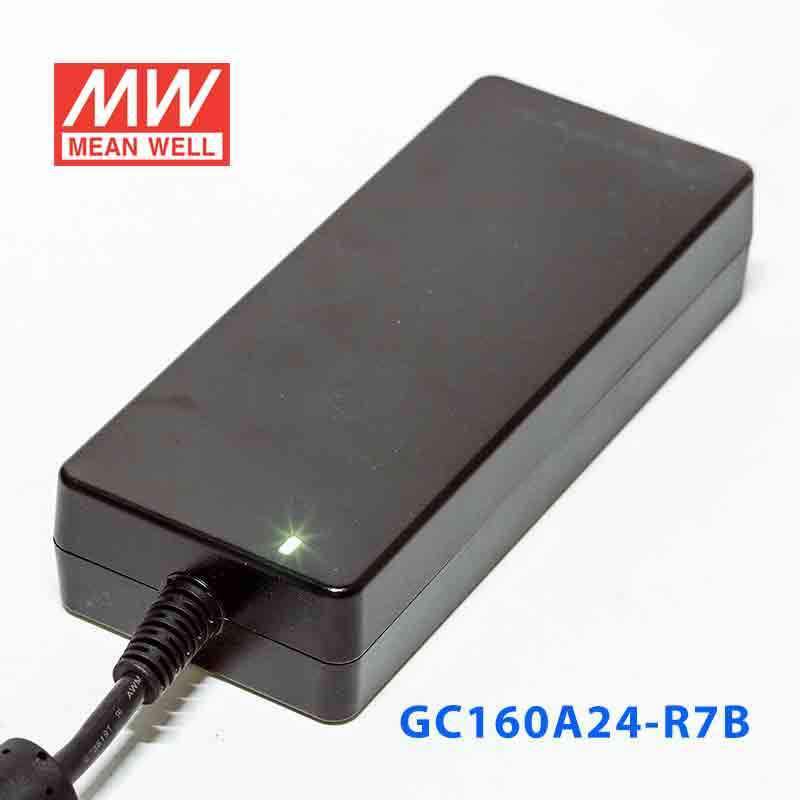

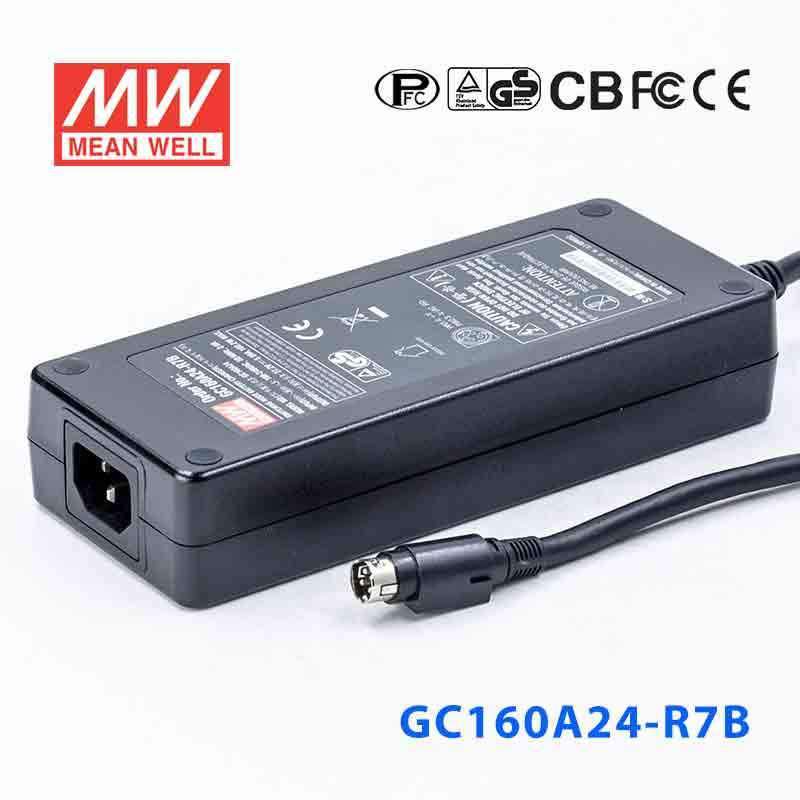

Mean Well GC160A24-R7B Portable Chargers 160.2W 27.2V 5.89A - Green Adaptor
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well GC160A24-R7B Portable Chargers 160.2W 27.2V 5.89A - Green...
The GC160A24 is a 160W Mean Well power converter.
Key Features
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGC Series
-
Power Rating160.2 Watt
-
Output Voltage27.2 Volt
-
Rated Current5.89 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length6.89 in
-
Width2.83 in
-
Height1.38 in
-
Weight1.54 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well GC160A24-R7B?
The GC160A24-R7B is rated for 160.2W output with a nominal output voltage of 27.2V and rated current of 5.89A. This makes it suitable for applications that require a portable AC-DC charger or power supply in that output range.
Is the GC160A24-R7B intended to be used as a battery charger or a power supply?
This model is described as a portable charger and also fits AC-DC power supply applications. Its 2-stage charging characteristic and charging-status LED make it especially relevant for battery charging use cases, while its regulated 27.2V output also supports compatible power supply needs.
What input voltage range does the GC160A24-R7B accept?
The GC160A24-R7B accepts a universal AC input range of 85 to 264VAC, and it also supports 120 to 370VDC input. That wide input range helps it work across many regional power environments without needing a separate input-specific version.
What connector type does the GC160A24-R7B use on the DC output side?
This model uses a Power DIN 4P locking DC plug in the R7B configuration. Buyers who need that specific locking plug style should verify that their equipment matches the R7B connector format before purchase.
Can the GC160A24-R7B be used in demanding temperature conditions?
The specified working temperature range is -30°C to +70°C, with reference to the derating curve. That gives it a broader operating range than many general indoor-only adapters, but performance at higher temperatures should be considered within the stated derating guidance.
What protection features are included in the GC160A24-R7B?
The GC160A24-R7B includes short circuit, overload, over-voltage, and over-temperature protection. Its overload protection is rated at 90 to 110% constant current with auto-recovery, while over-voltage protection shuts down the output and requires re-powering to recover.
What are the physical size and cable details of the GC160A24-R7B?
The enclosure measures 175 x 72 x 35 mm, and the unit weight is listed as 0.7 kg. The output cable length is 120 cm and uses UL2464 18AWG 4-conductor cable.
What makes the GC160A24-R7B different from a basic desktop power adapter?
Compared with a basic adapter, this model adds features aimed at industrial and battery-charging use, including active PFC, up to 94% efficiency, 2-stage charging behavior, and a locking Power DIN 4P output plug. It also includes Class I grounding, low no-load power consumption under 1W, and charging-status LED indication.
