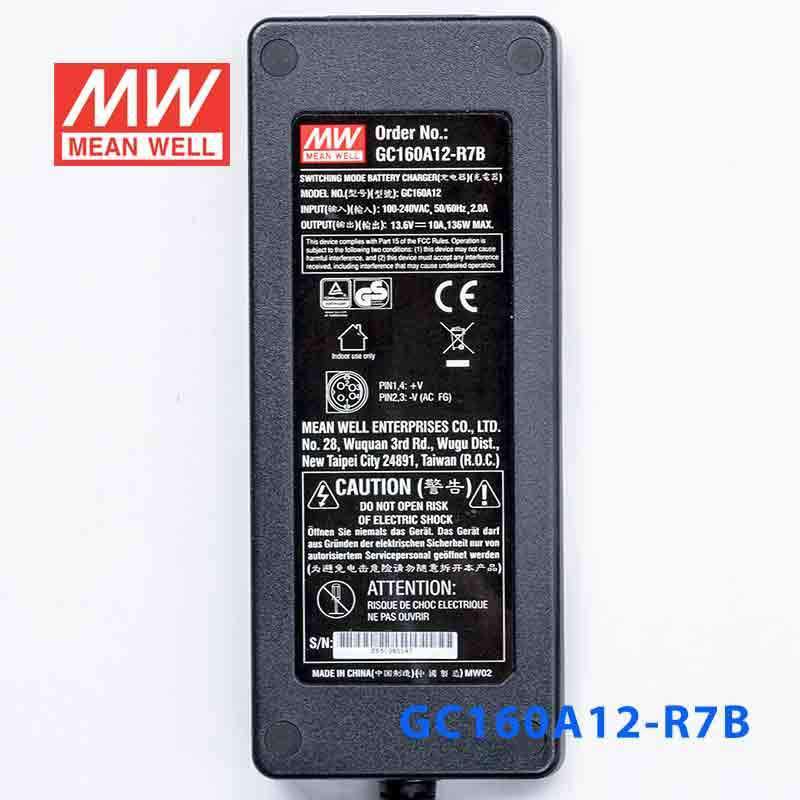

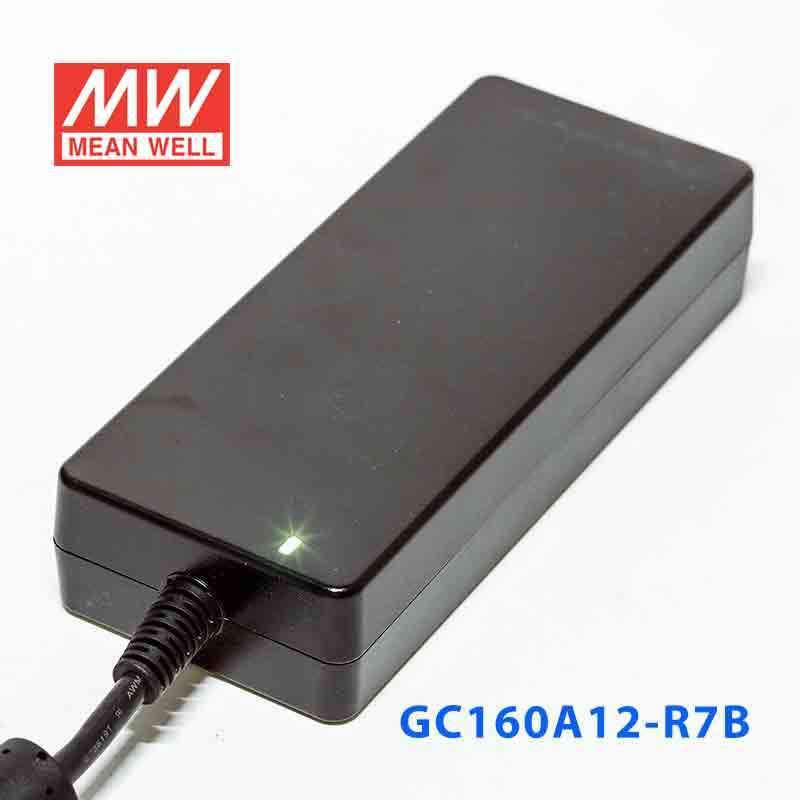

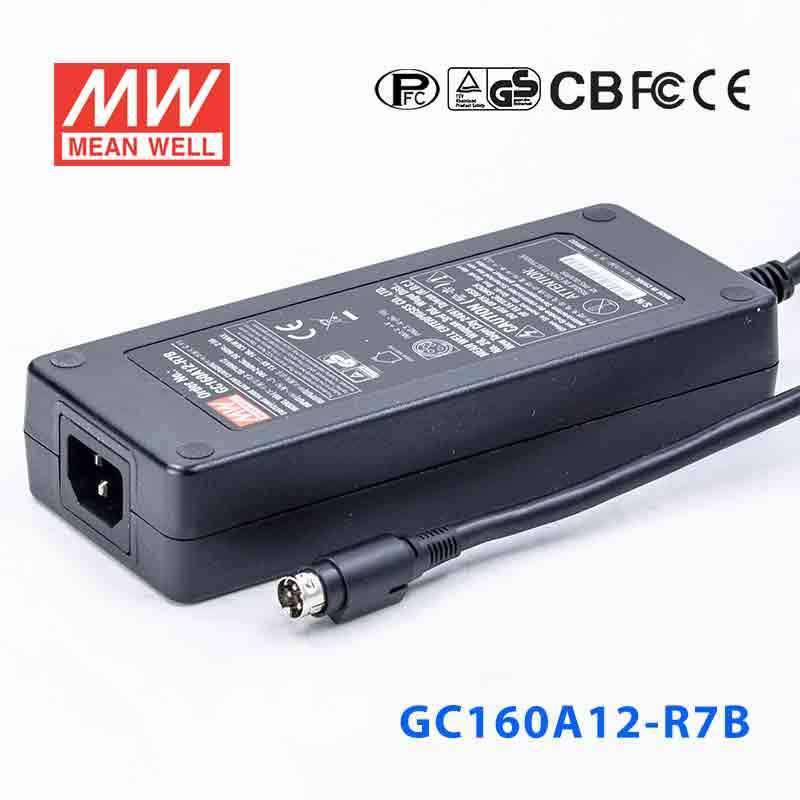

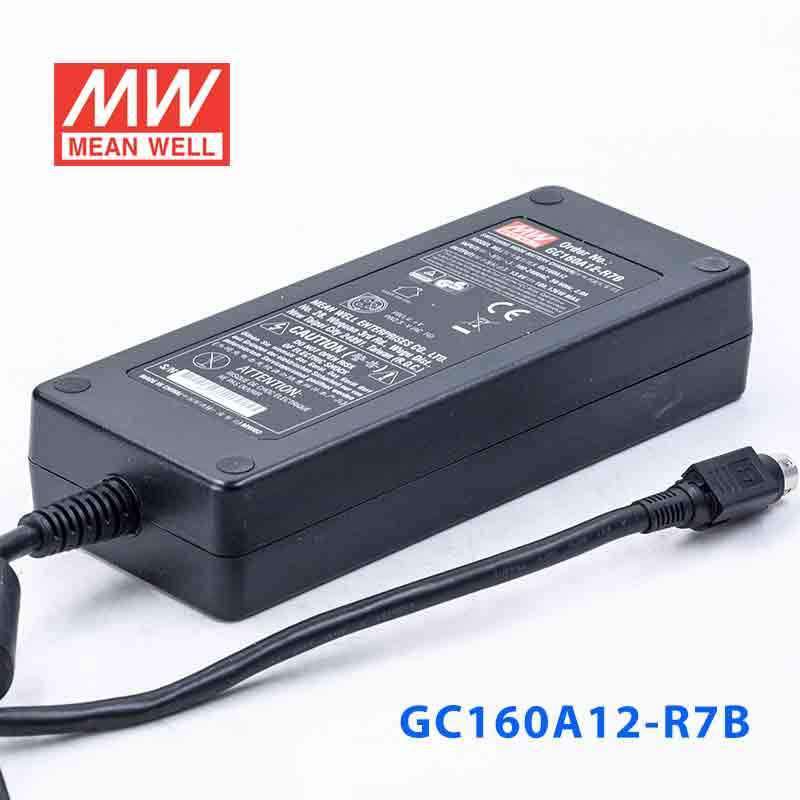

Mean Well GC160A12-R7B Portable Chargers 136W 13.6V 10A - Green Adaptor
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well GC160A12-R7B Portable Chargers 136W 13.6V 10A - Green Ada...
The GC160A12 is a 160W Mean Well power converter.
Key Features
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGC Series
-
Power Rating136 Watt
-
Output Voltage13.6 Volt
-
Rated Current10 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length6.89 in
-
Width2.83 in
-
Height1.38 in
-
Weight1.54 lb
::specification::
Frequently Asked Questions
What are the main output ratings of the Mean Well GC160A12-R7B?
This model is rated at 136W with a 13.6V DC output and 10A rated current. It is a portable charger and AC-DC power supply designed for applications that need that specific voltage and current level.
What kind of applications is the GC160A12-R7B typically used for?
The GC160A12-R7B is aimed at portable charging and power supply use where a regulated 13.6V output is required. Its 2-stage charging characteristic and portable enclosed design make it suitable for commercial and industrial battery charging contexts that match its electrical ratings.
What input range does this charger support?
This unit accepts a universal AC input range of 85 to 264VAC and also supports 120 to 370VDC input. That wide range makes it suitable for use across different mains environments without needing a separate input-voltage version.
Can the GC160A12-R7B be used in demanding temperature conditions?
It has a specified working temperature range of -30°C to +70°C, subject to the product's derating curve. That gives it a wider operating range than many general-purpose indoor power supplies, which can matter in harsher commercial environments.
What protection and safety features are included in this model?
The GC160A12-R7B includes short circuit, overload, over-voltage, and over-temperature protection. It also features active PFC, Class I construction with earth pin, and approvals including EN60950-1, along with listed EMC compliance standards.
What connector style does the GC160A12-R7B use on the output side?

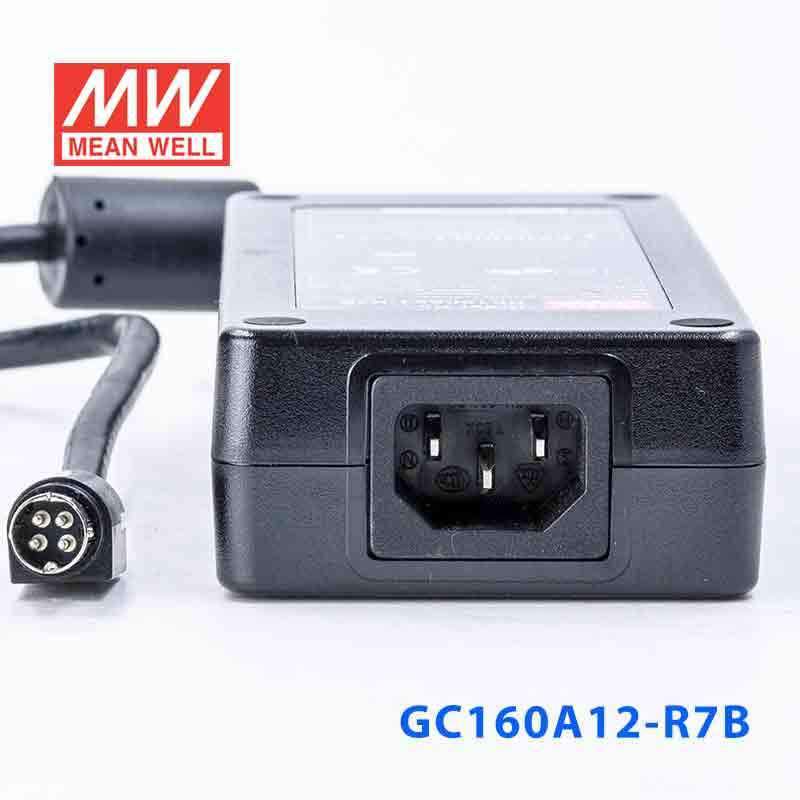

This version uses a standard Power DIN 4P lock-type DC plug identified as R7B. Buyers should confirm that their equipment is designed for this plug style before ordering, since connector format matters as much as voltage and current.
