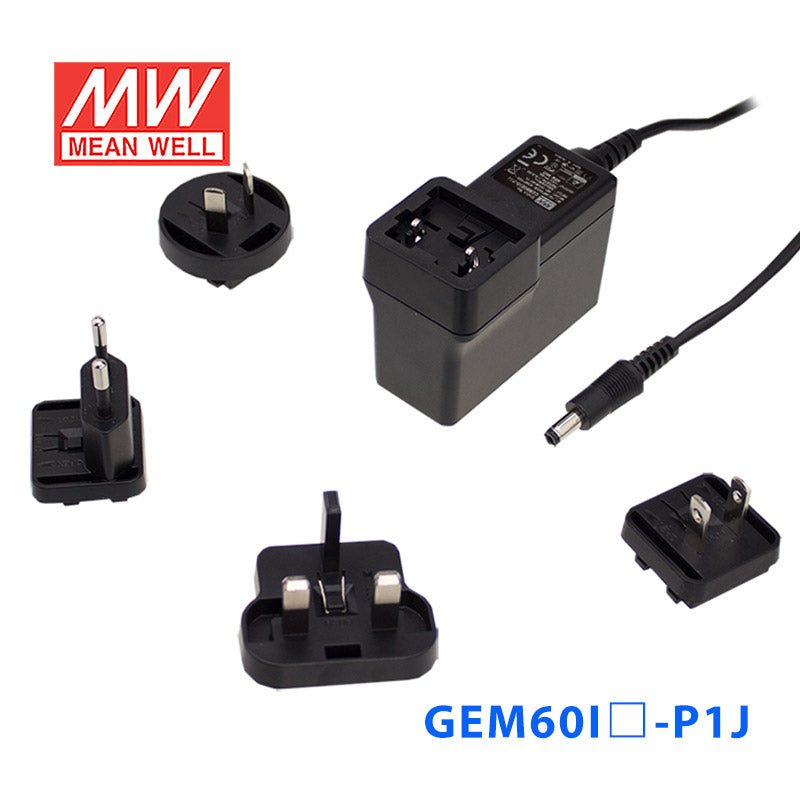

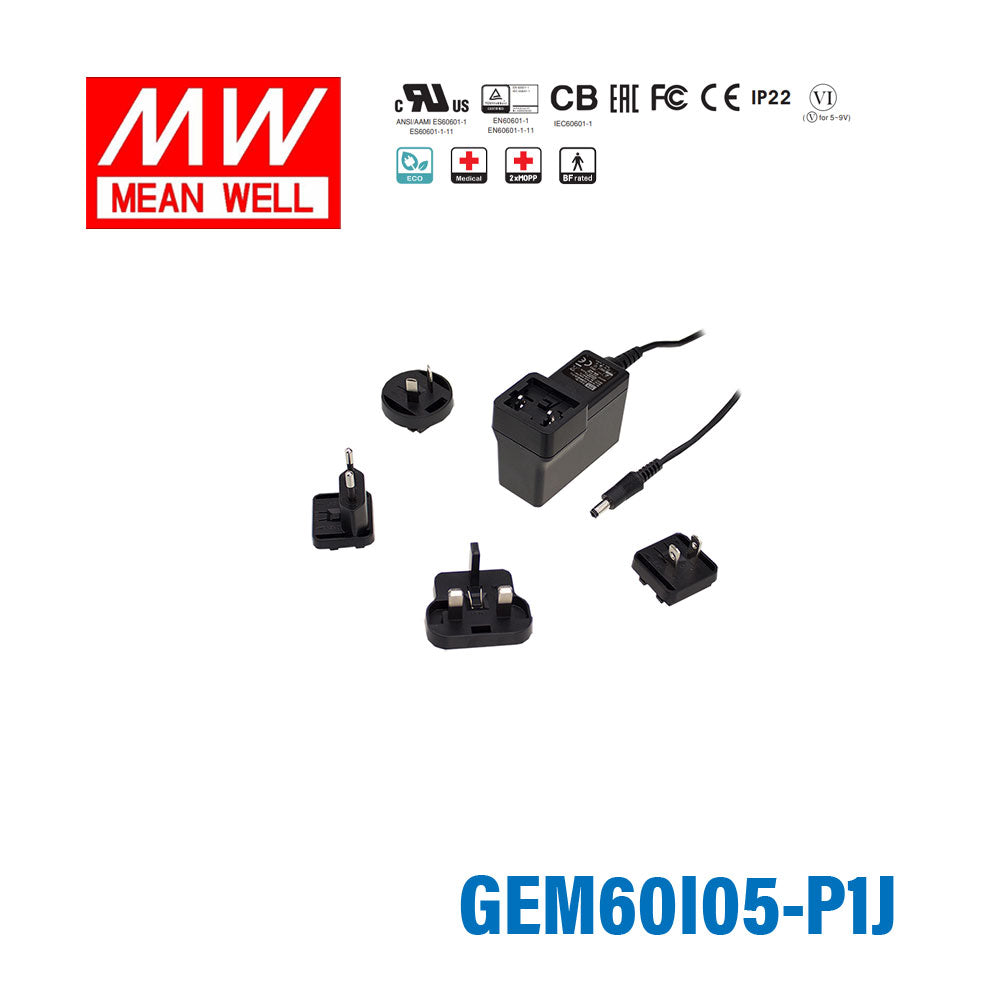

Mean Well GEM60I05-P1J Power Supply 30W 5V
Description
Description
The GEM60I05 is a 60W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGEM Series
-
Power Rating30 Watt
-
Output Voltage5 Volt
-
Rated Current6 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.97 in
-
Width2.21 in
-
Height1.54 in
-
Weight0.44 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GEM60I05-P1J for a 5V embedded controller or SBC-based industrial device?
Yes, if the equipment requires constant 5V DC and the total load does not exceed 6A or 30W. This model is intended for constant-voltage output, which suits regulated 5V embedded electronics.
Is this a good fit for 5V industrial IoT gateways or edge electronics?
It can be, provided the gateway or edge device is designed for 5V input and stays within the 6A output current and 30W power limit. Its 80-264VAC input range is also useful where AC supply conditions vary by site.
Can the GEM60I05-P1J power multiple small 5V automation modules from one supply?
Yes, if the combined 5V load remains within 6A and 30W. For multi-module 5V control electronics, the key selection check is the total current and power budget rather than the number of modules.
Would this work for 5V test, measurement, or interface electronics in an industrial bench setup?
Yes, for bench or fixture electronics that need constant 5V DC and draw no more than 6A or 30W. The compact 75.5 x 56.2 x 39.1 mm form factor can also help in dense equipment layouts.
Can the GEM60I05-P1J be used outdoors or in demanding temperature conditions?
The operating temperature range is -30 to +70 C, so the temperature spec supports a wide working range. No IP rating is listed in the provided specs, so outdoor or washdown suitability is not established here.
Other GEM60 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GEM60I48-P1J Power Supply 60W 48V | 60W | 48V | 1.25A | Indoor | $33.04 | View |
| Mean Well GEM60I24-P1J Power Supply 60W 24V | 60W | 24V | 2.5A | Indoor | $33.04 | View |
| Mean Well GEM60I18-P1J Power Supply 60W 18V | 60W | 18V | 3.33A | Indoor | $33.04 | View |
| Mean Well GEM60I15-P1J Power Supply 60W 15V | 60W | 15V | 4A | Indoor | $33.04 | View |
| Mean Well GEM60I12-P1J Power Supply 54W 12V | 54W | 12V | 4.5A | Indoor | $33.04 | View |
| Mean Well GEM60I09-P1J Power Supply 49.5W 9V | 49.5W | 9V | 5.5A | Indoor | $33.04 | View |
| Mean Well GEM60I07-P1J Power Supply 45W 7.5V | 45W | 7.5V | 6A | Indoor | $33.04 | View |
