Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

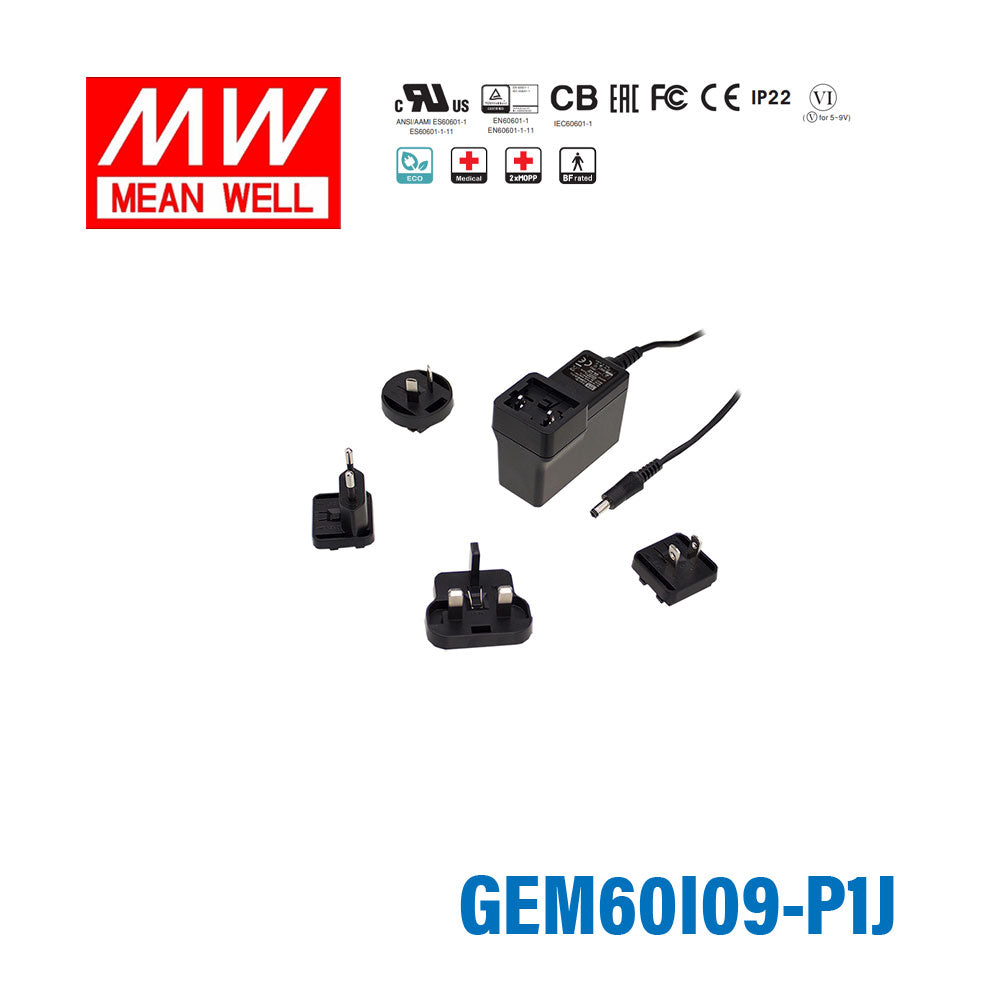

Mean Well GEM60I09-P1J Power Supply 49.5W 9V
Description
Description
The GEM60I09 is a 60W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGEM Series
-
Power Rating49.5 Watt
-
Output Voltage9 Volt
-
Rated Current5.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.97 in
-
Width2.21 in
-
Height1.54 in
-
Weight0.44 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GEM60I09-P1J for a 9V embedded system or industrial interface device?
Yes, if the device needs constant 9V DC and the load remains within 5.5A and 49.5W. This makes it suitable for 9V electronics that require regulated constant-voltage input.
Is this power supply suitable for 9V control, sensor, or monitoring equipment?
It can be used for 9V control or monitoring equipment as long as the total demand does not exceed 5.5A or 49.5W. The correct match is based on the equipment's required voltage and total load, not just the connector style.
Can the GEM60I09-P1J support multiple 9V boards from one supply?
Yes, if all 9V boards together stay within the rated 5.5A output current and 49.5W total power. Since this is a constant-voltage model, each connected board must be designed for 9V input.
Would this work for compact 9V electronics in industrial or IT equipment housings?
Yes, for compact 9V loads that stay inside the 49.5W rating. Its 75.5 x 56.2 x 39.1 mm dimensions and 0.2 kg weight can be useful where equipment space is constrained.
Can the GEM60I09-P1J be used in outdoor or temperature-variable locations?
The listed operating temperature is -30 to +70 C, so the temperature range is broad. No IP rating is provided in the available specs, so outdoor or moisture-exposed use should not be assumed from this data alone.
Other GEM60 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GEM60I48-P1J Power Supply 60W 48V | 60W | 48V | 1.25A | Indoor | $33.04 | View |
| Mean Well GEM60I24-P1J Power Supply 60W 24V | 60W | 24V | 2.5A | Indoor | $33.04 | View |
| Mean Well GEM60I18-P1J Power Supply 60W 18V | 60W | 18V | 3.33A | Indoor | $33.04 | View |
| Mean Well GEM60I15-P1J Power Supply 60W 15V | 60W | 15V | 4A | Indoor | $33.04 | View |
| Mean Well GEM60I12-P1J Power Supply 54W 12V | 54W | 12V | 4.5A | Indoor | $33.04 | View |
| Mean Well GEM60I07-P1J Power Supply 45W 7.5V | 45W | 7.5V | 6A | Indoor | $33.04 | View |
| Mean Well GEM60I05-P1J Power Supply 30W 5V | 30W | 5V | 6A | Indoor | $33.04 | View |
