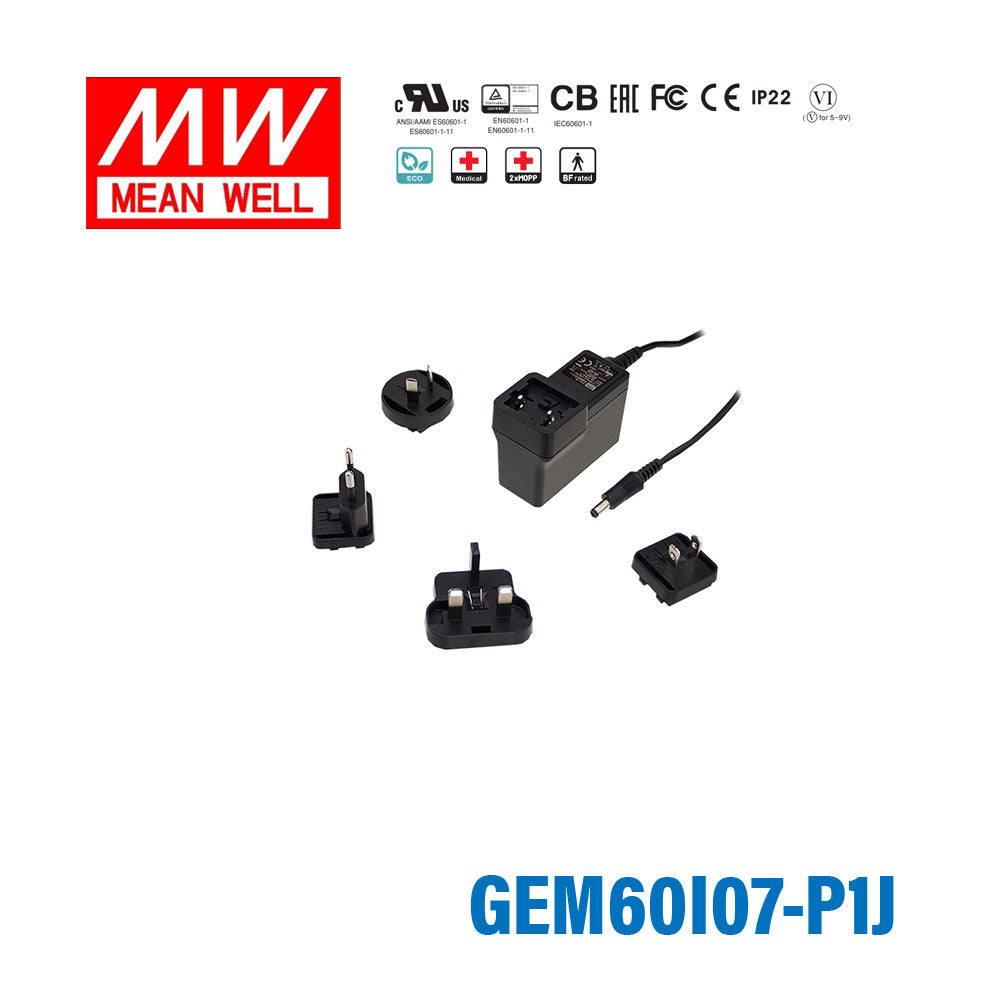

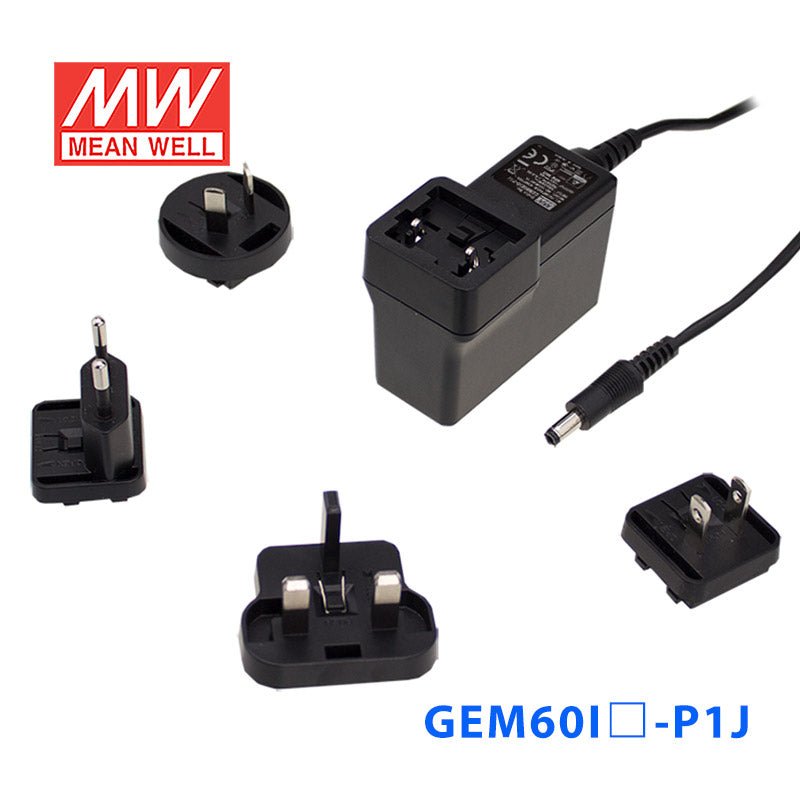

Mean Well GEM60I07-P1J Power Supply 45W 7.5V

Name: Mean Well GEM60I07-P1J Power Supply 45W 7.5V
Brand: Mean Well
SKU: GEM60I07-P1J
Price: 31.38 USD
Availability: InStock

SKU:

GEM60I07-P1J

$31.38 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Interchangeable AC plugs (plug kit sold separately)

Medical safety approved(2 xMOPP) according to 60601-1

Extremely low leakage current

No-load power consumption <0.15W

Energy efficiency Level V

-30 ~ +70°C wide range working temperature

Class II power (without earth pin)

Protections: Short circuit/ Overload/ Over voltage

Fully enclosed plastic case

3 years warranty

General Specification

AC input voltage range	80~264VAC; 113 ~ 370VDC
AC inrush current (max.)	Cold start, 50A / 115VAC; 100A / 230VAC
Setup, rise, hold up time	500ms, 30ms, 10ms at 230VAC input
Overload protection	105 ~ 160% rated output power; Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over-voltage protection	110%~140% rated output voltage; Protection type: Clamp by Zener diode, output short
Withstand voltage	I/P-O/P:5656VDC
Working temperature	-30~+70°C (refer to output derating curve)
Safety standards	TUV BS EN/EN60601-1/BS ANSI/AAMI ES60601-1-11
EMC standards	EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Length of output cable	UL2468 22AWG 1200mm for 5-9V, UL2468 18AWG 1800mm for 12-24V
Dimension (LxWxH)	75.5x 39.1x 56.2 mm
Standard DC plug	P1J: 2.1ID x 5.5OD x 11L, tuning fork type

Specifications

Brand

Mean Well
Series

GEM Series
Power Rating

45 Watt
Output Voltage

7.5 Volt
Rated Current

6 Ampere
Input Voltage

80V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,FCC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

2.97 in
Width

2.21 in
Height

1.54 in
Weight

0.44 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features

Interchangeable AC plugs (plug kit sold separately)

Medical safety approved(2 xMOPP) according to 60601-1

Extremely low leakage current

No-load power consumption <0.15W

Energy efficiency Level V

-30 ~ +70°C wide range working temperature

Class II power (without earth pin)

Protections: Short circuit/ Overload/ Over voltage

Fully enclosed plastic case

3 years warranty

General Specification

AC input voltage range

80~264VAC; 113 ~ 370VDC

AC inrush current (max.)

Cold start, 50A / 115VAC; 100A / 230VAC

Setup, rise, hold up time

500ms, 30ms, 10ms at 230VAC input

Overload protection

105 ~ 160% rated output power; Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over-voltage protection

110%~140% rated output voltage; Protection type: Clamp by Zener diode, output short

Withstand voltage

I/P-O/P:5656VDC

Working temperature

-30~+70°C (refer to output derating curve)

Safety standards

TUV BS EN/EN60601-1/BS ANSI/AAMI ES60601-1-11

EMC standards

EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11

Length of output cable

UL2468 22AWG 1200mm for 5-9V, UL2468 18AWG 1800mm for 12-24V

Dimension (LxWxH)

75.5x 39.1x 56.2 mm

Standard DC plug

P1J: 2.1ID x 5.5OD x 11L, tuning fork type
