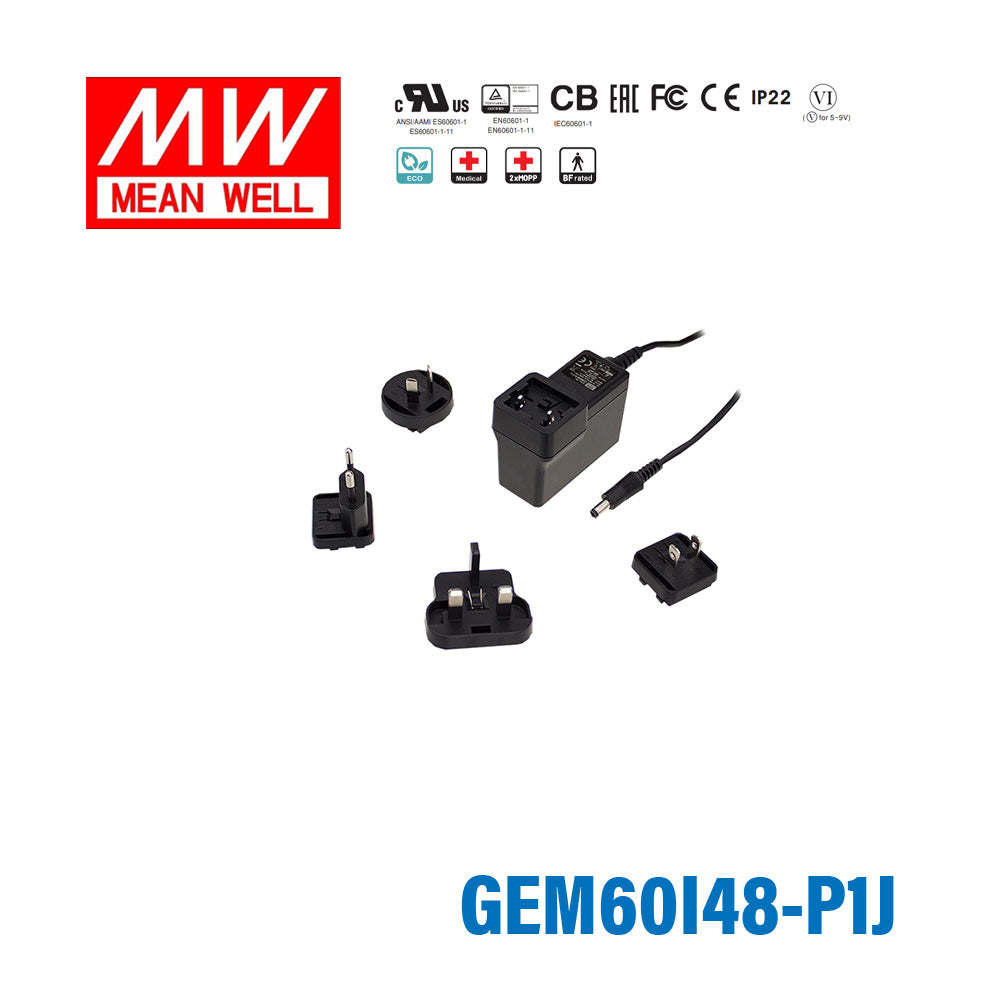

Mean Well GEM60I48-P1J Power Supply 60W 48V
Description
Description
The GEM60I48 is a 60W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGEM Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.97 in
-
Width2.21 in
-
Height1.54 in
-
Weight0.44 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GEM60I48-P1J for 48V telecom or networking equipment?
Yes, if the equipment is designed for a constant 48V DC input. This supply provides 48V output at up to 1.25A with a total output rating of 60W, which fits lower-power 48V systems within those limits.
Is the GEM60I48-P1J suitable for 48V industrial communication devices or control electronics?
It can be used where the load calls for regulated 48V constant voltage and stays below 1.25A and 60W. That makes it more appropriate for lighter 48V industrial or communications loads than for higher-current 48V equipment.
Can this model power 48V embedded systems or low-power distribution devices?
Yes, as long as the equipment is specified for constant 48V DC input. The available output is limited to 1.25A and 60W, so load sizing matters more here than on the lower-voltage versions.
What should I verify before selecting this 48V power supply?
Confirm that your device requires constant 48V output and that its total demand does not exceed 1.25A or 60W. Those are the defining output limits for this model.
Can the GEM60I48-P1J be used in exposed outdoor conditions?
The specified operating temperature range is -30°C to +70°C, so the unit covers a wide ambient temperature range. The provided specs do not include an IP rating, so they do not document weather, water, or dust protection for exposed outdoor use.
Other GEM60 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GEM60I24-P1J Power Supply 60W 24V | 60W | 24V | 2.5A | Indoor | $33.04 | View |
| Mean Well GEM60I18-P1J Power Supply 60W 18V | 60W | 18V | 3.33A | Indoor | $33.04 | View |
| Mean Well GEM60I15-P1J Power Supply 60W 15V | 60W | 15V | 4A | Indoor | $33.04 | View |
| Mean Well GEM60I12-P1J Power Supply 54W 12V | 54W | 12V | 4.5A | Indoor | $33.04 | View |
| Mean Well GEM60I09-P1J Power Supply 49.5W 9V | 49.5W | 9V | 5.5A | Indoor | $33.04 | View |
| Mean Well GEM60I07-P1J Power Supply 45W 7.5V | 45W | 7.5V | 6A | Indoor | $33.04 | View |
| Mean Well GEM60I05-P1J Power Supply 30W 5V | 30W | 5V | 6A | Indoor | $33.04 | View |
