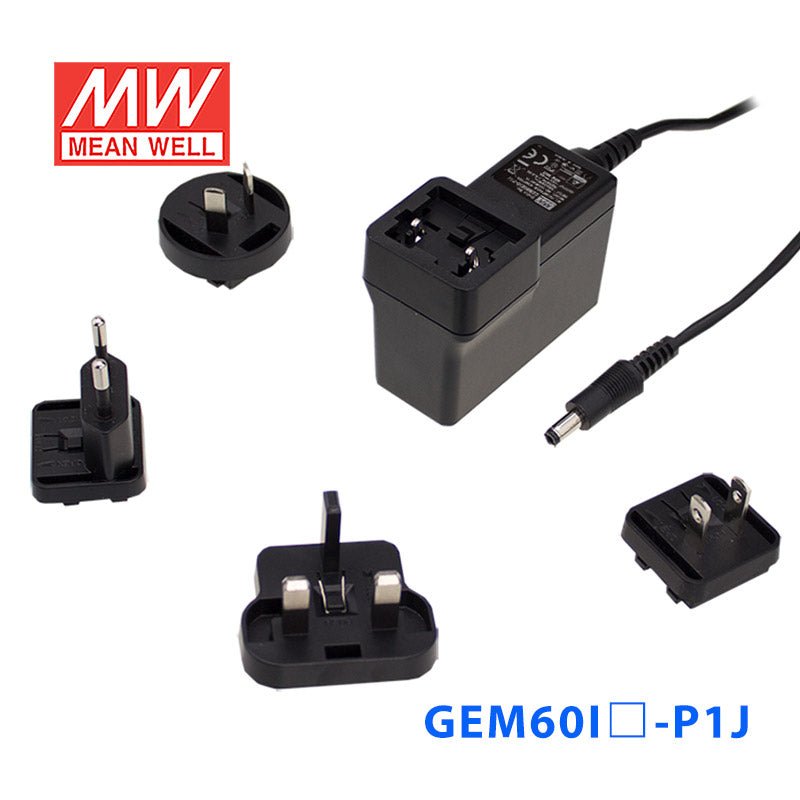

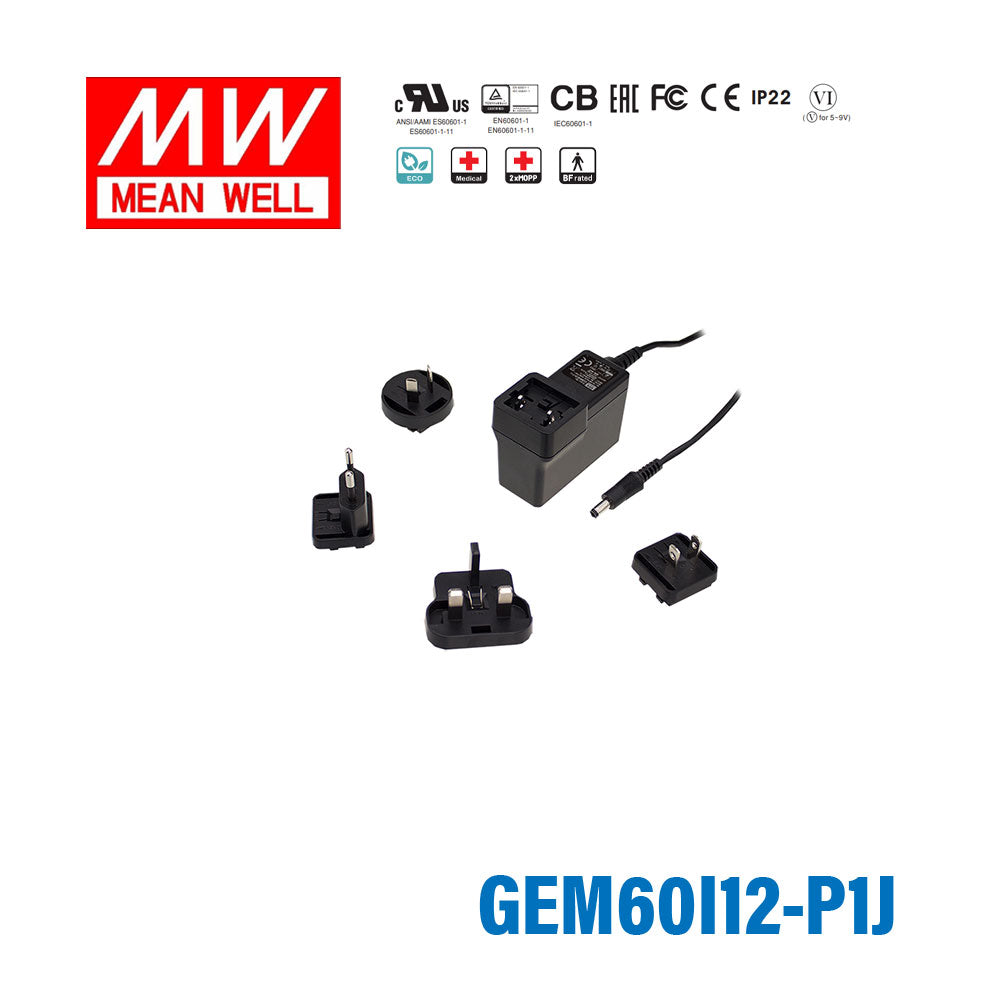

Mean Well GEM60I12-P1J Power Supply 54W 12V
Description
Description
The GEM60I12 is a 60W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGEM Series
-
Power Rating54 Watt
-
Output Voltage12 Volt
-
Rated Current4.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.97 in
-
Width2.21 in
-
Height1.54 in
-
Weight0.44 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GEM60I12-P1J for a 12V automation panel accessory or control device?
Yes, if the load requires constant 12V DC and stays within 4.5A and 54W. This model is a constant-voltage supply, so it is intended for 12V equipment rather than current-driven loads.
Is this suitable for 12V embedded systems, industrial displays, or interface electronics?
It can be used for 12V embedded or interface electronics that are specified for constant 12V input and draw no more than 4.5A or 54W. The wide 80-264VAC input range also supports deployment across common AC supply ranges.
Can the GEM60I12-P1J power small 12V LED or low-voltage equipment loads?
Yes, for 12V constant-voltage loads whose total requirement stays within 4.5A and 54W. The main check is that the connected load is truly a 12V constant-voltage load and not a different voltage or control method.
How do I know if 54W is enough for my 12V device group?
Add the total 12V load and make sure it does not exceed 4.5A or 54W. If the combined demand stays within those ratings, this supply is sized appropriately from an electrical-output standpoint.
Is the GEM60I12-P1J meant for outdoor environments?
The published operating temperature range is -30 to +70 C, which covers a wide temperature span. However, no IP rating is listed here, so the specs do not confirm outdoor or water-exposed suitability.
Other GEM60 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GEM60I48-P1J Power Supply 60W 48V | 60W | 48V | 1.25A | Indoor | $33.04 | View |
| Mean Well GEM60I24-P1J Power Supply 60W 24V | 60W | 24V | 2.5A | Indoor | $33.04 | View |
| Mean Well GEM60I18-P1J Power Supply 60W 18V | 60W | 18V | 3.33A | Indoor | $33.04 | View |
| Mean Well GEM60I15-P1J Power Supply 60W 15V | 60W | 15V | 4A | Indoor | $33.04 | View |
| Mean Well GEM60I09-P1J Power Supply 49.5W 9V | 49.5W | 9V | 5.5A | Indoor | $33.04 | View |
| Mean Well GEM60I07-P1J Power Supply 45W 7.5V | 45W | 7.5V | 6A | Indoor | $33.04 | View |
| Mean Well GEM60I05-P1J Power Supply 30W 5V | 30W | 5V | 6A | Indoor | $33.04 | View |
