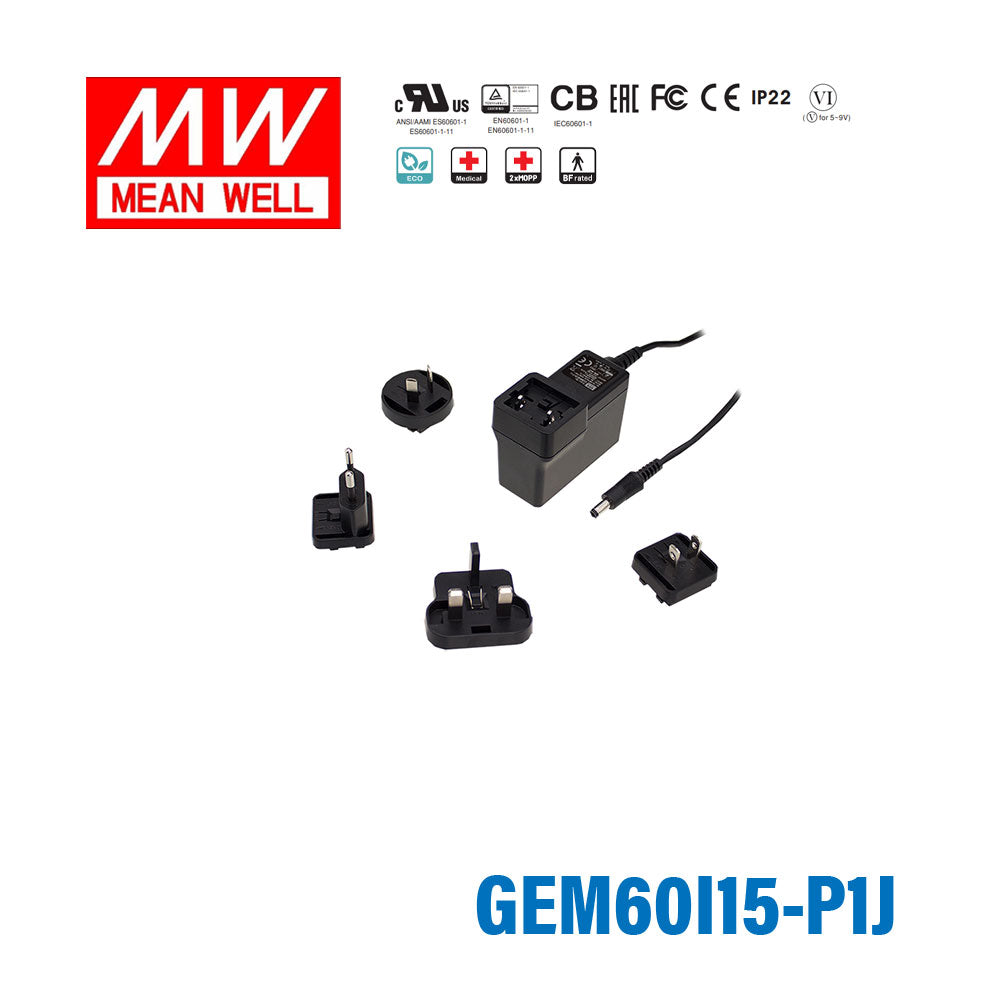

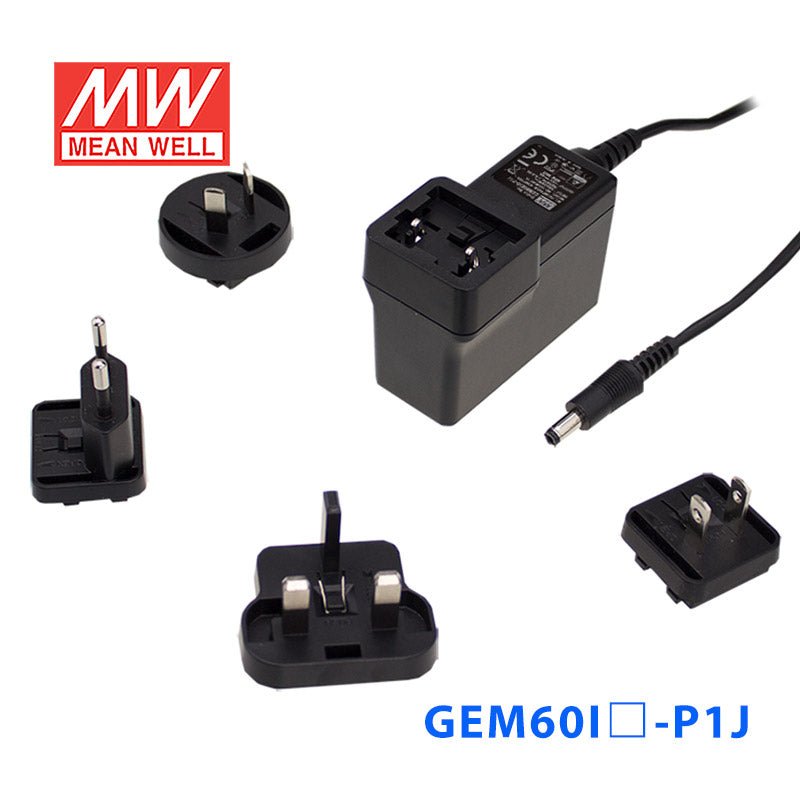

Mean Well GEM60I15-P1J Power Supply 60W 15V
Description
Description
The GEM60I15 is a 60W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGEM Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.97 in
-
Width2.21 in
-
Height1.54 in
-
Weight0.44 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GEM60I15-P1J for 15V industrial control or automation devices?
Yes, this model is a constant voltage power supply with a 15V output, 4A output current, and 60W power rating. That makes it a fit for 15V industrial control, automation, or embedded equipment that needs regulated 15V DC and stays within those output limits.
Is the GEM60I15-P1J a good choice for 15V HMI, sensor, or interface hardware?
It can be, as long as the equipment is designed for a constant 15V supply and the total load does not exceed 4A or 60W. Buyers often use this type of supply for control-side electronics where a stable 15V DC rail is required from an 80-264VAC input.
Can this 15V power supply be used for embedded systems or test fixtures that need 15V DC?
Yes, if the embedded system or fixture expects constant voltage operation at 15V. The available output is 4A with a total power limit of 60W, so the connected load needs to remain within those published specs.
How do I know if 60W at 15V is enough for my application?
Check that your equipment requires 15V constant voltage and that its total draw stays at or below 4A and 60W. If the load exceeds either 4A or 60W, this model is undersized for that application.
Is the GEM60I15-P1J suitable for outdoor or harsh-environment use?
The published operating temperature range is -30°C to +70°C, which helps for temperature screening. However, no IP rating is listed in the provided specs, so the product data does not document outdoor exposure or protection against water and dust.
Other GEM60 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GEM60I48-P1J Power Supply 60W 48V | 60W | 48V | 1.25A | Indoor | $33.04 | View |
| Mean Well GEM60I24-P1J Power Supply 60W 24V | 60W | 24V | 2.5A | Indoor | $33.04 | View |
| Mean Well GEM60I18-P1J Power Supply 60W 18V | 60W | 18V | 3.33A | Indoor | $33.04 | View |
| Mean Well GEM60I12-P1J Power Supply 54W 12V | 54W | 12V | 4.5A | Indoor | $33.04 | View |
| Mean Well GEM60I09-P1J Power Supply 49.5W 9V | 49.5W | 9V | 5.5A | Indoor | $33.04 | View |
| Mean Well GEM60I07-P1J Power Supply 45W 7.5V | 45W | 7.5V | 6A | Indoor | $33.04 | View |
| Mean Well GEM60I05-P1J Power Supply 30W 5V | 30W | 5V | 6A | Indoor | $33.04 | View |
