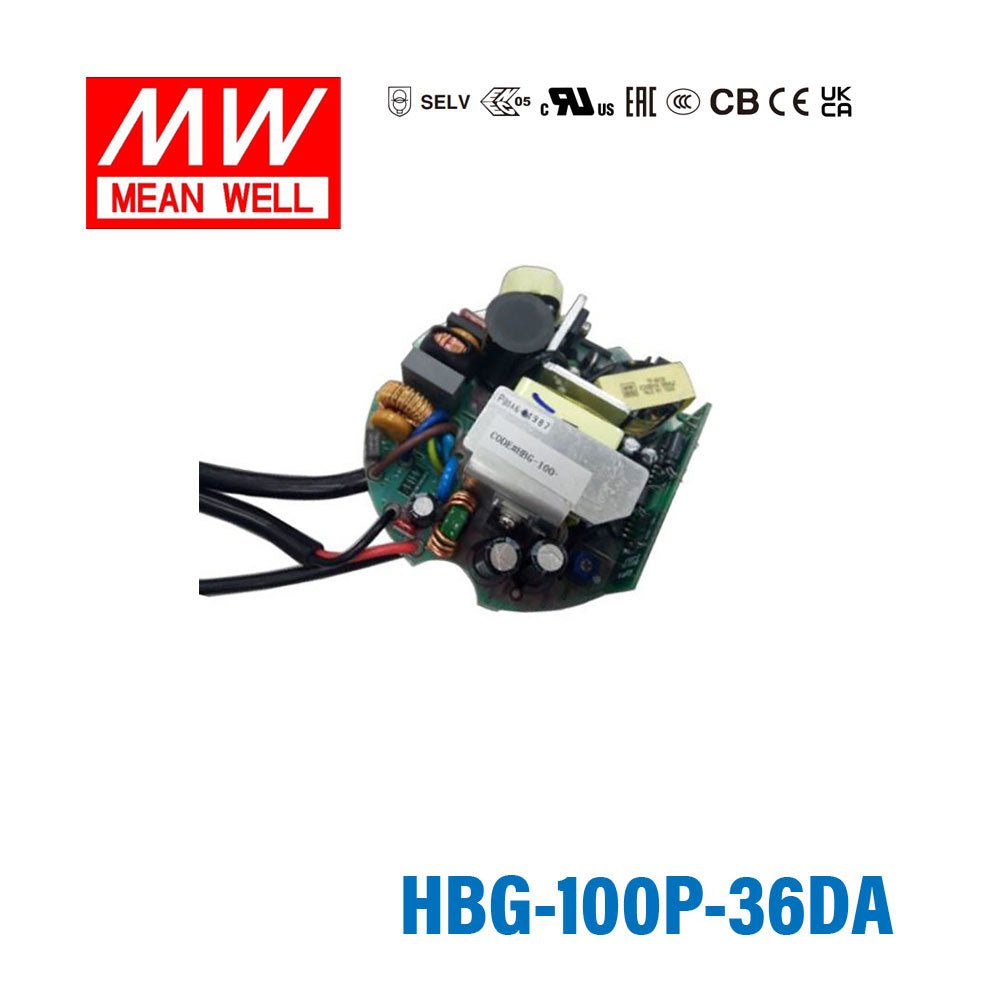

Mean Well HBG-100P-36DA Power Supply 100W 36V PCB Type - DALI
Description
Description
The HBG-100P is a 100W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHBGP Series
-
Power Rating97.2 Watt
-
Output Voltage37 Volt
-
Rated Current2.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.12 in
-
Width5.12 in
-
Height2.62 in
-
Weight2.6 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well HBG-100P-36DA designed for?
The HBG-100P-36DA is a 100W constant current LED driver with DALI dimming control. It is intended for LED lighting applications that need a circular PCB type driver with regulated output and dimming capability.
Does this model support DALI dimming?
Yes. This version is the DALI variant in Mean Well's HBG-100 series, identified by the model suffix HBG-100P-36DA. It is suited to projects that require DALI-based lighting control rather than a non-dimming or alternate dimming version.
What are the main electrical ratings of the HBG-100P-36DA?
This model is rated at 100W class, with listed product data showing 97.2W power, 37V output voltage, and 2.7A rated current. It also has a wide input range of 90 to 295VAC or 127 to 417VDC.
Is this LED driver suitable for demanding environments?
It is built for tough operating conditions, with a listed working temperature range of -40 to +70°C in the description. The product data also lists a temperature range up to 85°C, so buyers should confirm the intended operating conditions against their project requirements.
What makes this model different from standard enclosed power supplies?
This unit is a constant current LED driver rather than a general-purpose fixed-voltage power supply. It also uses a circular PCB type design, includes active PFC, supports DALI dimming, and is specified as a Class 2 power unit with Class II design.
What safety and compliance standards are listed for this model?
The description lists safety standards BS EN/EN61347-1 and BS EN/EN61347-2-13. EMC standards listed are EN55015, EN61000-3-2 Class C, and EN61000-3-3.
What warranty and service life are stated for the HBG-100P-36DA?
Mean Well lists a 5-year warranty for this model. The product description also states a typical lifetime greater than 50,000 hours.
