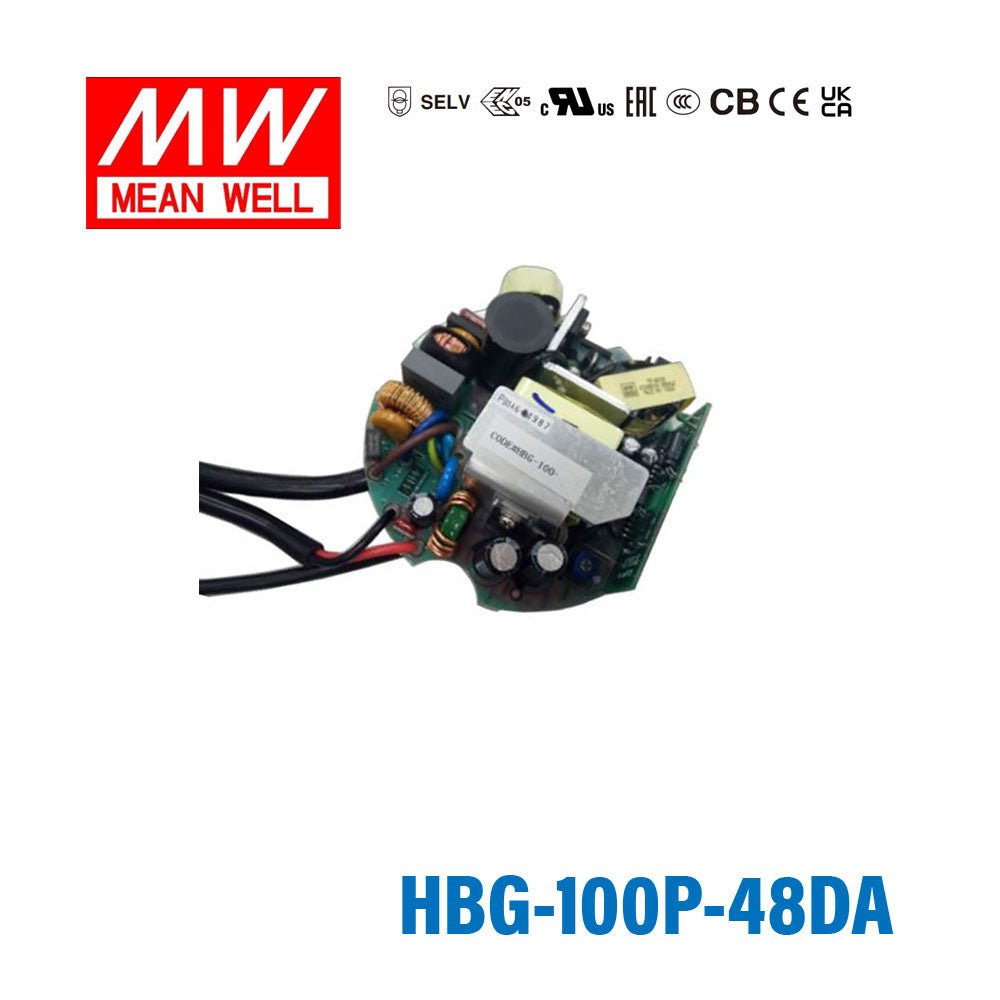

Mean Well HBG-100P-48DA Power Supply 100W 48V PCB Type - DALI
Description
Description
The HBG-100P is a 100W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHBGP Series
-
Power Rating96 Watt
-
Output Voltage49 Volt
-
Rated Current2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.12 in
-
Width5.12 in
-
Height2.62 in
-
Weight2.6 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED driver is the Mean Well HBG-100P-48DA?
The HBG-100P-48DA is a 100W constant current LED driver with DALI dimming control. It is a PCB type, circular-shape unit designed for lighting applications that need regulated current output.
What are the main electrical ratings of the HBG-100P-48DA?
This model is rated at 96W output power with a nominal output voltage of 49V and a rated current of 2.0A. Its current adjustment range is listed as 65% to 100% of rated current.
Does the HBG-100P-48DA support DALI dimming?
Yes, this model includes DALI dimming control. That makes it suitable for lighting systems where DALI compatibility is required for dimming and control integration.
What input range does the Mean Well HBG-100P-48DA accept?
The HBG-100P-48DA accepts a wide input range of 90 to 295VAC or 127 to 417VDC. It also includes built-in active power factor correction, which is useful in commercial and professional lighting applications.
Is the HBG-100P-48DA suitable for demanding environments?
This model is specified for operation from -40°C to +70°C in the general specification. It is also designed with Class II construction and includes protection such as over-current hiccup mode with auto recovery.
What physical format does the HBG-100P-48DA use?
The HBG-100P-48DA uses a circular PCB-type design. Its listed dimensions are 99mm diameter by 26mm height, which can be useful where a compact round form factor is preferred.
What warranty and service life are listed for this model?
Mean Well lists this model with a 5-year warranty. The product description also states a typical lifetime greater than 50,000 hours.
Other HBG-100P Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HBG-100P-60DA Power Supply 100W 60V PCB Type - DALI | 96W | 62V | 1.6A | IP67 | $66.15 | View |
| Mean Well HBG-100P-60B Power Supply 100W 60V PCB Type - Dimmable | 96W | 62V | 1.6A | IP67 | $43.57 | View |
| Mean Well HBG-100P-60A Power Supply 100W 60V PCB Type - Adjustable | 96W | 62V | 1.6A | IP65 | $56.33 | View |
| Mean Well HBG-100P-48B Power Supply 100W 48V PCB Type - Dimmable | 96W | 49V | 2A | IP67 | $43.57 | View |
| Mean Well HBG-100P-48A Power Supply 100W 48V PCB Type - Adjustable | 96W | 49V | 2A | IP65 | $56.13 | View |
| Mean Well HBG-100P-36DA Power Supply 100W 36V PCB Type - DALI | 97.2W | 37V | 2.7A | IP67 | $66.15 | View |
| Mean Well HBG-100P-36B Power Supply 100W 36V PCB Type - Dimmable | 97.2W | 37V | 2.7A | IP67 | $54.30 | View |
| Mean Well HBG-100P-36A Power Supply 100W 36V PCB Type - Adjustable | 97.2W | 37V | 2.7A | IP65 | $56.33 | View |
