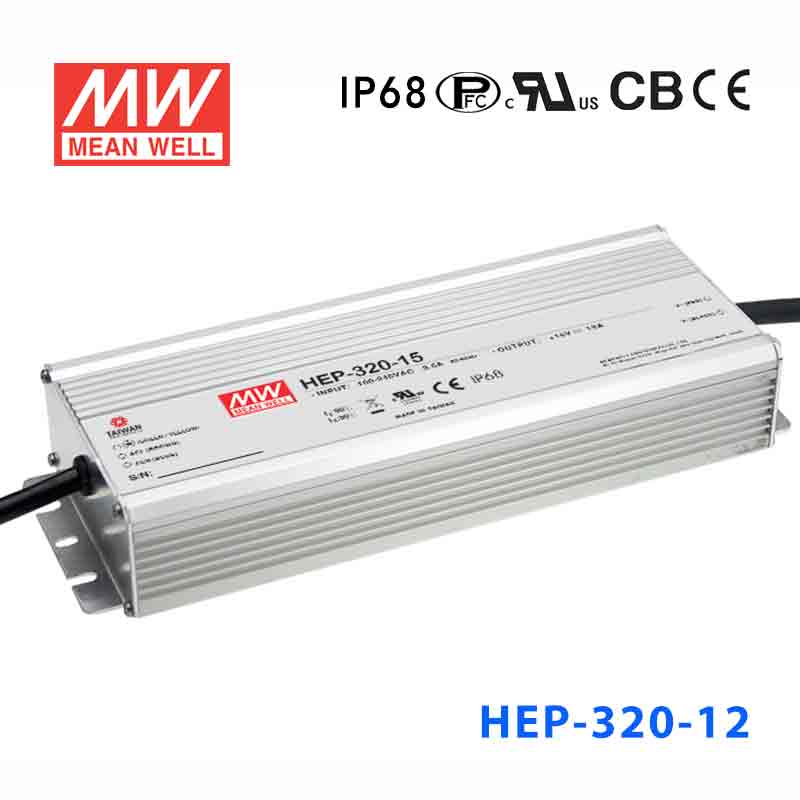

Mean Well HEP-320-12 Power Supply 264W 12V

fanless design, high efficiency up to 96%, rugged metal case with IP65 design(IP68 option available), withstand 10G vibration, suitable for harsh environment
$152.08 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 305VAC) / Full range
Built-in active PFC function
High efficiency up to 95%
Fanless design, cooling by free air convection
-55~+70ºC wide operating range
Aluminum case and filling with heat-conducted glue
IP65 design, optional IP68 rated model available
Meet 6KV surge immunity level
Withstand the 10G vibration test
Operating altitude up to 5000 meters
Protections: Short circuit / Over current / Over voltage / Over temperature
6 years warranty



General Specification

AC input voltage range 85~264VAC (277VAC operational); 120~370VDC(390VDC operational)
AC inrush current (max.) COLD START 70A at 230VAC
DC adjustment range -10%~+10% rated output voltage (A-Type only)
Current adjustment range 60%~100%
Over current protection 105%~125% constant current limiting, auto-recovery
Over-voltage protection 105%~135% rated output voltage
Setup, rise, hold up time 2500ms, 80ms, 15ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75KVAC, I/P-FG: 2KVAC, O/P-FG: 1.5KVAC
Working temperature -55~+70ºC (refer to output derating curve)
Safety standards UL62368-1,IEC62368-1, IP65 (or IP68 for HEP-320 Blank-Type), EAC TP TC 004 approved ; Design refer to BS EN/EN62368-1
EMC standards EN55022 class B, EN61000-3-2,3, EAC TP TC 020
Connection Input SJTW 18AWGx3C(30cm)
Connection Output SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm)
Dimension (LxWxH) (mm) 252x 90 x 43.8

Specifications

  • Brand
    Mean Well
  • Series
    HEP Series
  • Power Rating
    264 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    22 Ampere
  • Input Voltage
    90V~305V
  • No of Output
    1
  • Standards Met
    CB,CE,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -55°C~70°C
  • Warranty
    6 Year
  • Length
    9.92 in
  • Width
    3.54 in
  • Height
    1.72 in
  • Weight
    4.14 lb
