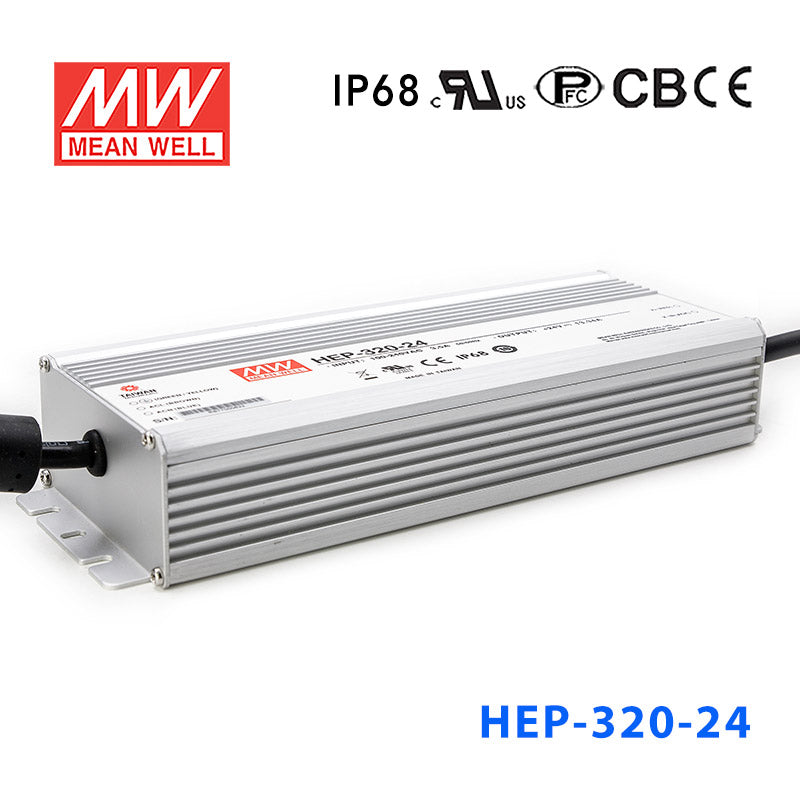

Mean Well HEP-320-24 Power Supply 320.16W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-320-24 Power Supply 320.16W 24V
The HEP-320 is a 320W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 UL62368-1 , IEC/EN62368-1, IP65 (or IP68 for HEP-320 Blank-Type) , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating320.16 Watt
-
Output Voltage24 Volt
-
Rated Current13.34 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~70°C
-
Warranty6 Year
-
Length9.92 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.14 lb
::specification::
Frequently Asked Questions
Can I use the HEP-320-24 for 24V PLCs, sensors, and industrial control equipment?
Yes, this is a 24V constant voltage power supply rated for 320.16W and 13.34A. It fits 24V industrial control loads that need more capacity than smaller 24V models in the same series.
Is the HEP-320-24 suitable for 24V automation systems installed in harsh environments?
Yes, it is built for harsh conditions with IP68 protection, a fanless design, and 10G vibration resistance. The operating range of -55°C to +70°C also supports use in extreme ambient temperatures.
Can this model support larger 24V embedded or communications equipment loads?
It can support 24V systems up to 13.34A and 320.16W, which makes it suitable for higher-load constant-voltage equipment. That places it above the HEP-240-24 at 240W and 10A, and above the HEP-150-24 at 151.2W and 6.3A.
Would the HEP-320-24 work for 24V LED or signage power requirements?
It can be used for 24V constant-voltage loads where the total demand stays within 320.16W and 13.34A. The 24V output makes it appropriate for larger 24V systems that need more available power than lower-wattage 24V supplies.
Is the HEP-320-24 appropriate for outdoor locations?
This version is rated IP68, so it is suited to outdoor, wet, and dusty environments. Its -55°C to +70°C operating range also supports very cold and very hot installation conditions.
How does the HEP-320-24 compare with other HEP-320 models?
In the HEP-320 range, the 12V model is 264W at 22A, the 15V model is 285W at 19A, the 24V model is 320.16W at 13.34A, the 36V model is 320.4W at 8.9A, the 48V model is 321.6W at 6.7A, and the 54V model is 321.3W at 5.95A. The A versions in the sibling list use those same electrical ratings, while this specific product is the IP68 24V version.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HEP-320 Models
11 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HEP-320-54 Power Supply 321.3W 54V | 321.3W | 54V | 5.95A | IP68 | $147.94 | View |
| Mean Well HEP-320-15A Power Supply 285W 15V | 285W | 15V | 19A | IP65 | $147.99 | View |
| Mean Well HEP-320-54A Power Supply 321.3W 54V | 321.3W | 54V | 5.95A | IP65 | $147.94 | View |
| Mean Well HEP-320-48A Power Supply 321.6W 48V | 321.6W | 48V | 6.7A | IP65 | $147.95 | View |
| Mean Well HEP-320-48 Power Supply 321.6W 48V | 321.6W | 48V | 6.7A | IP68 | $152.08 | View |
| Mean Well HEP-320-36A Power Supply 320.4W 36V | 320.4W | 36V | 8.9A | IP65 | $147.95 | View |
| Mean Well HEP-320-36 Power Supply 320.4W 36V | 320.4W | 36V | 8.9A | IP68 | $152.08 | View |
| Mean Well HEP-320-24A Power Supply 320.16W 24V | 320.16W | 24V | 13.34A | IP65 | $147.95 | View |
| Mean Well HEP-320-15 Power Supply 285W 15V | 285W | 15V | 19A | IP68 | $152.08 | View |
| Mean Well HEP-320-12A Power Supply 264W 12V | 264W | 12V | 22A | IP65 | $147.95 | View |
| Mean Well HEP-320-12 Power Supply 264W 12V | 264W | 12V | 22A | IP68 | $152.08 | View |
