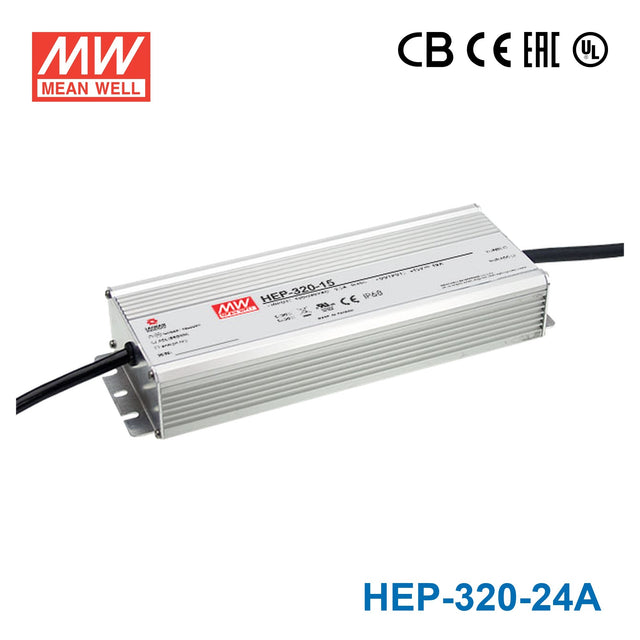

Mean Well HEP-320-24A Power Supply 320.16W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-320-24A Power Supply 320.16W 24V
The HEP-320 is a 320W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 UL62368-1 , IEC/EN62368-1, IP65 (or IP68 for HEP-320 Blank-Type) , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating320.16 Watt
-
Output Voltage24 Volt
-
Rated Current13.34 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~70°C
-
Warranty6 Year
-
Length9.92 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.14 lb
::specification::
Frequently Asked Questions
Can I use the HEP-320-24A for a 24V industrial control panel with PLCs, HMIs, and sensors?
Yes, this model is a constant-voltage 24V supply rated for 320.16W and 13.34A, which fits 24VDC industrial control systems that stay within those limits. Its wide 90-305VAC input also helps in facilities with different AC supply ranges. The fanless metal case and 10G vibration resistance suit harsher industrial environments than a basic enclosed supply.
Is this power supply suitable for 24V embedded or edge computing equipment in industrial enclosures?
It can be a fit for 24V embedded systems that require stable constant-voltage output and draw no more than 13.34A or 320.16W. The fanless design reduces moving parts, and the operating range of -55°C to +70°C supports demanding temperature conditions. Its CB, CE, EAC, and UL certifications may also matter in regulated equipment builds.
Can the HEP-320-24A be used for 24V automation equipment in dusty or washdown-prone areas?
It is built for harsh environments, with an IP65 water-resistant enclosure and a rugged metal case. That makes it more suitable for exposed automation applications than an open-frame supply, especially where dust or water spray is a concern. The stated operating temperature is -55°C to +70°C.
Is the HEP-320-24A suitable for outdoor or unconditioned locations?
This version is rated IP65, so it is water-resistant and intended for harsher indoor or sheltered outdoor use rather than full submersion exposure. Its operating temperature range of -55°C to +70°C supports very cold and very hot environments. Buyers needing a higher ingress rating may compare it with IP68 variants in the series.
How does the HEP-320-24A compare with other HEP-320 voltage options?
Within the HEP-320 range, the main sibling outputs are 264W at 12V 22A for HEP-320-12 and HEP-320-12A, 285W at 15V 19A for HEP-320-15 and HEP-320-15A, 320.16W at 24V 13.34A for HEP-320-24 and HEP-320-24A, 320.4W at 36V 8.9A for HEP-320-36 and HEP-320-36A, 321.6W at 48V 6.7A for HEP-320-48 and HEP-320-48A, and 321.3W at 54V 5.95A for HEP-320-54 and HEP-320-54A. The key selection difference is output voltage, with output current changing accordingly across the same general power class.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HEP-320 Models
11 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HEP-320-54 Power Supply 321.3W 54V | 321.3W | 54V | 5.95A | IP68 | $147.94 | View |
| Mean Well HEP-320-15A Power Supply 285W 15V | 285W | 15V | 19A | IP65 | $147.99 | View |
| Mean Well HEP-320-54A Power Supply 321.3W 54V | 321.3W | 54V | 5.95A | IP65 | $147.94 | View |
| Mean Well HEP-320-48A Power Supply 321.6W 48V | 321.6W | 48V | 6.7A | IP65 | $147.95 | View |
| Mean Well HEP-320-48 Power Supply 321.6W 48V | 321.6W | 48V | 6.7A | IP68 | $152.08 | View |
| Mean Well HEP-320-36A Power Supply 320.4W 36V | 320.4W | 36V | 8.9A | IP65 | $147.95 | View |
| Mean Well HEP-320-36 Power Supply 320.4W 36V | 320.4W | 36V | 8.9A | IP68 | $152.08 | View |

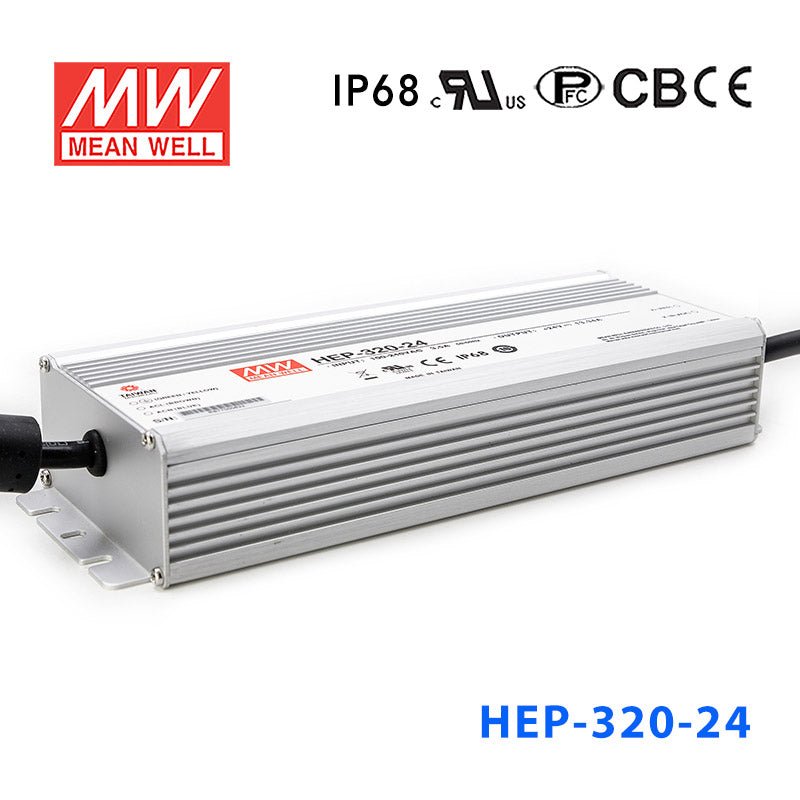

| Mean Well HEP-320-24 Power Supply 320.16W 24V | 320.16W | 24V | 13.34A | IP68 | $152.08 | View |
| Mean Well HEP-320-15 Power Supply 285W 15V | 285W | 15V | 19A | IP68 | $152.08 | View |
| Mean Well HEP-320-12A Power Supply 264W 12V | 264W | 12V | 22A | IP65 | $147.95 | View |
| Mean Well HEP-320-12 Power Supply 264W 12V | 264W | 12V | 22A | IP68 | $152.08 | View |
