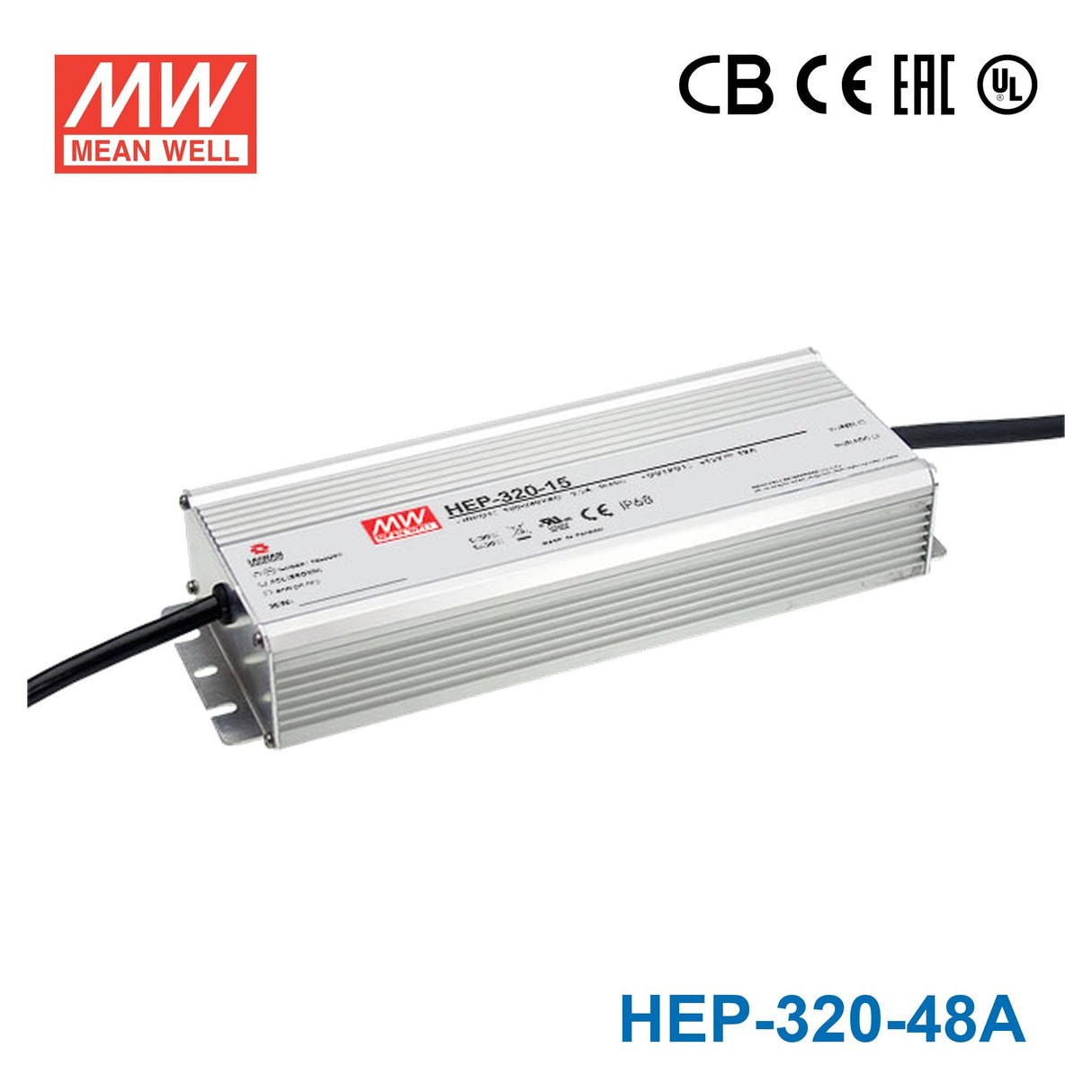

Mean Well HEP-320-48A Power Supply 321.6W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-320-48A Power Supply 321.6W 48V
The HEP-320 is a 320W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 UL62368-1 , IEC/EN62368-1, IP65 (or IP68 for HEP-320 Blank-Type) , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating321.6 Watt
-
Output Voltage48 Volt
-
Rated Current6.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~70°C
-
Warranty6 Year
-
Length9.92 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.14 lb
::specification::
Frequently Asked Questions
Can I use the HEP-320-48A for 48V DC telecom or control equipment?
Yes, this supply delivers constant 48V output up to 6.7A and 321.6W for equipment designed around a fixed 48VDC input. It is appropriate for telecom, control, and industrial electronics that operate within those electrical limits. The 90-305VAC input range is also useful where incoming AC supply varies by site.
Is the HEP-320-48A suitable for 48V industrial networking or embedded systems?
It can be used for 48V networking or embedded equipment that requires a regulated constant-voltage source and draws no more than 321.6W or 6.7A. The fanless design helps reduce maintenance in enclosed or dusty environments. Its rugged case is intended for harsher service conditions than a standard indoor supply.
Can this model be used in automation equipment exposed to vibration or temperature extremes?
It is designed for harsh environments, with 10G vibration resistance and an operating range of -55°C to +70°C. That makes it suitable for automation and industrial equipment housings where shock, vibration, or temperature swing matters. The constant-voltage 48V output still needs to match the equipment requirement.
Is the HEP-320-48A suitable for outdoor use?
This version has an IP65 water-resistant enclosure, so it is suitable for demanding indoor locations and sheltered outdoor environments where dust and water spray are present. It is not the higher-IP option in the series. The temperature rating remains -55°C to +70°C.
How does the HEP-320-48A differ from the other HEP-320 models?
In the HEP-320 range, the available outputs are 264W at 12V 22A for HEP-320-12 and HEP-320-12A, 285W at 15V 19A for HEP-320-15 and HEP-320-15A, 320.16W at 24V 13.34A for HEP-320-24 and HEP-320-24A, 320.4W at 36V 8.9A for HEP-320-36 and HEP-320-36A, 321.6W at 48V 6.7A for HEP-320-48 and HEP-320-48A, and 321.3W at 54V 5.95A for HEP-320-54 and HEP-320-54A. Selection comes down to matching the required DC voltage and current to the load while staying within the model's rated wattage.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HEP-320 Models
11 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HEP-320-54 Power Supply 321.3W 54V | 321.3W | 54V | 5.95A | IP68 | $147.94 | View |
| Mean Well HEP-320-15A Power Supply 285W 15V | 285W | 15V | 19A | IP65 | $147.99 | View |
| Mean Well HEP-320-54A Power Supply 321.3W 54V | 321.3W | 54V | 5.95A | IP65 | $147.94 | View |
| Mean Well HEP-320-48 Power Supply 321.6W 48V | 321.6W | 48V | 6.7A | IP68 | $152.08 | View |
| Mean Well HEP-320-36A Power Supply 320.4W 36V | 320.4W | 36V | 8.9A | IP65 | $147.95 | View |
| Mean Well HEP-320-36 Power Supply 320.4W 36V | 320.4W | 36V | 8.9A | IP68 | $152.08 | View |
| Mean Well HEP-320-24A Power Supply 320.16W 24V | 320.16W | 24V | 13.34A | IP65 | $147.95 | View |
| Mean Well HEP-320-24 Power Supply 320.16W 24V | 320.16W | 24V | 13.34A | IP68 | $152.08 | View |
| Mean Well HEP-320-15 Power Supply 285W 15V | 285W | 15V | 19A | IP68 | $152.08 | View |
| Mean Well HEP-320-12A Power Supply 264W 12V | 264W | 12V | 22A | IP65 | $147.95 | View |
| Mean Well HEP-320-12 Power Supply 264W 12V | 264W | 12V | 22A | IP68 | $152.08 | View |
