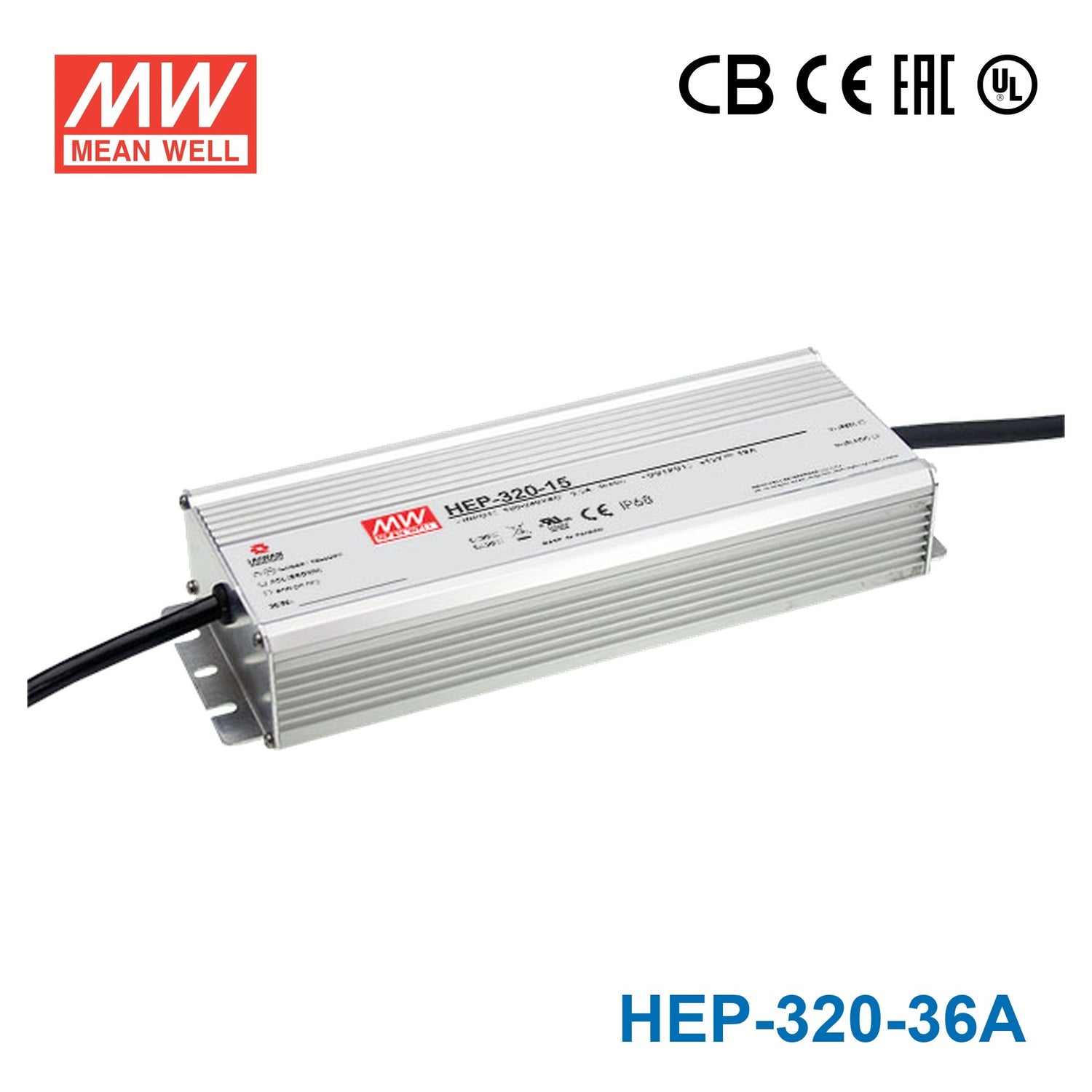

Mean Well HEP-320-36A Power Supply 320.4W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-320-36A Power Supply 320.4W 36V
Description
Description
The HEP-320 is a 320W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 UL62368-1 , IEC/EN62368-1, IP65 (or IP68 for HEP-320 Blank-Type) , EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating320.4 Watt
-
Output Voltage36 Volt
-
Rated Current8.9 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~70°C
-
Warranty6 Year
-
Length9.92 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.14 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HEP-320-36A for 36V control systems in factory automation?
Yes, this unit provides constant 36V output up to 8.9A and 320.4W for automation equipment designed around 36VDC. It can be used where the load needs a fixed-voltage supply rather than constant-current operation. The 90-305VAC input range is also useful in multi-region or mixed-facility deployments.
Is the HEP-320-36A a good fit for 36V embedded devices or industrial electronics cabinets?
It can be a fit for 36V embedded and control electronics that stay within 320.4W and 8.9A. The fanless design helps in enclosed spaces where dust buildup or fan maintenance is undesirable. Its certifications include CB, CE, EAC, and UL.
Can this power supply be used in harsh automation environments with shock or vibration?
It is intended for harsher environments, with a rugged metal case and 10G vibration resistance. That makes it more appropriate for industrial equipment housings and machinery-adjacent applications than a basic bench or indoor-only supply. The operating temperature range is -55°C to +70°C.
Is the HEP-320-36A meant for indoor or outdoor environments?
The HEP-320-36A carries an IP65 water-resistant rating, so it is suited to demanding indoor areas and sheltered outdoor locations where dust and water spray are factors. It is not the higher-IP option in this family. Its temperature range of -55°C to +70°C supports use in unconditioned spaces.
What is the difference between the HEP-320-36A and the other HEP-320 output versions?
The HEP-320 lineup includes 264W at 12V 22A for HEP-320-12 and HEP-320-12A, 285W at 15V 19A for HEP-320-15 and HEP-320-15A, 320.16W at 24V 13.34A for HEP-320-24 and HEP-320-24A, 320.4W at 36V 8.9A for HEP-320-36 and HEP-320-36A, 321.6W at 48V 6.7A for HEP-320-48 and HEP-320-48A, and 321.3W at 54V 5.95A for HEP-320-54 and HEP-320-54A. The main differences are the fixed output voltage and the corresponding output current at similar overall wattage.
Other HEP-320 Models
11 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HEP-320-54 Power Supply 321.3W 54V | 321.3W | 54V | 5.95A | IP68 | $147.94 | View |
| Mean Well HEP-320-15A Power Supply 285W 15V | 285W | 15V | 19A | IP65 | $147.99 | View |
| Mean Well HEP-320-54A Power Supply 321.3W 54V | 321.3W | 54V | 5.95A | IP65 | $147.94 | View |
| Mean Well HEP-320-48A Power Supply 321.6W 48V | 321.6W | 48V | 6.7A | IP65 | $147.95 | View |
| Mean Well HEP-320-48 Power Supply 321.6W 48V | 321.6W | 48V | 6.7A | IP68 | $152.08 | View |
| Mean Well HEP-320-36 Power Supply 320.4W 36V | 320.4W | 36V | 8.9A | IP68 | $152.08 | View |
| Mean Well HEP-320-24A Power Supply 320.16W 24V | 320.16W | 24V | 13.34A | IP65 | $147.95 | View |
| Mean Well HEP-320-24 Power Supply 320.16W 24V | 320.16W | 24V | 13.34A | IP68 | $152.08 | View |
| Mean Well HEP-320-15 Power Supply 285W 15V | 285W | 15V | 19A | IP68 | $152.08 | View |
| Mean Well HEP-320-12A Power Supply 264W 12V | 264W | 12V | 22A | IP65 | $147.95 | View |
| Mean Well HEP-320-12 Power Supply 264W 12V | 264W | 12V | 22A | IP68 | $152.08 | View |
