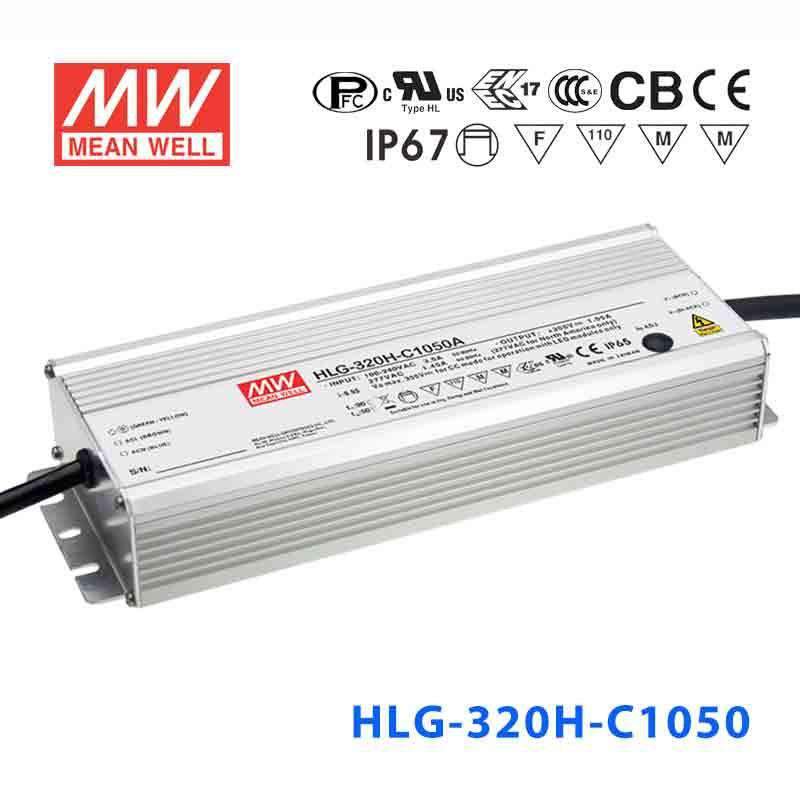

Mean Well HLG-320H-C1050A Power Supply 320.25W 1050mA - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-320H-C1050A Power Supply 320.25W 1050mA - Adjustable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 95% |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| IP67 / IP65 design for indoor or outdoor installations |
| Cooling by free air convection |
| Output current adjustable |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) C-Type: Terminal block for I/O connection Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 150~240W) |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | ±6% rated output voltage |
| Current adjustment range | 50%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 2500ms, 80ms, 15ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 (except for C-Type) approved; UL1012, UL60950-1 |
| EMC standards | EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm); |
| Connection Output | A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm); C-Type: Terminal block |
| Dimension (LxWxH) (mm) | 252x 90x 43.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating320.25 Watt
-
Output Voltage311 Volt
-
Rated Current1.05 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty7 Year
-
Length9.92 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.14 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-320H-C1050A to power high-output LED floodlights?
Yes. The HLG-320H-C1050A delivers 1050mA constant current at up to 320.25W with a CC voltage range of 152-305V. This makes it well suited for high-output LED floodlights used in sports facility lighting, parking lot illumination, or building facade wash lights that require high-voltage series-connected LED arrays.
Is the HLG-320H-C1050A suitable for driving LEDs in large-format commercial signage?
Yes. At 320.25W and 1050mA constant current, this driver can power high-voltage LED strings in large channel letters, pylon signs, or monument sign cabinets. The built-in potentiometer lets you trim the output to match your specific LED string voltage within the 152-305V range.
Can I adjust the output of the HLG-320H-C1050A to match my LED load?
Yes. The A suffix indicates a built-in output adjustment potentiometer. This lets you fine-tune the constant-current output level to match your specific LED configuration without needing an external dimmer or controller. The CC voltage range spans 152-305V.
Is the HLG-320H-C1050A appropriate for high-bay LED lighting in industrial facilities?
Yes. With 320.25W at 1050mA, it handles high-bay fixtures with series LED strings in the 152-305V range. The IP65 water-resistant rating and -40°C to +85°C operating range suit factories, distribution centers, and covered industrial bays where dust and occasional moisture are present.
What total forward voltage range should my LED string have for the HLG-320H-C1050A?
Your series-connected LED string's total forward voltage should fall within 152-305V. The driver operates in constant-current mode at 1050mA. The exact number of LEDs you can wire in series depends on each LED's individual forward voltage — sum them to ensure the total stays in the 152-305V window.
Can I install the HLG-320H-C1050A outdoors under a canopy or in a ventilated cabinet?
Yes. The IP65 rating protects against dust ingress and low-pressure water jets, making it safe for covered outdoor locations such as canopy-mounted fixtures, ventilated electrical cabinets, or sheltered pole-mount enclosures. Avoid fully submerged installations.
