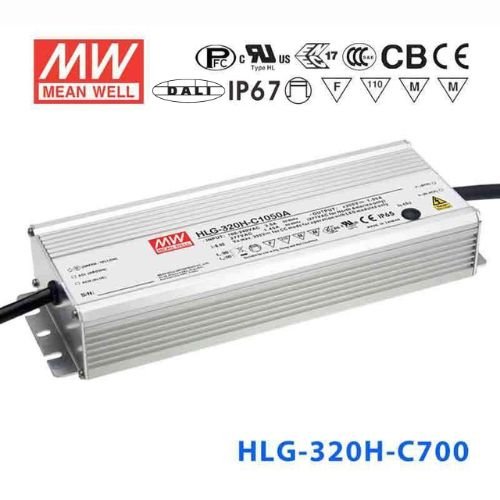

Mean Well HLG-320H-C700DA Power Supply 299.6W 700mA - DALI
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-320H-C700DA Power Supply 299.6W 700mA - DALI
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 95% |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| IP67 / IP65 design for indoor or outdoor installations |
| Cooling by free air convection |
| Output current adjustable |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) C-Type: Terminal block for I/O connection Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 150~240W) |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | ±6% rated output voltage |
| Current adjustment range | 50%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 2500ms, 80ms, 15ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 (except for C-Type) approved; UL1012, UL60950-1 |
| EMC standards | EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm); |
| Connection Output | A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm); C-Type: Terminal block |
| Dimension (LxWxH) (mm) | 252x 90x 43.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating299.6 Watt
-
Output Voltage435 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty7 Year
-
Length9.92 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.14 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-320H-C700DA with a DALI-2 building automation system for LED high-bay lighting?
Yes. The DA suffix indicates native DALI dimming support, allowing direct integration with DALI-2 bus controllers. At 299.6W and 700mA constant current with a CC range of 214-428V, it can drive high-bay LED fixtures with long series strings. DALI control enables individual addressing, grouping, and scene management.
Is the HLG-320H-C700DA suitable for outdoor LED signage controlled by a central DALI network?
Yes. Its IP67 waterproof rating allows installation in fully exposed outdoor locations, and the 700mA constant current with 214-428V CC range drives long LED module strings typical in large signs. The DALI interface enables centralized scheduling of brightness levels from a building management system.
Can I install the HLG-320H-C700DA in a location subject to temporary flooding?
Yes. The IP67 rating means the enclosure is protected against temporary immersion in water up to 1 meter depth for 30 minutes, in addition to full dust protection. This makes it suitable for ground-level installations, flood-prone areas, and locations where standing water may temporarily accumulate.
Can the HLG-320H-C700DA power LED arrays in a parking structure with DALI occupancy control?
Yes. At 299.6W and 700mA, it can drive high-output LED arrays for parking garage lighting with forward voltages summing to 214-428V. The DALI interface connects to occupancy sensors and daylight harvesters on the DALI bus, enabling zone-based dimming that reduces energy consumption in unoccupied areas.
How many LEDs can I drive in series with the HLG-320H-C700DA?
The number depends on each LED's forward voltage. The driver provides 700mA constant current with a CC voltage range of 214-428V, accommodating very long series strings. Sum your LEDs' forward voltages and verify the total stays within that window. The high voltage capability makes this driver ideal for applications requiring many series-connected LEDs.
What separates the HLG-320H-C700DA from the other C700 variants in the HLG-320H series?
The -C700DA uses DALI for dimming and carries an IP67 waterproof rating. The -C700A has a potentiometer for current adjustment with IP65. The -C700AB adds both potentiometer and 1-10V/PWM dimming at IP65. The -C700B has 1-10V/PWM dimming only at IP65. All share the same 299.6W, 700mA, 214-428V constant current specs.
