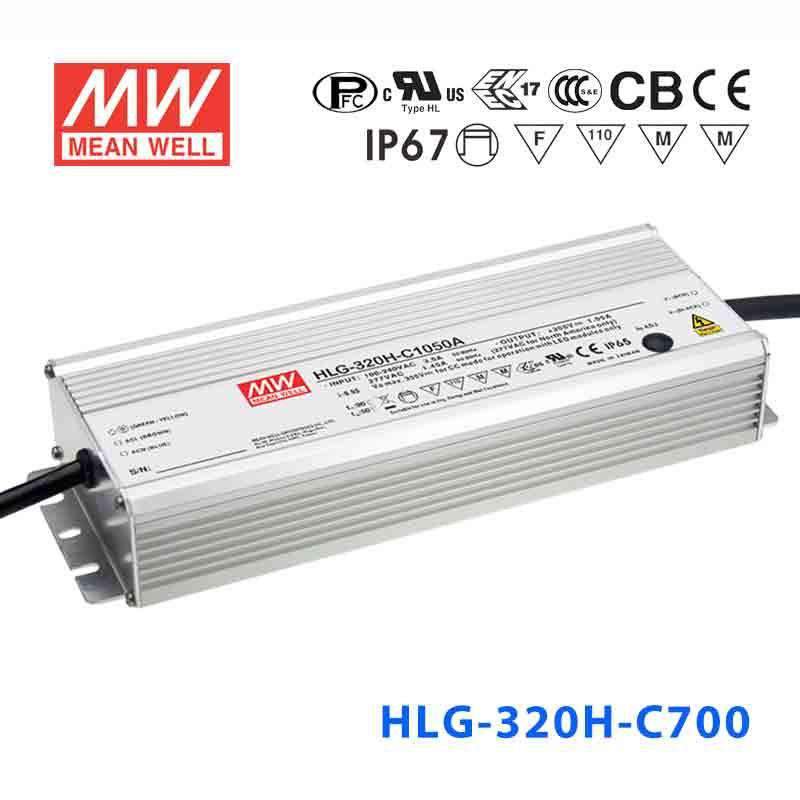

Mean Well HLG-320H-C700A Power Supply 299.6W 700mA - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-320H-C700A Power Supply 299.6W 700mA - Adjustable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 95% |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| IP67 / IP65 design for indoor or outdoor installations |
| Cooling by free air convection |
| Output current adjustable |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) C-Type: Terminal block for I/O connection Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 150~240W) |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | ±6% rated output voltage |
| Current adjustment range | 50%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 2500ms, 80ms, 15ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 (except for C-Type) approved; UL1012, UL60950-1 |
| EMC standards | EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm); |
| Connection Output | A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm); C-Type: Terminal block |
| Dimension (LxWxH) (mm) | 252x 90x 43.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating299.6 Watt
-
Output Voltage435 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty7 Year
-
Length9.92 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.14 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-320H-C700A to power long LED string arrays for channel letter signage?
Yes. The HLG-320H-C700A delivers 700mA constant current with a CC voltage range of 214-428V, which supports very long series strings of LEDs. This makes it well suited for channel letters, large illuminated signs, and other applications requiring many LEDs in series. The total forward voltage of your LED string must fall within 214-428V.
Is the HLG-320H-C700A suitable for driving high-bay LED fixtures in industrial settings?
Yes. At 299.6W and 700mA constant current, this driver can power high-bay LED modules whose combined forward voltage falls within 214-428V. The adjustable output via built-in potentiometer lets you fine-tune the current to match your fixture's optimal operating point. Its -40°C to +85°C operating range handles unheated warehouses.
Can the HLG-320H-C700A power LED modules in a large outdoor billboard?
Yes. The 299.6W output at 700mA can drive substantial LED module arrays for billboard or large-format sign illumination, as long as the series string voltage falls within 214-428V. Its IP65 rating protects against dust and rain in sheltered outdoor mounting locations. For fully exposed sites, consider the IP67-rated HLG-320H-C700DA.
How many LEDs can I connect in series with the HLG-320H-C700A?
The count depends on each LED's individual forward voltage. The driver provides 700mA constant current across a CC voltage range of 214-428V, which is a high range that accommodates very long series LED strings. Sum your LEDs' forward voltages and verify the total stays within 214-428V. The adjustable output allows fine-tuning.
Can the HLG-320H-C700A be installed in a dusty outdoor enclosure?
Yes. Its IP65 rating provides complete protection against dust ingress and resistance to low-pressure water jets. It is appropriate for sheltered outdoor enclosures, canopies, or ventilated cabinets. For locations subject to temporary flooding or submersion, an IP67-rated variant like the HLG-320H-C700DA would be more appropriate.
What does the 'A' suffix mean on the HLG-320H-C700A compared to the AB, B, and DA versions?
The -C700A includes a built-in potentiometer for output current adjustment but has no dimming signal input. The -C700AB adds both a potentiometer and 1-10V/PWM dimming. The -C700B provides dimming input only without the potentiometer. The -C700DA features DALI dimming and is upgraded to IP67. All share the same 299.6W, 700mA, 214-428V core specs.
