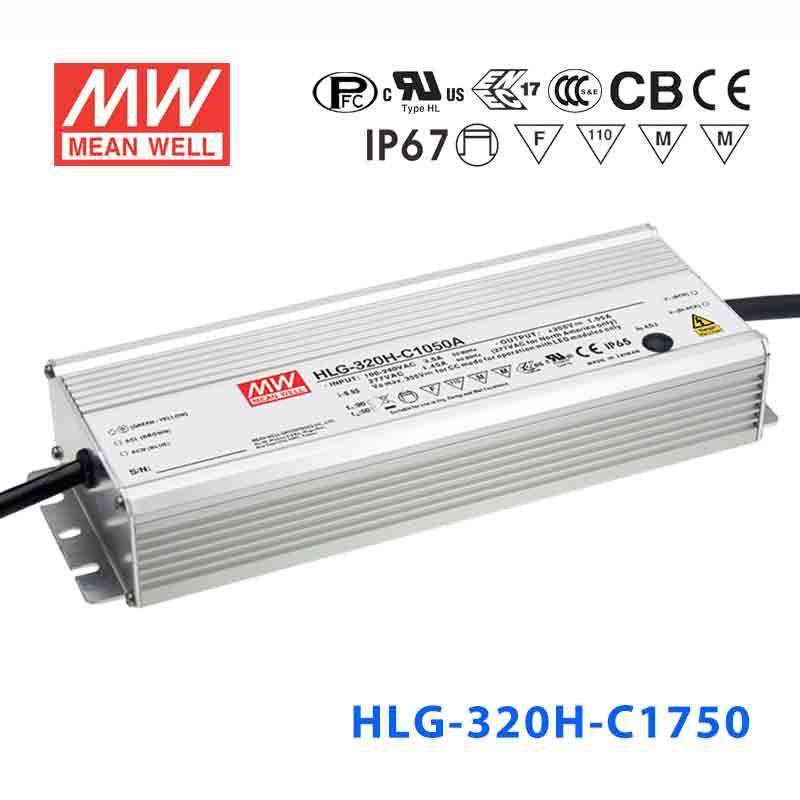

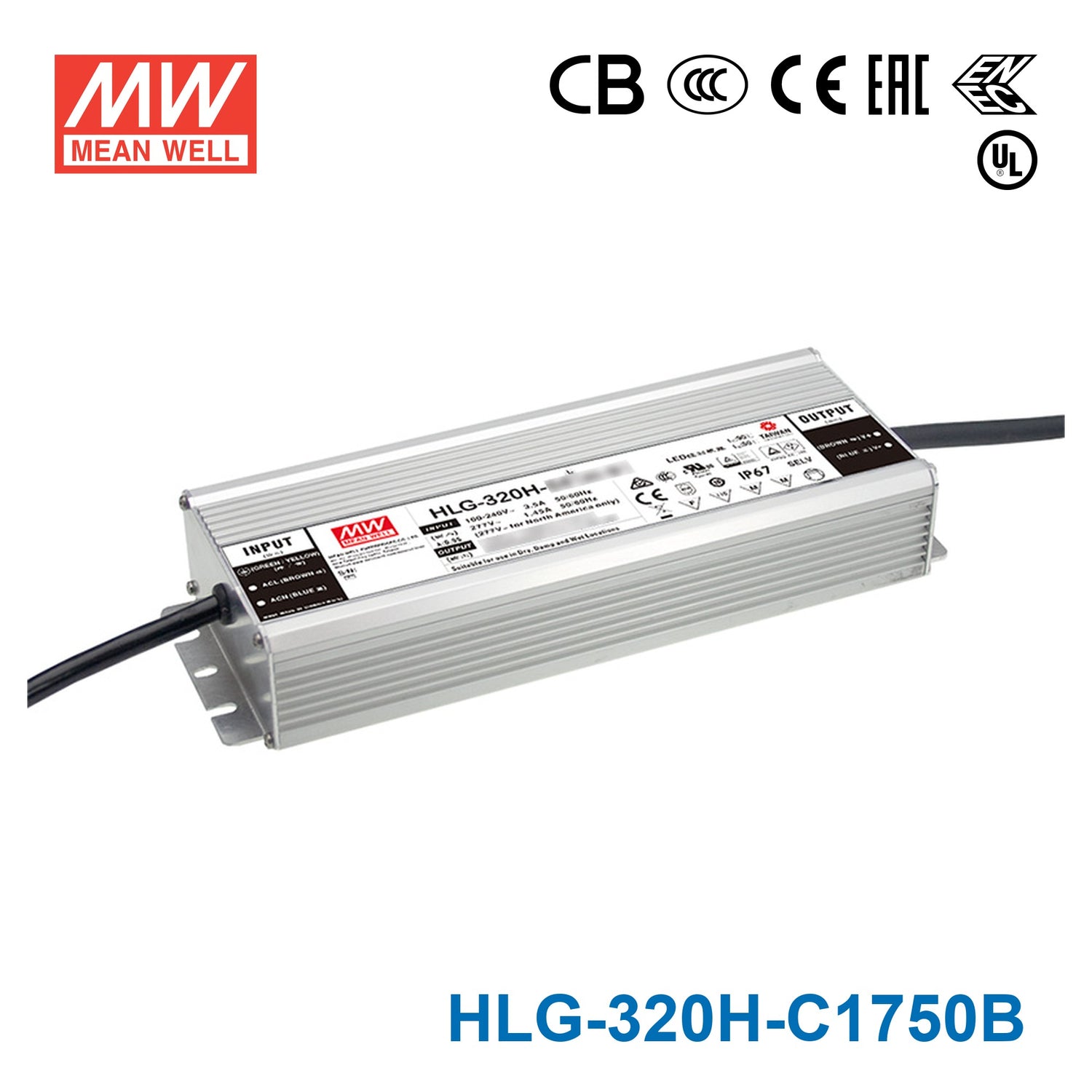

Mean Well HLG-320H-C1750B Power Supply 320.25W 1750mA - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-320H-C1750B Power Supply 320.25W 1750mA - Dimmable
Overview
HLG-320H-C1750B is the model of this series: rated current 1750mA, rated power 320.25W, typical efficiency 94%. Type B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP67).
HLG-320H-C series is a 320W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-320H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant Current mode output
- Metal housing with ClassⅠdesign
- Built-in active PFC function
- IP67 design for indoor or outdoor installations
- Function options: 3 in 1 dimming
- Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
- Typical lifetime>62000 hours
- 7 years warranty
Model encoding
| Type | Function |
|---|---|
| A | Io adjustable through built-in potentiometer.; IP65 |
| B (this model) | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67 |
| DA | DALI control technology.; IP67 |
| AB | Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65 |
| DX | Built-in Smart timer dimming function by user request.; IP67 |
Specifications
OUTPUT
- RATED CURRENT
- 1750mA
- RATED POWER
- 320.25W
- CONSTANT CURRENT REGIONNote.2
- 91 ~ 183V
- OPEN CIRCUIT VOLTAGE (max.)
- 187V
- CURRENT RIPPLE
- 5.0% max. @rated current
- CURRENT TOLERANCE
- ±5%
- SET UP TIMENote.4
- 1000ms/115VAC, or 500ms/230VAC
INPUT
- VOLTAGE RANGENote.3
- 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧70%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
- EFFICIENCY (Typ.)
- 94%
- AC CURRENT (Typ.)
- 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
- INRUSH CURRENT(Typ.)
- COLD START 70A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- SHORT CIRCUIT
- Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 192 ~ 211V Shut down and latch off o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down and latch off o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent; GB/T19510.1,GB/T19510.213,EAC TP TC 004, IP67 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
OTHERS
- MTBF
- 1847.6K hrs min. Telcordia SR-332 (Bellcore) ; 182.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 252*90*43.8mm (L*W*H)
- PACKING
- 1.88Kg; 8pcs/16Kg/0.92CUFT
Certifications & ratings
- Type
- HL
Test conditions and notes10
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
- 7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
Technical drawings
Typical applications
- LED street lighting
- LED fishing lamp
- LED harbor lighting
- LED building architectural lighting
- LED greenhouse lighting
- LED bay lighting
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
Can I use the HLG-320H-C1750B to drive dimmable LED high-bay lights in a sports facility?
Yes. The HLG-320H-C1750B delivers 1750mA constant current at 320.25W and includes a 3-in-1 dimming input (0-10VDC, 10V PWM, or resistance). This allows you to reduce light levels during practice sessions and ramp up to full brightness for competitions. The LED modules must have a string voltage within the 91-183V range.
Is the HLG-320H-C1750B suitable for LED retail display lighting with brightness control?
Yes, provided your LED fixtures require 1750mA and the string voltage falls within 91-183V. The dimming input accepts 0-10VDC, 10V PWM, or resistance, letting you adjust ambiance for product displays. At 320.25W, it can handle substantial LED loads across multiple fixture strings wired in series.
Can the HLG-320H-C1750B power LED luminaires in a workshop or factory floor?
Yes. The 320.25W capacity and 1750mA drive current suit industrial LED luminaires with string voltages in the 91-183V range. The dimming function via 0-10VDC, PWM, or resistance allows task-based lighting control. The driver's -40°C to +85°C case temperature (Tcase) range and IP65/IP67-approved enclosure handle typical industrial conditions.
Can I use the HLG-320H-C1750B for outdoor architectural LED accent lighting?
It can work in sheltered outdoor locations. The HLG-320H-C series is IP65 or IP67 approved against dust and water, making it suitable for installation inside weatherproof junction boxes or under eaves. For fully exposed outdoor positions, confirm this version's IP rating first.
How do I size the LED string for the HLG-320H-C1750B?
The driver outputs a constant 1750mA and adjusts its voltage automatically within the 91-183V range to maintain that current. Add up the forward voltages of all LEDs in your series string at 1750mA and confirm the total falls within this range. The exact number of LEDs depends on each LED's individual forward voltage.
What dimming methods does the HLG-320H-C1750B support?
The HLG-320H-C1750B accepts three dimming methods between DIM+ and DIM-: 0-10VDC, a 10V PWM signal (100Hz-3kHz), or resistance; the minimum dimming level is about 6%. It does not include output current adjustment via potentiometer — for that feature combined with dimming, you would need the HLG-320H-C1750AB. The -B variant suits systems where external dimming control is sufficient.
