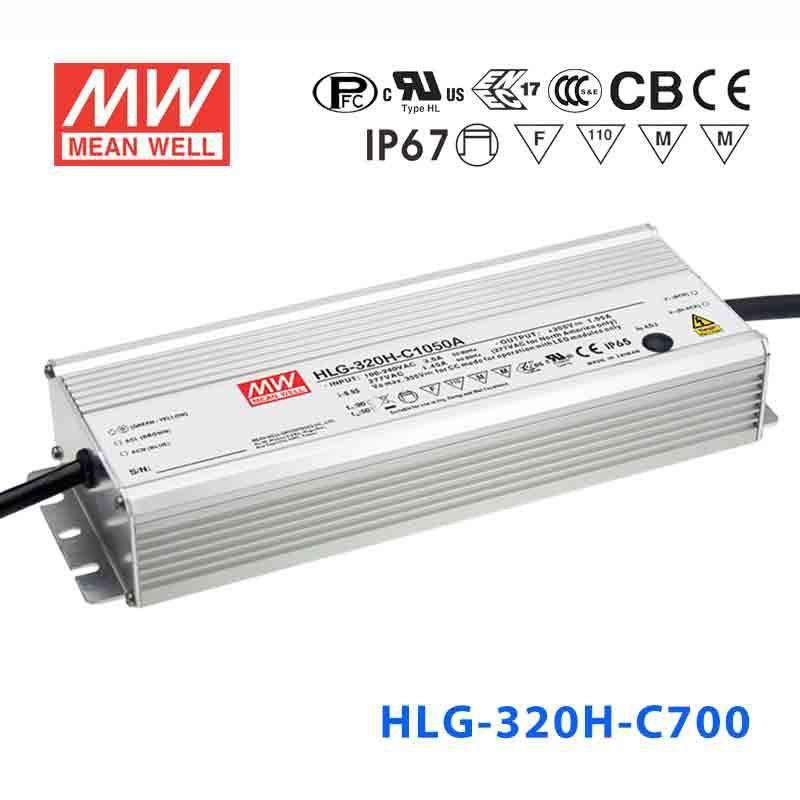

Mean Well HLG-320H-C700B Power Supply 299.6W 700mA - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-320H-C700B Power Supply 299.6W 700mA - Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 95% |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| IP67 / IP65 design for indoor or outdoor installations |
| Cooling by free air convection |
| Output current adjustable |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) C-Type: Terminal block for I/O connection Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 150~240W) |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | ±6% rated output voltage |
| Current adjustment range | 50%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 2500ms, 80ms, 15ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 (except for C-Type) approved; UL1012, UL60950-1 |
| EMC standards | EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm); |
| Connection Output | A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm); C-Type: Terminal block |
| Dimension (LxWxH) (mm) | 252x 90x 43.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating299.6 Watt
-
Output Voltage435 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty7 Year
-
Length9.92 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.14 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-320H-C700B to drive dimmable LED arrays for architectural lighting?
Yes. The HLG-320H-C700B delivers 700mA constant current at up to 299.6W with a 1-10V/PWM dimming input, making it suitable for architectural LED installations that require brightness control. The connected LED array's total forward voltage must fall within the 214-428V CC range.
Is the HLG-320H-C700B suitable for dimming long LED strip arrays in a retail display?
It can work for high-voltage LED strip arrays that operate within the 214-428V CC range at 700mA. The B suffix provides a dimming input for scene control or scheduled brightness changes in retail environments. Ensure your strip array's total forward voltage is within the supported range.
Can the HLG-320H-C700B power LED modules in a large outdoor sign with scheduled dimming?
Yes. At 299.6W and 700mA constant current, it can drive substantial LED sign arrays whose series voltage falls within 214-428V. The dimming input enables day/night brightness scheduling. Its IP65 rating protects against dust and rain in sheltered outdoor locations. For fully exposed sites, consider the IP67-rated HLG-320H-C700DA.
How does the HLG-320H-C700B differ from the HLG-320H-C700A and C700AB?
The -C700B provides a 1-10V/PWM dimming input but no output adjustment potentiometer. The -C700A has a potentiometer for current adjustment but no dimming input. The -C700AB combines both features. All three share the same 299.6W, 700mA, 214-428V CC specs and IP65 rating. Choose the B if you need dimming but not manual current trimming.
How many LEDs can I connect in series to the HLG-320H-C700B?
The count depends on each LED's forward voltage. This driver outputs 700mA constant current across a CC voltage range of 214-428V, which supports very long series strings. Sum your LEDs' forward voltages and confirm the total falls within that range. The high voltage range makes it especially suited for applications with many LEDs in series.
Can the HLG-320H-C700B handle cold-weather outdoor installations?
Yes. It operates from -40°C to +85°C, making it suitable for cold climates including unheated outdoor enclosures. The IP65 rating protects against dust and water jets. The aluminium casing helps with heat dissipation during warmer periods while the wide operating range ensures reliable startup in freezing conditions.
