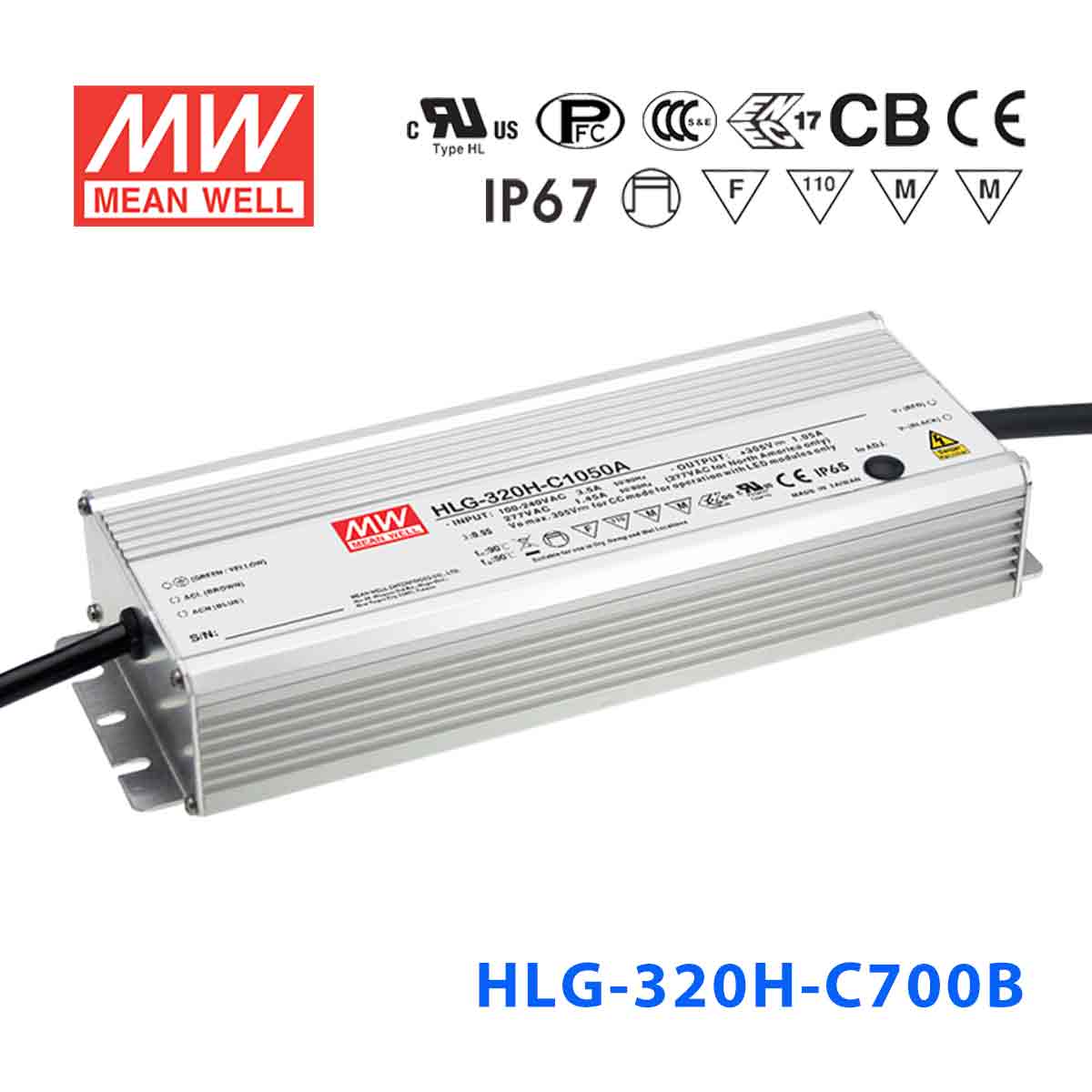

Mean Well HLG-320H-C700AB Power Supply 299.6W 700mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-320H-C700AB Power Supply 299.6W 700mA - Adjustable an...
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 95% |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| IP67 / IP65 design for indoor or outdoor installations |
| Cooling by free air convection |
| Output current adjustable |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) C-Type: Terminal block for I/O connection Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 150~240W) |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | ±6% rated output voltage |
| Current adjustment range | 50%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 2500ms, 80ms, 15ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 (except for C-Type) approved; UL1012, UL60950-1 |
| EMC standards | EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm); |
| Connection Output | A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm); C-Type: Terminal block |
| Dimension (LxWxH) (mm) | 252x 90x 43.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating299.6 Watt
-
Output Voltage435 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty7 Year
-
Length9.92 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.14 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-320H-C700AB to power dimmable LED high-bay fixtures in a warehouse?
Yes. The HLG-320H-C700AB provides 700mA constant current at up to 299.6W with both an adjustable output and a 1-10V/PWM dimming input. This allows daylight harvesting or occupancy-based dimming in warehouse high-bay installations. The fixture's forward voltage must fall within the 214-428V CC range.
Is the HLG-320H-C700AB a good choice for dimmable commercial LED signage?
Yes. The 700mA constant current output across a 214-428V CC range can drive long series strings of LED modules used in channel letters and large illuminated panels. The dimming input allows scheduling day and night brightness levels, and the adjustable potentiometer lets you trim current to your modules' optimal operating point.
Can I use the HLG-320H-C700AB with a 0-10V building automation dimmer?
Yes. The AB suffix indicates a 1-10V/PWM dimming input that is compatible with standard 0-10V or 1-10V dimming signals from building automation systems, occupancy sensors, or standalone dimmers. Combined with the potentiometer for maximum current adjustment, you get full control over light output from the connected LED string.
Can the HLG-320H-C700AB be mounted in a covered outdoor location?
Yes. Its IP65 rating protects against complete dust ingress and low-pressure water jets, suitable for soffits, ventilated enclosures, or covered canopies. It is not rated for submersion. If the installation may be exposed to standing water or heavy flooding, consider the IP67-rated HLG-320H-C700DA with DALI control.
How many LEDs can I run in series with the HLG-320H-C700AB?
The exact number depends on each LED's forward voltage. The driver operates at 700mA constant current with a CC voltage range of 214-428V, which accommodates very long LED series strings. Sum the forward voltages of your LEDs and confirm the total falls within that range. The built-in potentiometer allows fine-tuning the output.
What is the operating temperature range of the HLG-320H-C700AB?
The HLG-320H-C700AB operates from -40°C to +85°C, covering extreme cold and hot environments. The aluminium casing aids heat dissipation. In enclosed spaces near the upper limit, provide adequate airflow or reduce the load to maintain the driver's 7-year warranty life expectancy.
