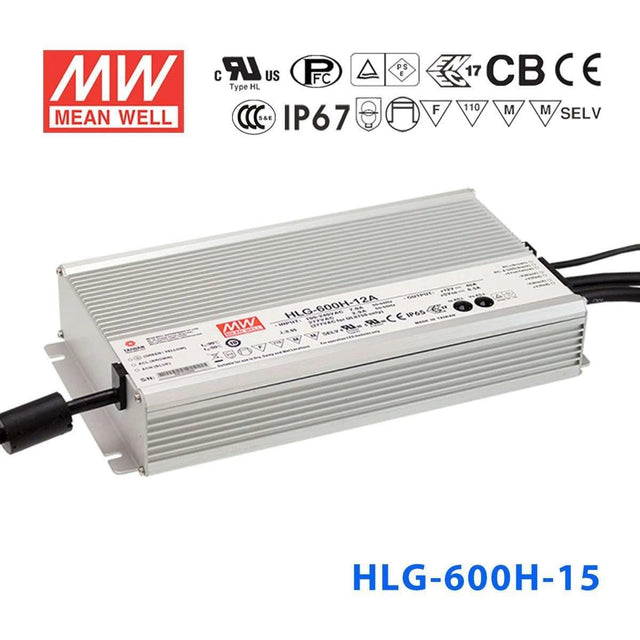

Mean Well HLG-600H-15 Power Supply 540W 15V 36A

Name: Mean Well HLG-600H-15 Power Supply 540W 15V 36A
Brand: Mean Well
SKU: HLG-600H-15
Price: 199.5 USD
Availability: InStock
Rating: 5.0 (4 reviews)

Overview

HLG-600H-15 is the 15V output model of this series: rated current 36A, rated power 540W, typical efficiency 93.5%. Type Blank: lo and Vo fixed (IP67).

HLG-600H series is a 600W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-600H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 96%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-600H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Standby power consumption <0.5W at remote off
IP67 rating for indoor or outdoor installations
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-600H-15Specifications from the official datasheet (2026-07-24 edition)

OUTPUT

DC VOLTAGE: 15V
CONSTANT CURRENT REGION^Note.4: 7.5 ~ 15V
RATED CURRENT: 36A
RATED POWER: 540W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.5%
SETUP, RISE TIME^Note.6: 500ms, 80ms/ 115VAC, 230VAC
HOLD UP TIME (Typ.): 15ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.93/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.) 230VAC: 93.5%
EFFICIENCY (Typ.) 277VAC: 93.5%
AC CURRENT (Typ.): 7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1000μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 1 unit (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION: <0.5W at remote off

PROTECTION

OVER CURRENT^Note.4: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 16.5 ~ 20.5V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

FUNCTION

REMOTE ON/OFF CONTROL: Power on : "High" >2 ~ 5V or Open circuit Power off : "Low" <0 ~ 0.5V or Short circuit
5V STANDBY: 5VSB : 5V@0.5A ; tolerance ±5%, ripple : 100mVp-p(max.)

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 55℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC (Note 10)

SAFETY STANDARDS^Note.7: UL60950-1, UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP65 or IP67, J61347-1, J61347-2-13, GB/T19510.1,GB/T19510.213, EAC TP TC 004, AS/NZS 60950.1(by CB),KC61347-1, KC61347-2-13(except for AB type) approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.7: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, EAC TP TC 020; GB/T 17743,GB17625.1, KS C 9815, KS C 9547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020; KS C 9815, KS C 9547

OTHERS

MTBF: 913.4K hrs min. Telcordia SR-332 (Bellcore) ; 76.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 280*144*48.5mm (L*W*H)
PACKING: 3.9Kg; 4pcs/16.6Kg/0.9CUFT

MODEL ENCODING

A: Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10VDC, 10V PWM signal and resistance); IP67
AB: lo and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10VDC,10V PWM signal and resistance); IP65
Blank (this model): lo and Vo fixed; IP67

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The model certified for CCC(GB/T19510.1, GB/T19510.213, GB/T 17743 and GB17625.1) is an optional model . Please contact MEAN WELL for details.
8. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The driver is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-600H-15 BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-600H-15 STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-600H-15 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

Typical applications

LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-600H-15 datasheetHLG-600H-SPEC.PDF · 2026-07-24 edition PDF Download

Certificates6

CB Certificate (HLG-600H)(EN) PDF Download

ERP Certificate (HLG-600H)(EN) PDF Download

EMC Certificate(HLG-600H)(EN) PDF Download

UL Certificate(HLG-600H)(EN) PDF Download

PSE Certificate(HLG-600H)(EN) PDF Download

ENEC Certificate(HLG-600H)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-600H-15 to power 15V LED strips for commercial lighting?

Yes. The HLG-600H-15 delivers 540W at 15V with up to 36A of output current, so it can drive large runs of 15V LED strips used in retail displays, office cove lighting, or hospitality accent lighting. Its IP67 waterproof rating also allows outdoor installation.

Is the HLG-600H-15 appropriate for powering 15V LED modules in channel letter signs?

Yes. With 540W at 15V, it has enough capacity for large channel letter or cabinet sign installations that use 15V LED modules. The wide 90-305VAC input makes it compatible with commercial power systems worldwide, and the IP67 rating permits mounting inside or outside sign cabinets.

Can the HLG-600H-15 handle multiple 15V LED lighting zones from a single unit?

Yes, provided the combined load of all zones does not exceed 540W. At 36A on the 15V output, you could split the supply to several parallel 15V strip or module runs. Keep in mind this is a fixed-output model with no built-in dimming or voltage adjustment, so all zones will run at the same level.

How many meters of 15V LED strip can the HLG-600H-15 support?

That depends on the strip's rated power per meter. The HLG-600H-15 supplies up to 540W at 15V. For example, if your strip draws 15W/m, you could run up to 36 meters (540W / 15W per meter = 36m). Always check your strip's rated power per meter and keep the total load at or below 540W.

Can the HLG-600H-15 be installed outdoors in a fully exposed location?

Yes. Its IP67 waterproof rating means the enclosure is dust-tight and protected against temporary submersion, so direct rain and snow are not a concern. The metal housing and -40°C to +90°C case temperature (Tcase) range further support outdoor use in harsh climates.

What are the differences between the HLG-600H-15, 15A, 15AB, and 15B?

All four share the same 540W / 15V / 36A core specs. The base HLG-600H-15 has no output adjustment or dimming and is IP67 waterproof. The -15A adds a built-in potentiometer for output voltage/current adjustment and is IP65. The -15AB adds both adjustment and 0-10V/PWM/resistance dimming (IP65). The -15B adds dimming input only and retains IP67.
