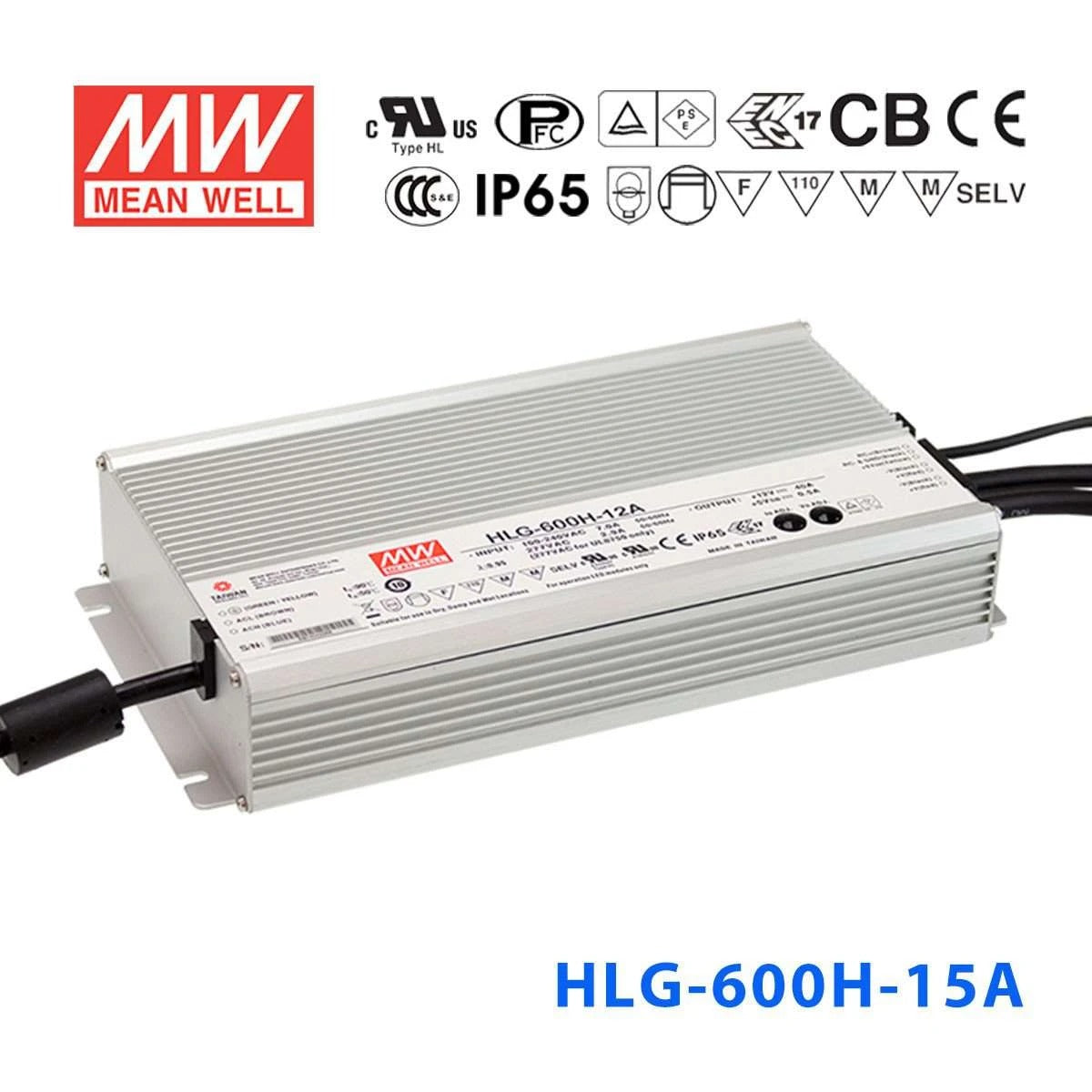

Mean Well HLG-600H-15A Power Supply 540W 15V

Name: Mean Well HLG-600H-15A Power Supply 540W 15V - Adjustable 36A
Brand: Mean Well
SKU: HLG-600H-15A
Price: 203.44 USD
Availability: InStock
Rating: 5.0 (4 reviews)

Overview

HLG-600H-15A is the 15V output model of this series: rated current 36A, rated power 540W, typical efficiency 93.5%. Type A: Io and Vo adjustable through built-in potentiometer (IP65).

HLG-600H series is a 600W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-600H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 96%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-600H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Standby power consumption <0.5W at remote off
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-600H-15ASpecifications from the official datasheet (2026-07-24 edition)

OUTPUT

DC VOLTAGE: 15V
CONSTANT CURRENT REGION^Note.4: 7.5 ~ 15V
RATED CURRENT: 36A
RATED POWER: 540W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 12.7 ~ 15.8V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 18 ~ 36A
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.5%
SETUP, RISE TIME^Note.6: 500ms, 80ms/ 115VAC, 230VAC
HOLD UP TIME (Typ.): 15ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.93/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.) 230VAC: 93.5%
EFFICIENCY (Typ.) 277VAC: 93.5%
AC CURRENT (Typ.): 7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1000μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 1 unit (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION: <0.5W at remote off

PROTECTION

OVER CURRENT^Note.4: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 16.5 ~ 20.5V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

FUNCTION

REMOTE ON/OFF CONTROL: Power on : "High" >2 ~ 5V or Open circuit Power off : "Low" <0 ~ 0.5V or Short circuit
5V STANDBY: 5VSB : 5V@0.5A ; tolerance ±5%, ripple : 100mVp-p(max.)

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 55℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC (Note 10)

SAFETY STANDARDS^Note.7: UL60950-1, UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP65 or IP67, J61347-1, J61347-2-13, GB/T19510.1,GB/T19510.213, EAC TP TC 004, AS/NZS 60950.1(by CB),KC61347-1, KC61347-2-13(except for AB type) approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.7: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, EAC TP TC 020; GB/T 17743,GB17625.1, KS C 9815, KS C 9547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020; KS C 9815, KS C 9547

OTHERS

MTBF: 913.4K hrs min. Telcordia SR-332 (Bellcore) ; 76.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 280*144*48.5mm (L*W*H)
PACKING: 3.9Kg; 4pcs/16.6Kg/0.9CUFT

MODEL ENCODING

A (this model): Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10VDC, 10V PWM signal and resistance); IP67
AB: lo and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10VDC,10V PWM signal and resistance); IP65
Blank: lo and Vo fixed; IP67

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The model certified for CCC(GB/T19510.1, GB/T19510.213, GB/T 17743 and GB17625.1) is an optional model . Please contact MEAN WELL for details.
8. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The driver is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

HLG-600H-15A BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-600H-15A STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-600H-15A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-600H-15A MECHANICAL SPECIFICATION ※A-Type — MECHANICAL SPECIFICATION ※A-Type

Typical applications

LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-600H-15A datasheetHLG-600H-SPEC.PDF · 2026-07-24 edition PDF Download

Certificates6

CB Certificate (HLG-600H)(EN) PDF Download

ERP Certificate (HLG-600H)(EN) PDF Download

EMC Certificate(HLG-600H)(EN) PDF Download

UL Certificate(HLG-600H)(EN) PDF Download

PSE Certificate(HLG-600H)(EN) PDF Download

ENEC Certificate(HLG-600H)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-600H-15A to fine-tune brightness on a 15V LED strip installation?

Yes. The A suffix means the HLG-600H-15A includes a built-in potentiometer that lets you trim the output voltage and current. This is useful when you need to reduce LED brightness slightly or match the driver output precisely to a specific 15V LED strip load without an external dimmer.

Is the HLG-600H-15A powerful enough for large-scale 15V LED lighting in a warehouse or parking garage?

Yes. At 540W and 15V / 36A output, it can drive substantial 15V LED strip or panel installations across large areas. The adjustable output lets you fine-tune the operating point, and the wide 90-305VAC input handles typical industrial mains supplies.

Can the HLG-600H-15A power 15V LED modules for illuminated signage?

Yes. With 540W available at 15V, it can supply large 15V sign module arrays such as channel letters or light boxes. The built-in potentiometer allows you to trim the voltage within its 12.7-15.8V range to match the forward voltage of your LED modules.

How many meters of 15V LED strip can the HLG-600H-15A handle?

That depends on the strip's rated power per meter. The HLG-600H-15A provides up to 540W at 15V. For example, at 18W/m you could run up to 30 meters (540W / 18W per meter = 30m). Always check your strip's rated power per meter and keep total load at or below 540W.

Is the HLG-600H-15A suitable for an outdoor installation under a canopy or soffit?

Yes. Its IP65 water-resistant rating protects against dust and low-pressure water jets, making it suitable for covered or semi-sheltered outdoor locations such as canopies, soffits, and covered walkways. For fully exposed rain installations, consider the IP67-rated HLG-600H-15 or HLG-600H-15B.
