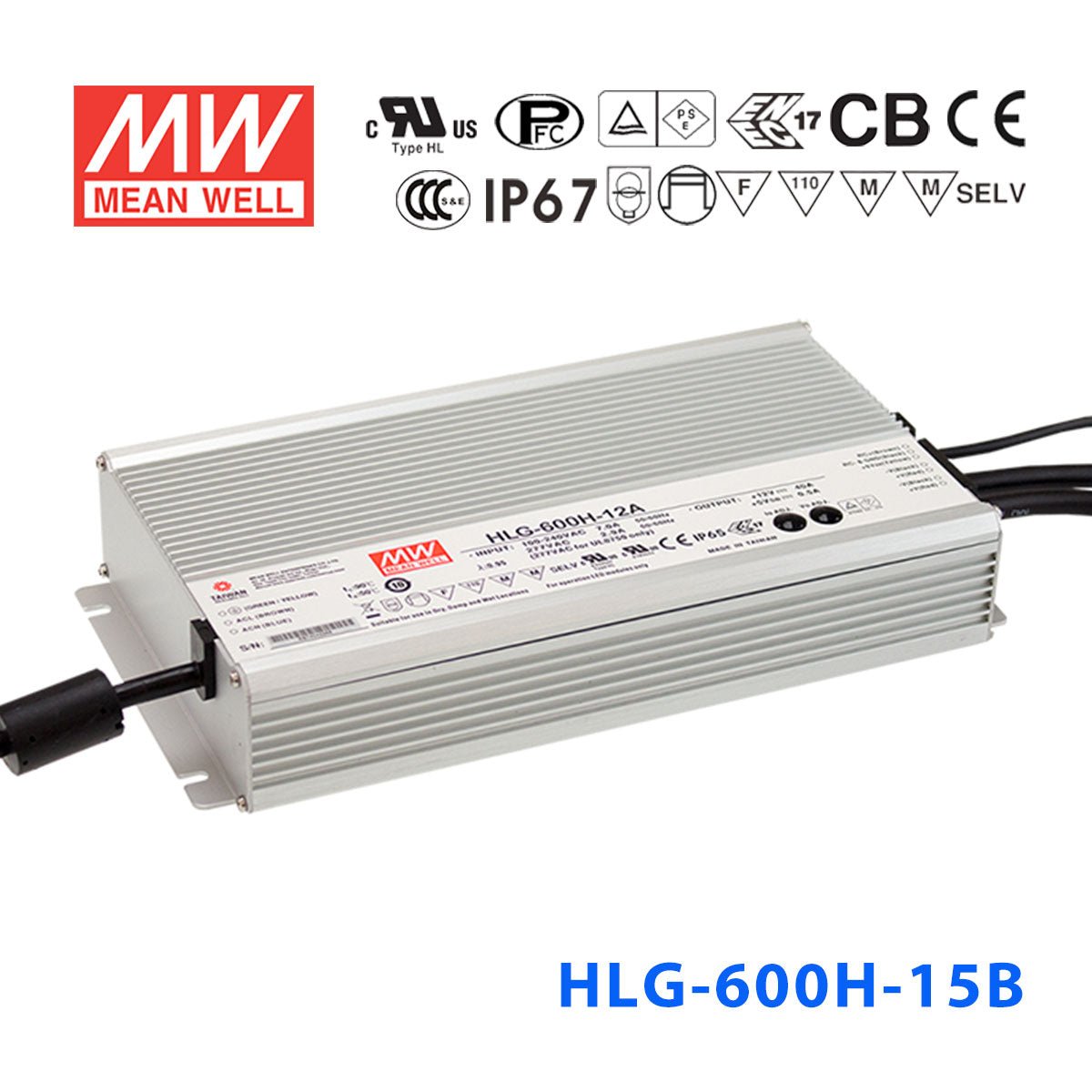

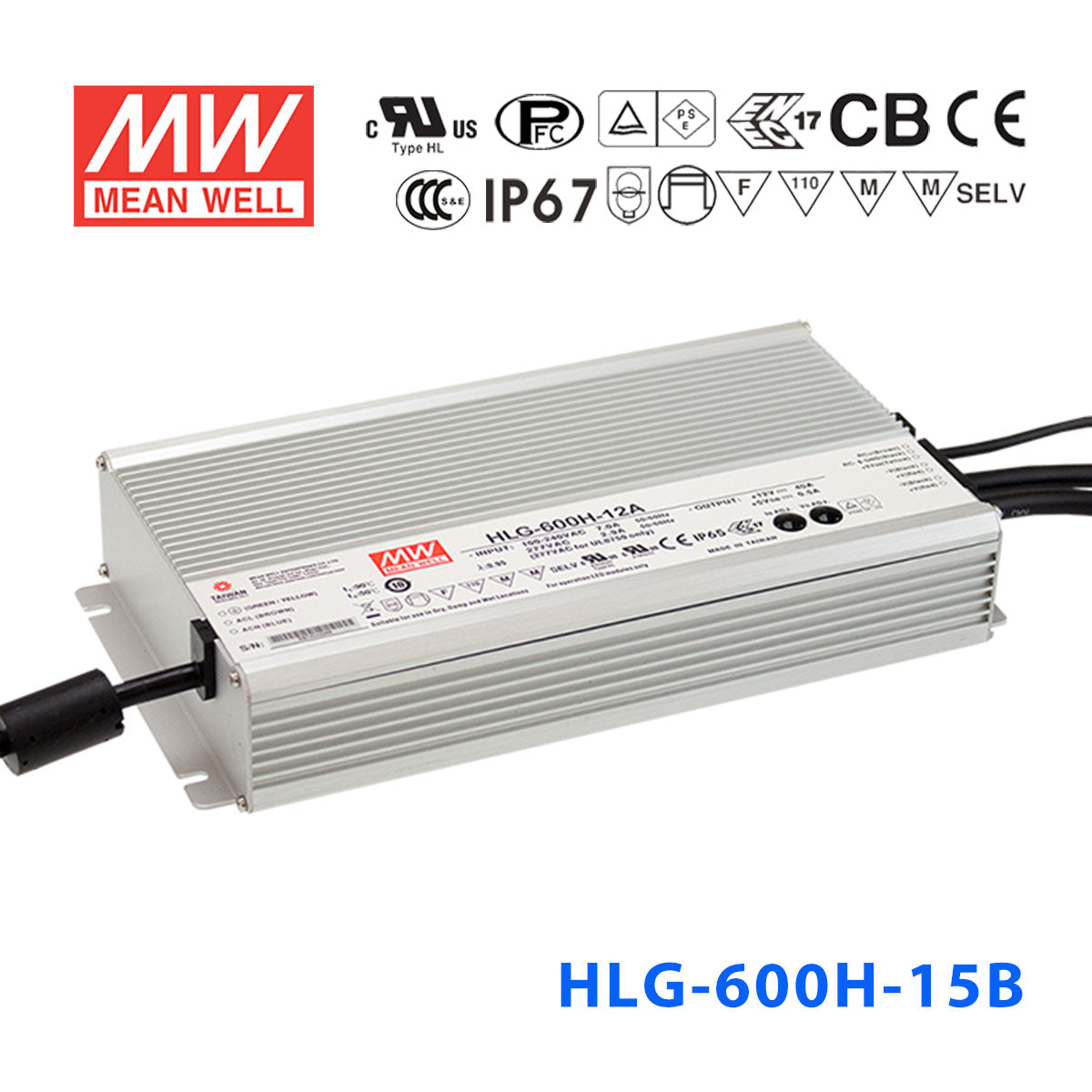

Mean Well HLG-600H-15AB Power Supply 540W 15V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-600H-15AB Power Supply 540W 15V - Adjustable and Dimm...
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Protections: Short circuit / Over current / Over voltage / Over temp. |
| Built-in active PFC function |
| High efficiency up to 96% |
| IP67 / IP65 design for indoor or outdoor installations (except for HLG-320H C-Type) |
| Output current adjustable through output cable or internal potentiometer |
| Cooling by free air convection |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| No load power consumption <0.5W at remote off (HLG-600H) |
| Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires |
| LED indicator for power on (HLG-600H A-Type only) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) C-Type: Terminal block for I/O connection (HLG-320H only) Blank-Type: IP67 rated. Cable for I/O connection (HLG-320H only) D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (HLG-320H only) |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | -15%~+5% rated output voltage (A-Type only) |
| Over voltage protection | 110%~140% rated output voltage |
| Over current protection | 95%~108% constant current limiting, auto- recovery |
| Current adjustment range | 50%~100% rated output current adjustable by internal potentiometer (for A-Type & HLG-320H C-Type) |
| Setup, rise, hold up time | 500ms, 80ms, 15ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL60950-1, UL8750, ENEC EN61347-1/2-13, EN62384 approved |
| EMC standards | EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11,EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm) |
| Connection Output | A-Type: SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) + UL2517 22AWGx3C(30cm) B-Type: SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) + UL2517 22AWGx3C(30cm)+ UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 280x 144x 48.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating540 Watt
-
Output Voltage15 Volt
-
Rated Current36 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-600H-15AB with a building automation system to dim 15V LED lighting?
Yes. The AB suffix means this model accepts 1-10V analog or PWM dimming signals, so it integrates with building management systems, smart lighting controllers, or standalone dimmers. It also includes a built-in potentiometer for manual voltage and current adjustment.
Is the HLG-600H-15AB a good fit for large 15V LED strip installations in hospitality or retail?
Yes. It delivers 540W at 15V / 36A, enough to drive long runs of 15V LED strips for lobby cove lighting, display cases, or bar accent lighting. The dimming capability lets you create different lighting scenes throughout the day, and the adjustable output helps match the driver precisely to your LED load.
Can the HLG-600H-15AB power 15V LED sign modules while allowing brightness dimming?
Yes. At 540W and 15V output, it can supply large 15V sign module arrays. The 1-10V/PWM dimming input allows you to reduce sign brightness at night or per local regulations, while the potentiometer lets you fine-tune voltage and current to match the module string voltage.
How many meters of 15V LED strip can the HLG-600H-15AB power?
That depends on the strip's rated power per meter. The HLG-600H-15AB delivers up to 540W at 15V. For a strip drawing 12W/m, you could run up to 45 meters (540W / 12W per meter = 45m). Always check your strip's rated power per meter and keep total load at or below 540W.
Can the HLG-600H-15AB be used outdoors in a covered area?
Yes. With its IP65 water-resistant rating, the unit withstands dust and low-pressure water jets, making it suitable for sheltered outdoor installations like covered walkways, soffits, and canopies. For fully exposed rain or submersion scenarios, choose the IP67-rated HLG-600H-15B instead.
