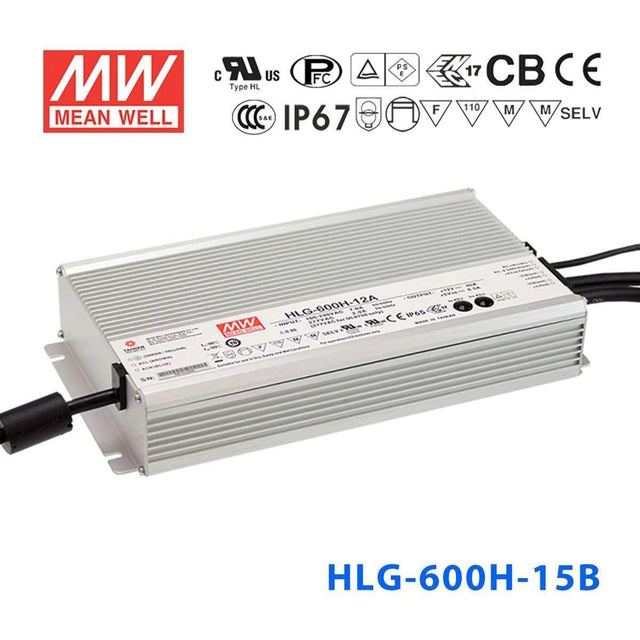

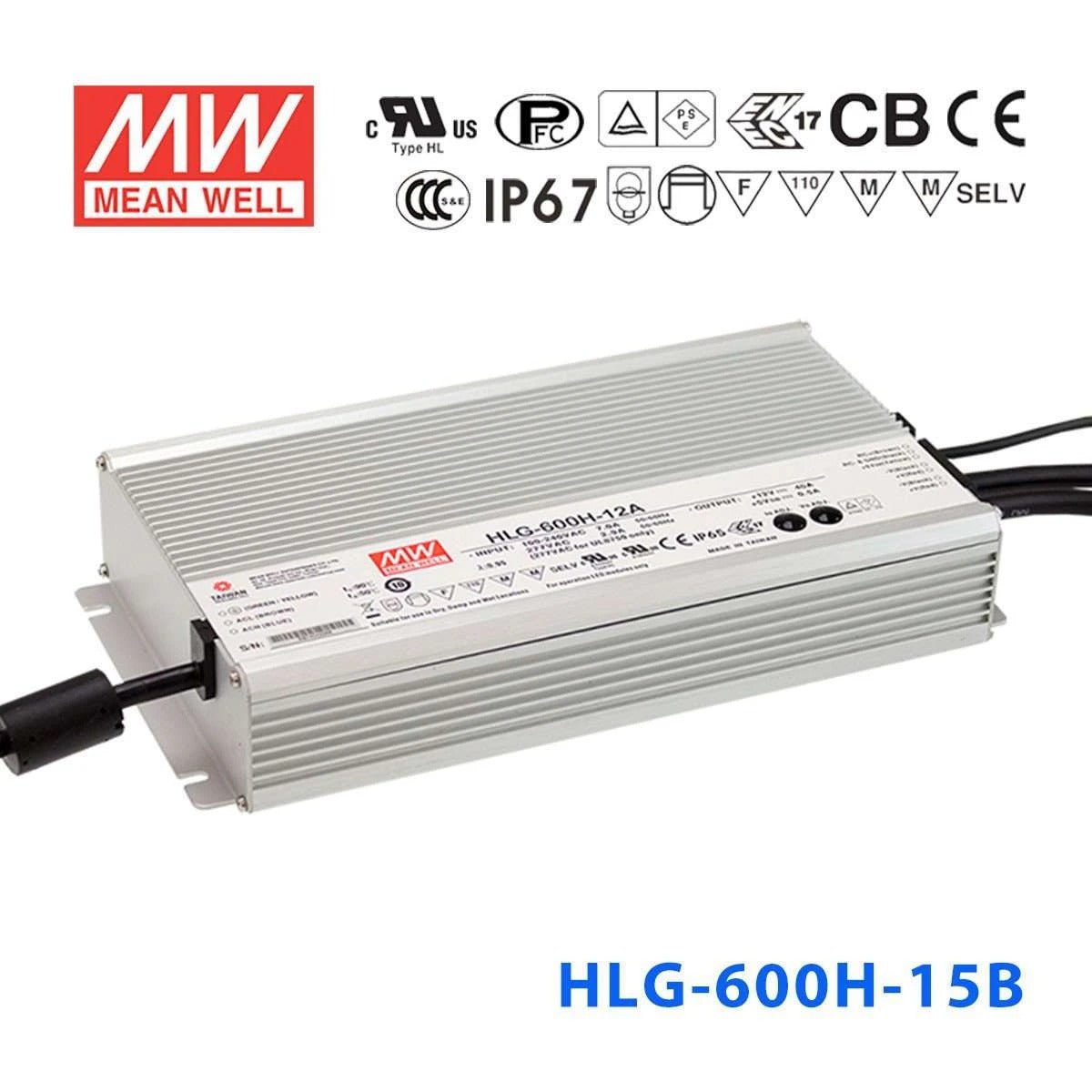

Mean Well HLG-600H-15B Power Supply 540W 15V - Dimmable 36A
5.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-600H-15B Power Supply 540W 15V - Dimmable 36A
The HLG-600H is a 540W Mean Well AC-DC LED driver (input: 90~305VAC, output: 15V, operating temperature: -40~+90°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage: 15V
- ✓ Rated output current: 36A
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+90°C
- ✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
- ✓ 7 year warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating540 Watt
-
Output Voltage15 Volt
-
Rated Current36 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HLG-600H-15B for an outdoor 15V LED strip lighting project exposed to weather?
Yes. The HLG-600H-15B delivers 540W at 15V / 36A and carries an IP67 waterproof rating, so it can be mounted in fully exposed outdoor locations subject to rain, snow, and washdowns. The aluminium casing and -40°C to +90°C operating range ensure reliable operation year-round.
Is the HLG-600H-15B suitable for dimmable 15V LED landscape lighting?
Yes. The B suffix means this model accepts a 1-10V analog or PWM dimming signal, allowing you to control brightness from an external dimmer or landscape lighting controller. At 540W output, it can drive a significant number of 15V landscape path lights, bollards, or accent fixtures.
Can the HLG-600H-15B power 15V LED modules in a wet-location sign enclosure?
Yes. With 540W at 15V and an IP67 waterproof rating, it is well suited for sign cabinets, monument signs, or other enclosures where moisture is present. The dimming input also allows automated brightness reduction during nighttime hours.
How many meters of 15V LED strip can the HLG-600H-15B drive?
That depends on the strip's rated power per meter. The HLG-600H-15B supplies up to 540W at 15V. For example, if the strip draws 20W/m, you could run up to 27 meters (540W / 20W per meter = 27m). Always check your strip's rated power per meter and keep total load at or below 540W.
Can the HLG-600H-15B withstand submersion or flooding?
Its IP67 rating means it is protected against temporary immersion in water up to 1 meter for 30 minutes. This covers incidental flooding or puddle accumulation, but it is not designed for continuous underwater operation. For permanent submersion, a dedicated underwater-rated enclosure would be needed.
