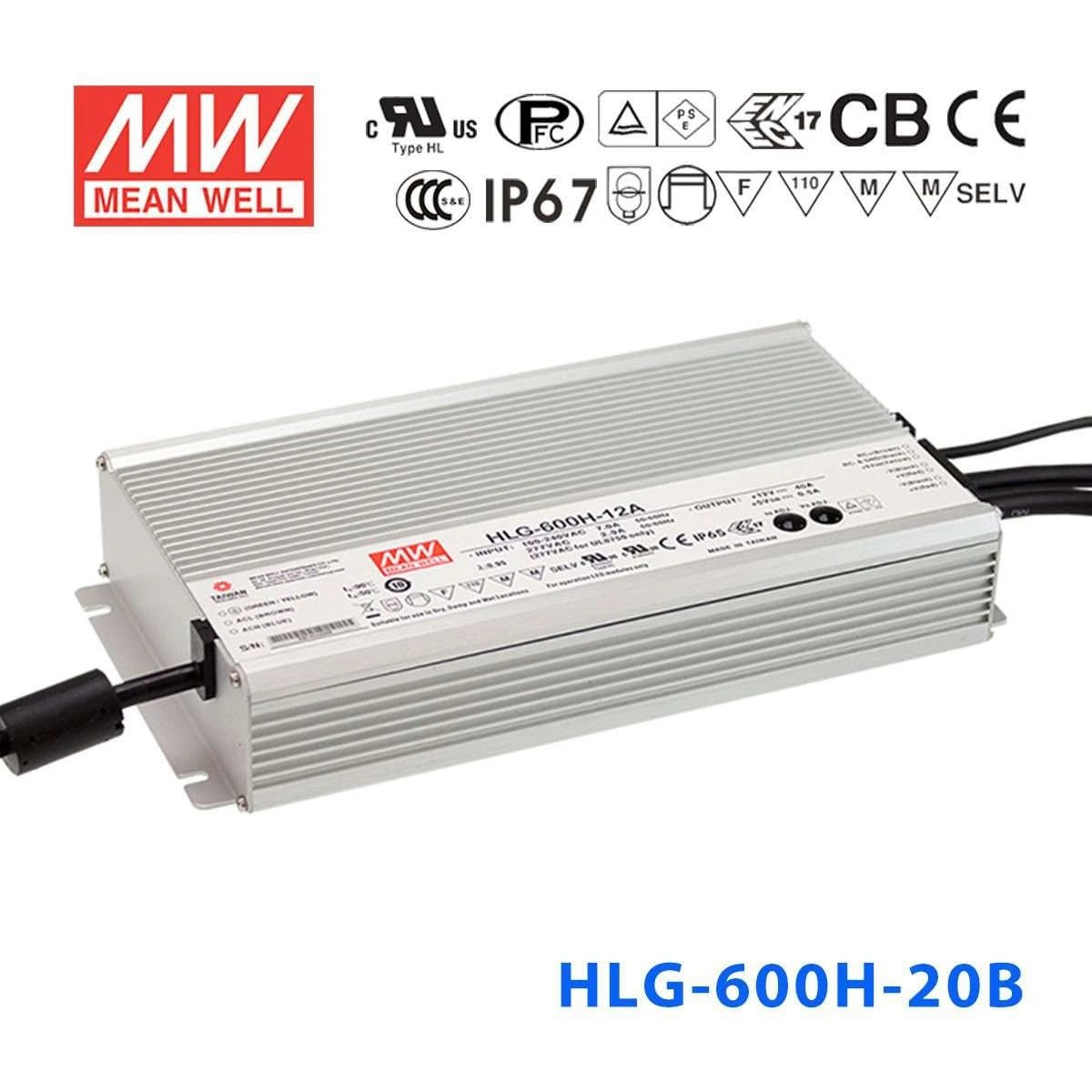

Mean Well HLG-600H-20B Power Supply 560W 20V- Dimmable 28A
5.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-600H-20B Power Supply 560W 20V- Dimmable 28A
The HLG-600H is a 560W Mean Well AC-DC LED driver (input: 90~305VAC, output: 20V, operating temperature: -40~+90°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage: 20V
- ✓ Rated output current: 28A
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+90°C
- ✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
- ✓ 7 year warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating560 Watt
-
Output Voltage20 Volt
-
Rated Current28 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HLG-600H-20B to power 20V LED strip lighting in a fully exposed outdoor setting?
Yes. The HLG-600H-20B outputs 20V at up to 28A (560W) and carries an IP67 waterproof rating, meaning it can withstand temporary immersion and direct rain. Its aluminium casing and -40°C to +90°C operating range make it reliable for year-round outdoor installations without additional enclosures.
Is the HLG-600H-20B suitable for powering dimmable 20V LED flood lights?
Yes. The HLG-600H-20B includes a 1-10V/PWM dimming input, allowing you to pair with a compatible dimmer or automation controller to adjust flood light brightness. At 560W it can drive a substantial number of 20V flood fixtures, and the IP67 rating suits exposed mounting near the lights themselves.
Can the HLG-600H-20B power a large-scale 20V LED channel-letter sign?
Yes, as long as the total module draw does not exceed 560W. The constant-current voltage range of 10-20V accommodates LED modules that operate at slightly different voltages. The IP67 waterproof rating is well-suited for exterior-mounted signage exposed to weather.
How many meters of 20V LED strip can the HLG-600H-20B drive?
It depends on the strip's power consumption per meter. The HLG-600H-20B provides up to 560W at 20V. For a strip rated at 10W/m, you could run 56 meters (560W / 10W per meter = 56m). For a 20W/m strip, up to 28 meters. Always check your strip's rated power per meter and stay within 560W total.
Can the HLG-600H-20B be installed in a below-grade vault or wet junction box?
Yes. IP67 means the enclosure can withstand temporary immersion in water up to 1 meter deep, so below-grade vaults and wet junction boxes are acceptable. The -40°C to +90°C operating temperature range also covers extreme underground conditions.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-600H Models
10 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-600H-24B Power Supply 600W 24V- Dimmable 25A | 600W | 24V | 25A | IP67 | $197.89 | View |
| Mean Well HLG-600H-24 Power Supply 600W 24V 25A | 600W | 24V | 25A | IP67 | $199.50 | View |
| Mean Well HLG-600H-48B Power Supply 600W 48V- Dimmable 12.5A | 600W | 48V | 12.5A | IP67 | $197.89 | View |
| Mean Well HLG-600H-12A Power Supply 480W 12V - Adjustable 40A | 480W | 12V | 40A | IP65 | $194.30 | View |
| Mean Well HLG-600H-24A Power Supply 600W 24V - Adjustable 25A | 600W | 24V | 25A | IP65 | $194.30 | View |
| Mean Well HLG-600H-54B Power Supply 600W 54V- Dimmable 11.2A | 600W | 54V | 11.2A | IP67 | $197.89 | View |
| Mean Well HLG-600H-24AB Power Supply 600W 24V - Adjustable and Dimmable 25A | 600W | 24V | 25A | IP65 | $208.15 | View |
| Mean Well HLG-600H-12B Power Supply 480W 12V - Dimmable 40A | 480W | 12V | 40A | IP67 | $197.89 | View |
| Mean Well HLG-600H-12 Power Supply 480W 12V 40A | 480W | 12V | 40A | IP67 | $199.50 | View |
| Mean Well HLG-600H-36 Power Supply 600W 36V 16.7A | 600W | 36V | 16.7A | IP67 | $209.35 | View |
