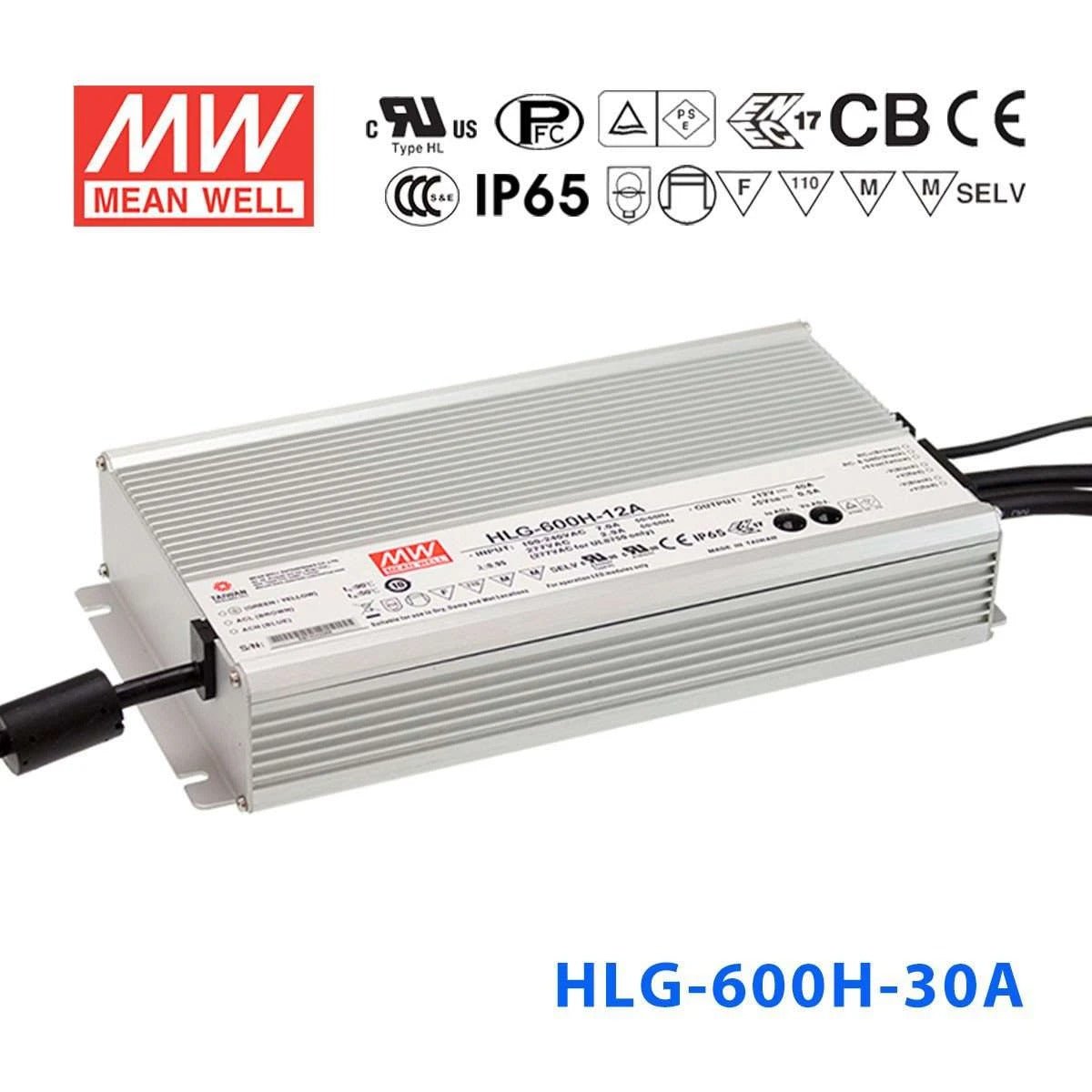

Mean Well HLG-600H-30A Power Supply 600W 30V - Adjustable

Q: Can I use the HLG-600H-30A for a large 30V LED installation where I need to adjust the output voltage?

Yes. The HLG-600H-30A delivers 30V at up to 20A (600W) and includes a potentiometer for adjusting the output voltage and current. This is useful when your 30V LED fixtures perform best at a slightly different voltage within the 15-30V constant-current range.

Q: Is the HLG-600H-30A suitable for powering 30V LED fixtures in a commercial building lobby?

Yes. At 600W it can drive a substantial amount of 30V LED lighting across large indoor spaces. The adjustable output lets you fine-tune brightness and efficiency to match your specific fixtures. Its IP65 rating and aluminium casing suit indoor commercial environments with no risk of water immersion.

Q: Can the HLG-600H-30A power 30V LED panels in a stadium or arena concourse?

Yes, provided total load stays within 600W. The 30V output at 20A is well-suited for arrays of LED panels or linear fixtures. The adjustable output helps compensate for voltage drop over long cable runs, and the -40°C to +90°C operating range handles the temperature extremes in partially open concourse areas.

Q: How many meters of 30V LED strip can the HLG-600H-30A power?

Divide 600W by your strip's rated power per meter. A 30V strip at 12W/m allows 50 meters (600W / 12W per meter = 50m). A 20W/m strip allows 30 meters. Always check your strip's rated power per meter and keep the total at or below 600W.

Q: Can the HLG-600H-30A be used in an outdoor covered walkway or parking canopy?

Yes. The IP65 rating protects against dust and low-pressure water jets, making it suitable for sheltered outdoor locations such as covered walkways, parking canopies, and equipment enclosures. For fully exposed outdoor installations with direct rain, consider the IP67-rated HLG-600H-30 instead.

Description

Features

Universal AC input (up to 305VAC) / Full range

Protections: Short circuit / Over current / Over voltage / Over temp.

Built-in active PFC function

High efficiency up to 96%

IP67 / IP65 design for indoor or outdoor installations (except for HLG-320H C-Type)

Output current adjustable through output cable or internal potentiometer

Cooling by free air convection

Suitable for LED lighting and street lighting applications

Meet 4kV surge immunity level (IEC61000-4-5)

No load power consumption <0.5W at remote off (HLG-600H)

Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires

LED indicator for power on (HLG-600H A-Type only)

Multiple models for choice:
A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer
B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
C-Type: Terminal block for I/O connection (HLG-320H only)
Blank-Type: IP67 rated. Cable for I/O connection (HLG-320H only)
D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (HLG-320H only)

7 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 70A at 230VAC
DC adjustment range	-15%~+5% rated output voltage (A-Type only)
Over voltage protection	110%~140% rated output voltage
Over current protection	95%~108% constant current limiting, auto- recovery
Current adjustment range	50%~100% rated output current adjustable by internal potentiometer (for A-Type & HLG-320H C-Type)
Setup, rise, hold up time	500ms, 80ms, 15ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL60950-1, UL8750, ENEC EN61347-1/2-13, EN62384 approved
EMC standards	EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11,EN61547
Connection Input	UL rated, SJTW 18AWGx3C (30cm)
Connection Output	A-Type: SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) + UL2517 22AWGx3C(30cm) B-Type: SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) + UL2517 22AWGx3C(30cm)+ UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	280x 144x 48.5

Specifications

Brand

Mean Well
Series

HLG Series
Power Rating

600 Watt
Output Voltage

30 Volt
Rated Current

20 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

7 Year
Length

11.02 in
Width

5.67 in
Height

1.91 in
Weight

8.6 lb

File Downloads

::specification::
