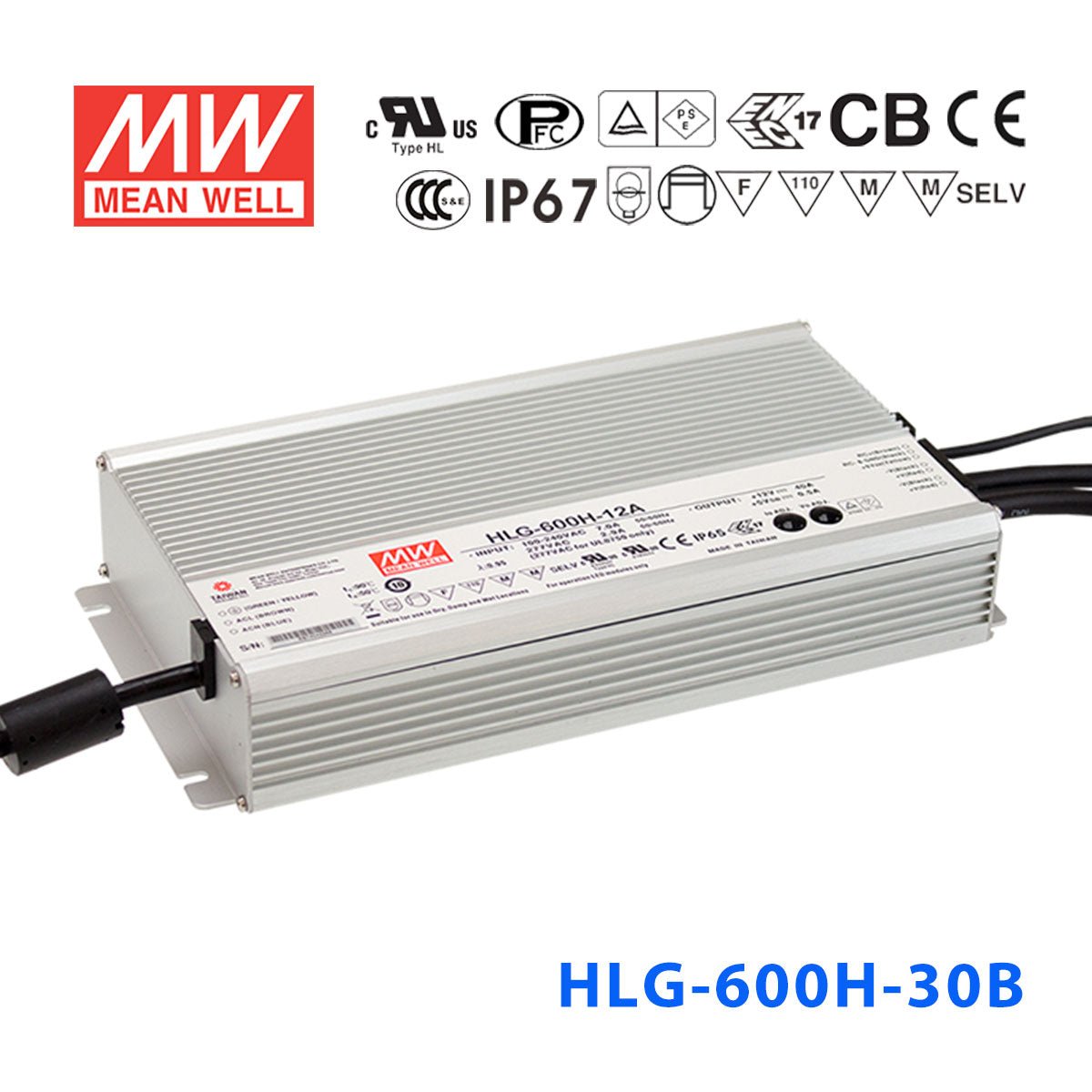

Mean Well HLG-600H-30AB Power Supply 600W 30V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-600H-30AB Power Supply 600W 30V - Adjustable and Dimm...
The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating600 Watt
-
Output Voltage30 Volt
-
Rated Current20 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HLG-600H-30AB to power high-output 30V LED strip lighting?
Yes. The HLG-600H-30AB delivers 600W at 30V with up to 20A of output current, making it well suited for long runs of high-density 30V LED strips in commercial or architectural projects. The built-in dimming input also lets you control brightness from a 1-10V, PWM, or resistance signal without adding a separate controller.
Is the HLG-600H-30AB a good fit for large 30V LED signage installations?
Yes. With 600W of power at 30V, it can drive substantial arrays of 30V LED sign modules, channel letters, or light boxes. Its adjustable output lets you fine-tune voltage and current to match the exact string voltage of your sign modules, and the 90-305VAC universal input handles most commercial mains supplies.
Can I dim the HLG-600H-30AB for architectural 30V LED cove or facade lighting?
Yes. The AB suffix means the driver accepts 1-10V, PWM, and resistance dimming signals, so you can integrate it directly into a building management system or standalone dimmer. Combined with 600W at 30V, it is suitable for large-scale cove, facade, or canopy lighting that requires smooth brightness control.
How many meters of 30V LED strip can the HLG-600H-30AB power?
Divide 600W by your strip's power consumption per meter. For example, a 30V strip rated at 15W/m would allow up to 40 meters (600W / 15W per meter = 40m). Always check your strip's rated power per meter and keep the total load at or below 600W.
Can the HLG-600H-30AB be installed in a covered outdoor area like a parking garage or canopy?
Yes. Its IP65 water-resistant rating protects against low-pressure water jets and dust, which is suitable for covered outdoor environments such as parking structures, canopies, and soffits. For fully exposed rain or submersion scenarios, consider the IP67-rated HLG-600H-30B instead.
What is the difference between the HLG-600H-30, 30A, 30AB, and 30B models?
All four share the same 600W / 30V / 20A core output. The base HLG-600H-30 has fixed output and IP67 waterproof rating. The -30A adds output voltage and current adjustment via built-in potentiometer (IP65). The -30AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -30B provides dimming input only and retains IP67 waterproof rating.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-600H Models
10 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-600H-24B Power Supply 600W 24V- Dimmable | 600W | 24V | 25A | IP67 | $197.89 | View |
| Mean Well HLG-600H-48B Power Supply 600W 48V- Dimmable | 600W | 48V | 12.5A | IP67 | $197.89 | View |
| Mean Well HLG-600H-12A Power Supply 480W 12V - Adjustable | 480W | 12V | 40A | IP65 | $194.30 | View |
| Mean Well HLG-600H-24A Power Supply 600W 24V - Adjustable | 600W | 24V | 25A | IP65 | $191.85 | View |
| Mean Well HLG-600H-24 Power Supply 600W 24V | 600W | 24V | 25A | IP67 | $199.50 | View |
| Mean Well HLG-600H-54B Power Supply 600W 54V- Dimmable | 600W | 54V | 11.2A | IP67 | $197.89 | View |
| Mean Well HLG-600H-24AB Power Supply 600W 24V - Adjustable and Dimmable | 600W | 24V | 25A | IP65 | $208.15 | View |
| Mean Well HLG-600H-12 Power Supply 480W 12V | 480W | 12V | 40A | IP67 | $199.50 | View |
| Mean Well HLG-600H-36 Power Supply 600W 36V | 600W | 36V | 16.7A | IP67 | $208.99 | View |
| Mean Well HLG-600H-12B Power Supply 480W 12V - Dimmable | 480W | 12V | 40A | IP67 | $197.89 | View |
