Mean Well HLG-600H-42A Power Supply | 600W 42V

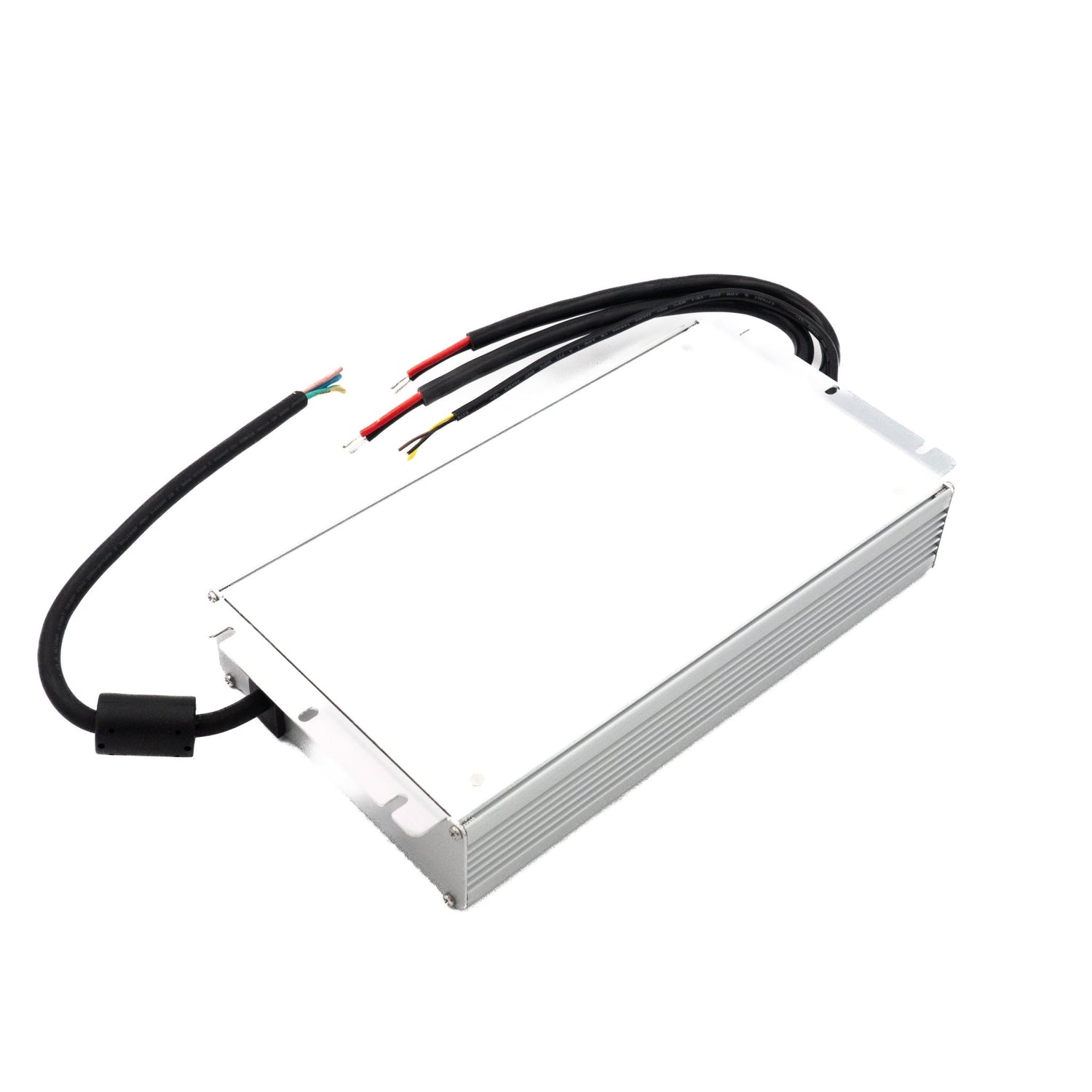

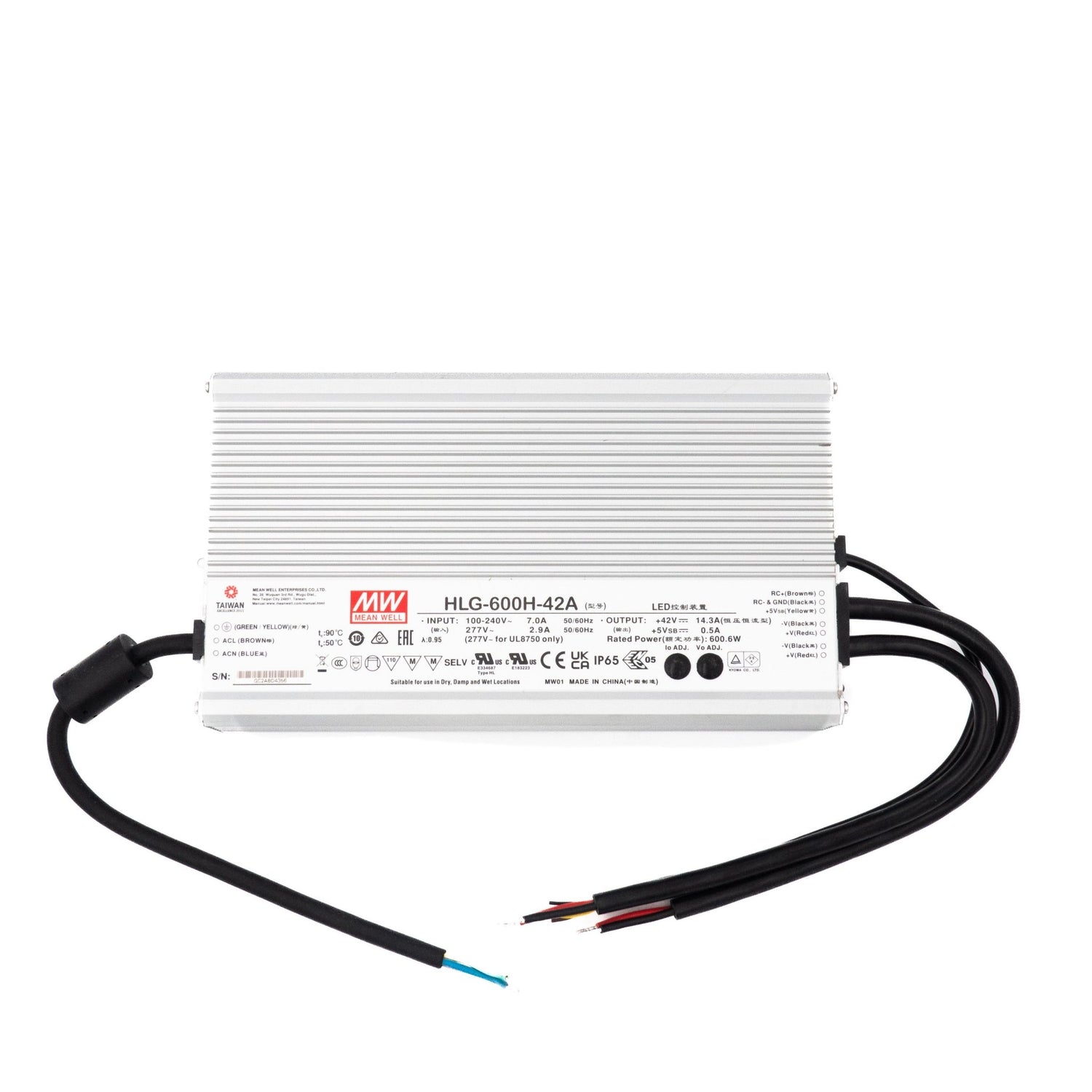

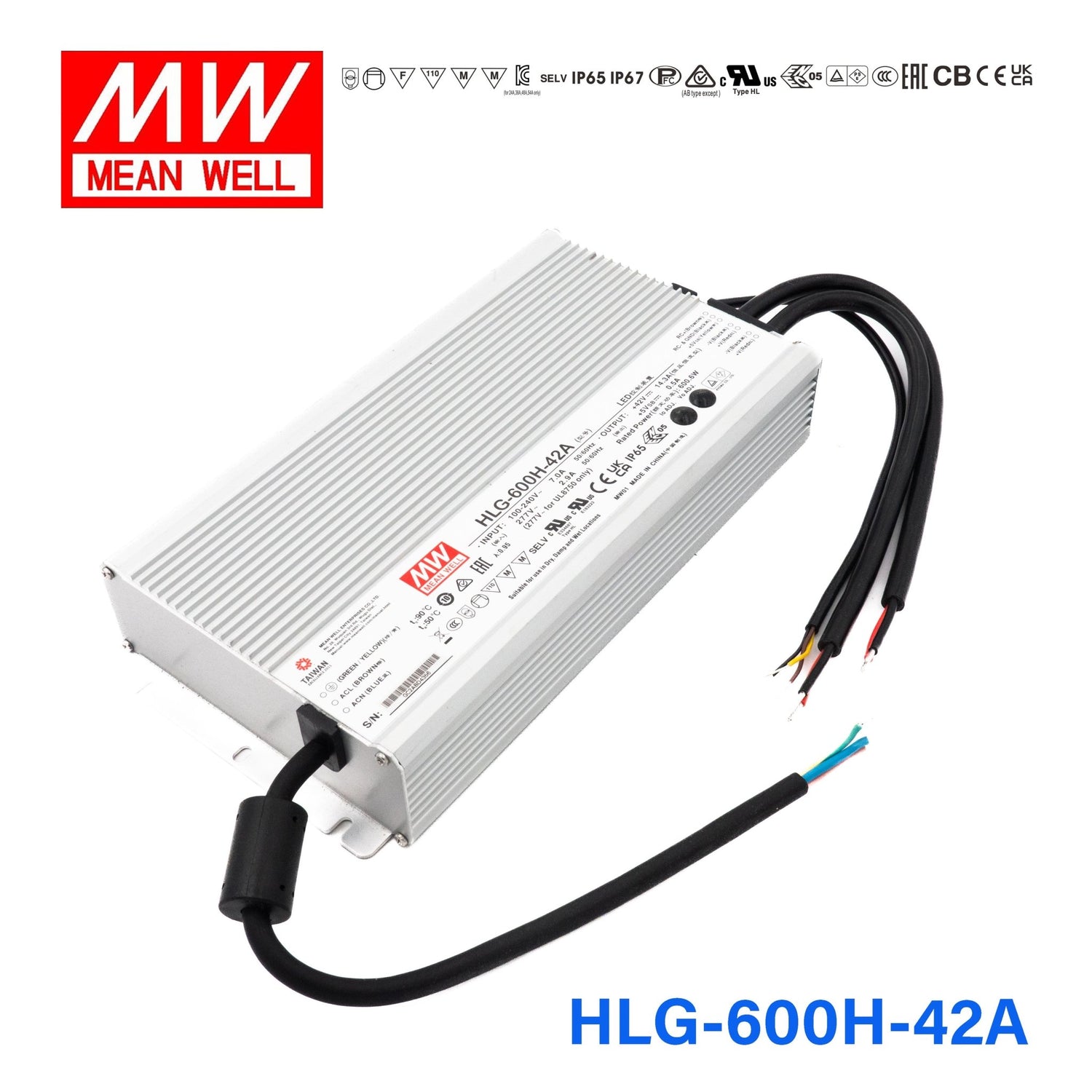

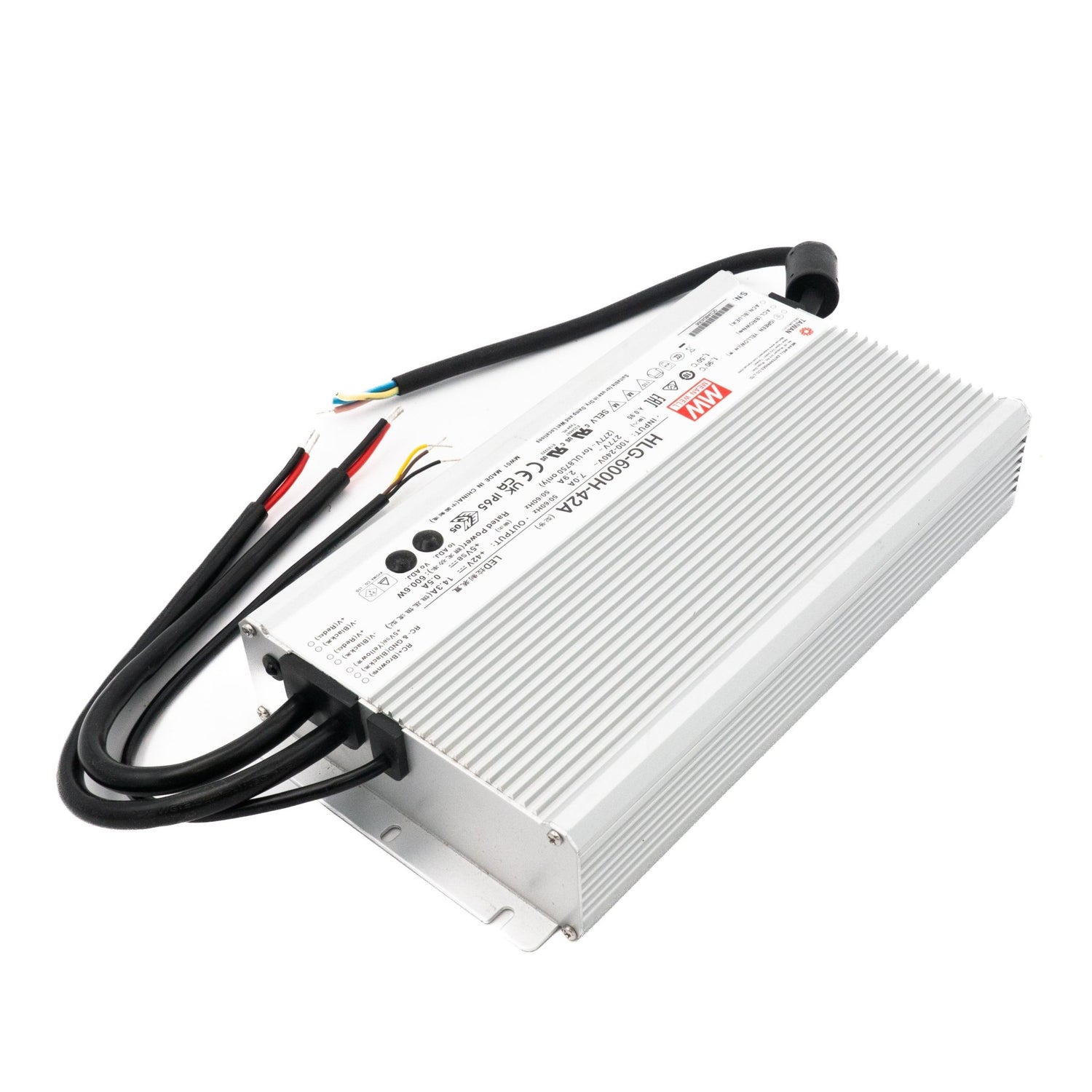

Name: Mean Well HLG-600H-42A Power Supply 600W 42V - Adjustable 14.3A
Brand: Mean Well
SKU: HLG-600H-42A
Price: 194.3 USD
Availability: InStock
Rating: 5.0 (4 reviews)

Overview

HLG-600H-42A is the 42V output model of this series: rated current 14.3A, rated power 600.6W, typical efficiency 96%. Type A: Io and Vo adjustable through built-in potentiometer (IP65).

HLG-600H series is a 600W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-600H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 96%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-600H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Standby power consumption <0.5W at remote off
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-600H-42ASpecifications from the official datasheet (2026-07-24 edition)

OUTPUT

DC VOLTAGE: 42V
CONSTANT CURRENT REGION^Note.4: 21 ~ 42V
RATED CURRENT: 14.3A
RATED POWER: 600.6W
RIPPLE & NOISE (max.)^Note.2: 250mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 35.7 ~ 44.1V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 7.1 ~ 14.3A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms, 80ms/ 115VAC, 230VAC
HOLD UP TIME (Typ.): 15ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.93/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.) 230VAC: 96%
EFFICIENCY (Typ.) 277VAC: 96%
AC CURRENT (Typ.): 7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1000μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 1 unit (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION: <0.5W at remote off

PROTECTION

OVER CURRENT^Note.4: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 46 ~ 50V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

FUNCTION

REMOTE ON/OFF CONTROL: Power on : "High" >2 ~ 5V or Open circuit Power off : "Low" <0 ~ 0.5V or Short circuit
5V STANDBY: 5VSB : 5V@0.5A ; tolerance ±5%, ripple : 100mVp-p(max.)

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 55℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC (Note 10)

SAFETY STANDARDS^Note.7: UL60950-1, UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP65 or IP67, J61347-1, J61347-2-13, GB/T19510.1,GB/T19510.213, EAC TP TC 004, AS/NZS 60950.1(by CB),KC61347-1, KC61347-2-13(except for AB type) approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.7: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, EAC TP TC 020; GB/T 17743,GB17625.1, KS C 9815, KS C 9547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020; KS C 9815, KS C 9547

OTHERS

MTBF: 913.4K hrs min. Telcordia SR-332 (Bellcore) ; 76.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 280*144*48.5mm (L*W*H)
PACKING: 3.9Kg; 4pcs/16.6Kg/0.9CUFT

MODEL ENCODING

A (this model): Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10VDC, 10V PWM signal and resistance); IP67
AB: lo and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10VDC,10V PWM signal and resistance); IP65
Blank: lo and Vo fixed; IP67

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The model certified for CCC(GB/T19510.1, GB/T19510.213, GB/T 17743 and GB17625.1) is an optional model . Please contact MEAN WELL for details.
8. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The driver is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

HLG-600H-42A BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-600H-42A STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-600H-42A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-600H-42A MECHANICAL SPECIFICATION ※A-Type — MECHANICAL SPECIFICATION ※A-Type

Typical applications

LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-600H-42A datasheetHLG-600H-SPEC.PDF · 2026-07-24 edition PDF Download

Certificates6

CB Certificate (HLG-600H)(EN) PDF Download

ERP Certificate (HLG-600H)(EN) PDF Download

EMC Certificate(HLG-600H)(EN) PDF Download

UL Certificate(HLG-600H)(EN) PDF Download

PSE Certificate(HLG-600H)(EN) PDF Download

ENEC Certificate(HLG-600H)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-600H-42A to fine-tune output for 42V LED panel arrays?

Yes. The A suffix indicates a built-in potentiometer that lets you adjust output voltage and current. At 600W and 42V with up to 14.3A, you can precisely match the driver to your 42V LED panels' actual operating point, with voltage adjustable from 35.7-44.1V and current from 7.1-14.3A.

Is the HLG-600H-42A suitable for powering 42V LED grow lights that need output adjustment?

Yes. The HLG-600H-42A provides 600W at 42V with a CC voltage range of 21-42V. The built-in potentiometer allows you to reduce drive current for younger plants or increase it for flowering stages without an external dimmer, though the adjustment range is more limited than a full dimming solution.

Can the HLG-600H-42A drive 42V LED strips for large commercial or retail lighting?

Yes. At 600W and 42V, it can power extensive 42V LED strip runs for retail displays, showrooms, or architectural accents. The adjustable output via potentiometer is useful for setting the exact brightness during commissioning to match the desired ambience.

How many meters of 42V LED strip can the HLG-600H-42A handle?

Divide 600W by your strip's rated power per meter. For example, a 42V strip at 20W/m would support up to 30 meters (600W / 20W per meter = 30m). Always verify your strip's rated power per meter and keep the total load at or below 600W.

Is the HLG-600H-42A rated for outdoor use?

It carries an IP65 water-resistant rating, which protects against dust and low-pressure water jets. This makes it suitable for covered outdoor locations such as canopies, parking structures, and soffits. For fully exposed rain or submersion risk, the IP67-rated HLG-600H-42 base model is the better choice.
