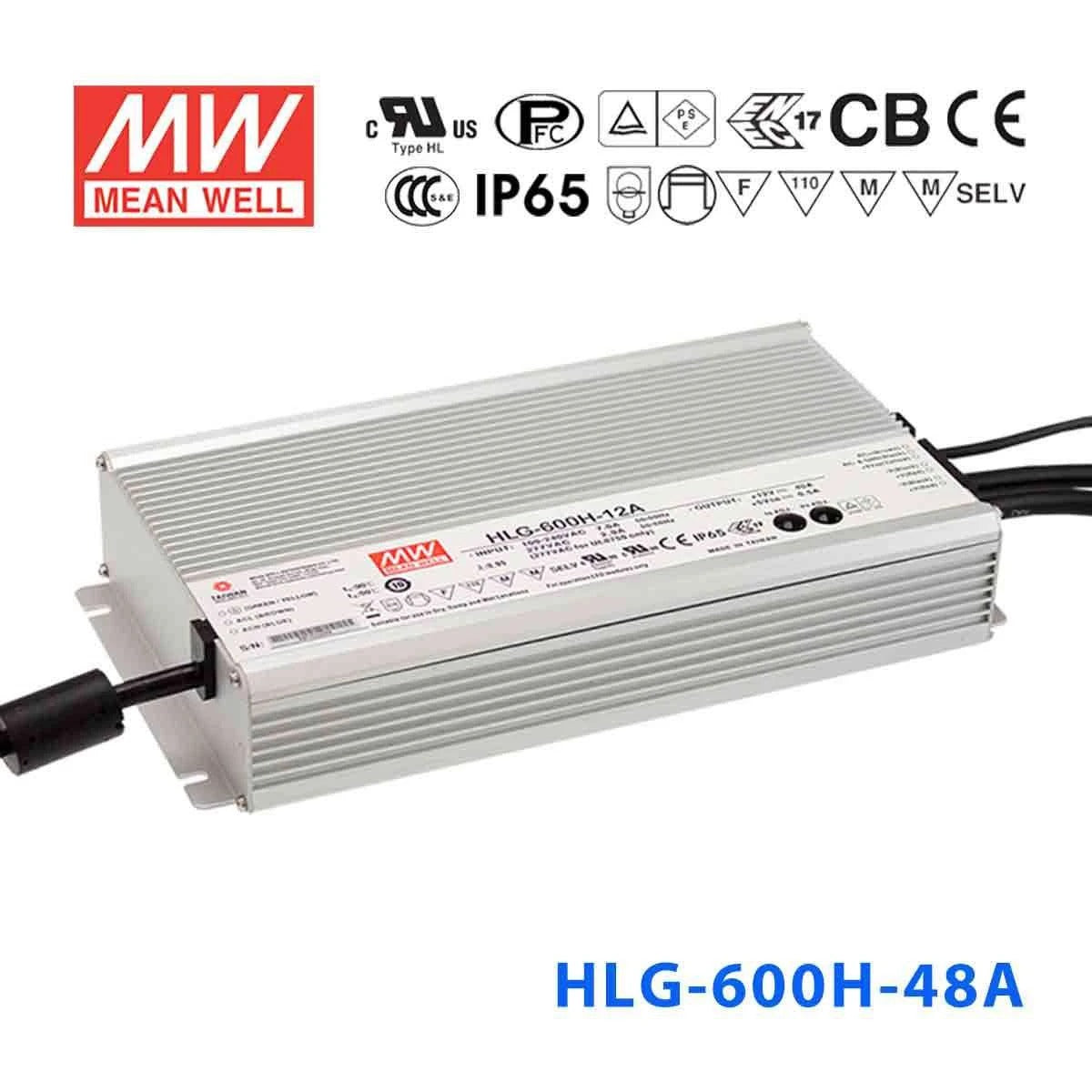

Mean Well HLG-600H-48A Power Supply 600W 48V - Adjustable
The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating600 Watt
-
Output Voltage48 Volt
-
Rated Current12.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HLG-600H-48A to power a 48V LED lighting system with adjustable brightness?
The HLG-600H-48A includes a built-in potentiometer for adjusting output voltage and current, which lets you trim the drive level to match your load. However, it does not have an external dimming input. If you need dynamic dimming via 1-10V or PWM, consider the HLG-600H-48AB or 48B instead.
Is the HLG-600H-48A a good choice for 48V LED high-bay fixtures in a warehouse?
Yes. It delivers 600W at 48V and 12.5A, which is enough to drive multiple high-bay LED fixtures. The adjustable output lets you fine-tune voltage to match the exact LED forward voltage. Its 90-305VAC input handles industrial power supplies worldwide.
Can the HLG-600H-48A power 48V LED strips for retail display lighting?
Yes. At 600W and 48V, it can support long runs of 48V LED strip for retail displays and accent lighting. The built-in voltage adjustment is useful for dialing in the exact brightness level during initial setup. Its IP65 rating is suitable for clean indoor commercial environments.
Is the HLG-600H-48A suitable for 48V LED floodlight installations?
Yes. With 600W capacity it can power substantial 48V LED floodlight arrays for parking lots, sports facilities, or building exteriors. The adjustable output helps match the driver precisely to the floodlight voltage requirements. Mount it in a sheltered spot since IP65 is water-resistant but not rated for submersion.
How many meters of 48V LED strip can the HLG-600H-48A support?
That depends on the strip's rated wattage per meter. The HLG-600H-48A provides up to 600W at 48V. For a strip drawing 20W/m, you could power up to 30 meters (600W / 20W per meter = 30m). Always check your strip's rated power per meter and keep total load at or below 600W.
Can the HLG-600H-48A be used in a semi-exposed outdoor location like a parking garage?
Yes. Its IP65 water-resistant rating protects against dust and low-pressure water jets, making it suitable for covered or semi-exposed locations such as parking garages, canopies, and loading docks. For fully exposed outdoor installations with standing water or heavy rain, the IP67-rated HLG-600H-48 or 48B would be more appropriate.
