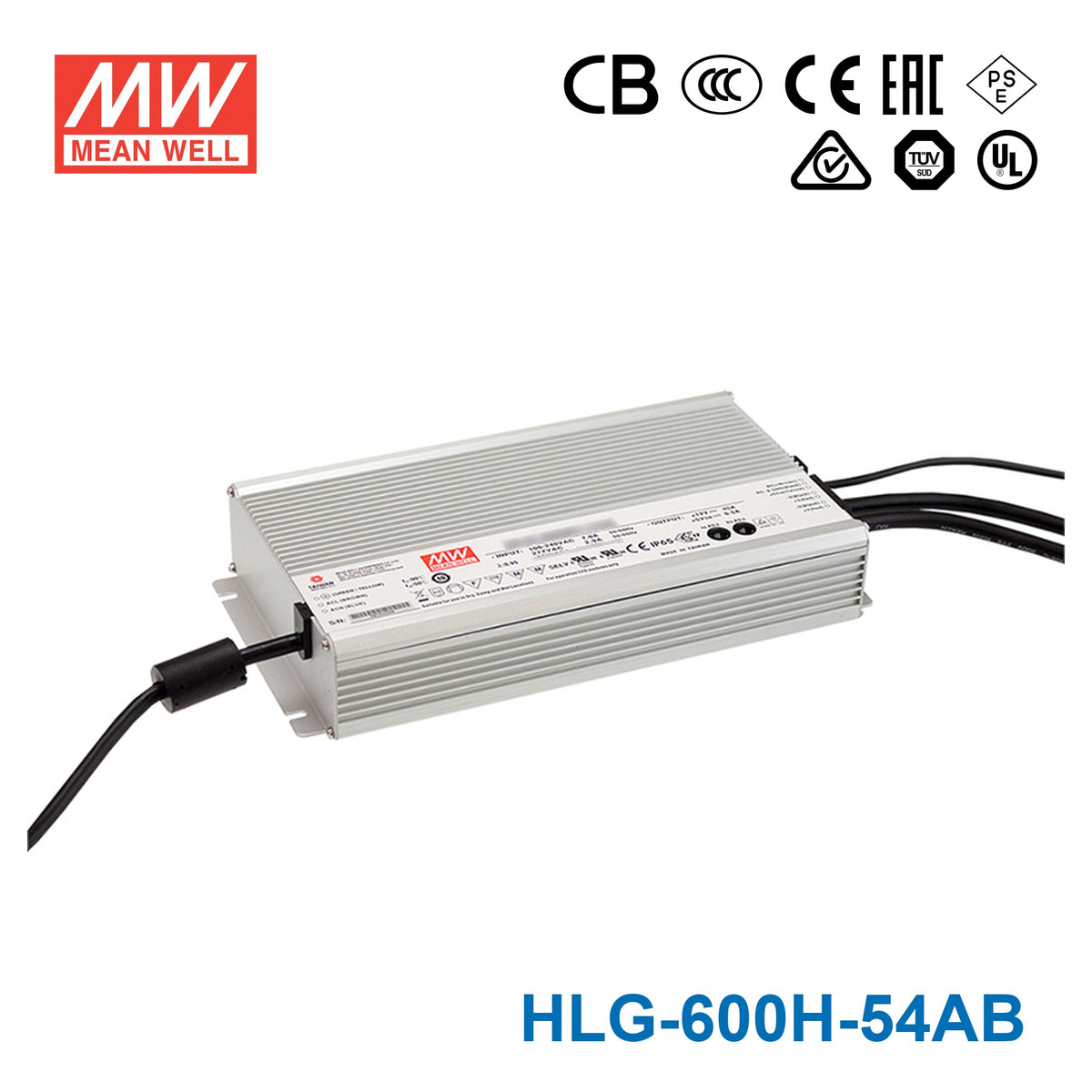

Mean Well HLG-600H-54AB Power Supply 600W 54V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-600H-54AB Power Supply 600W 54V - Adjustable and Dimm...
The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating600 Watt
-
Output Voltage54 Volt
-
Rated Current11.2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HLG-600H-54AB to power a large 54V LED strip installation with dimming?
Yes. The HLG-600H-54AB delivers 600W at 54V and includes both an adjustable output and a dimming interface, so you can fine-tune voltage and brightness for large-scale LED strip runs. Its IP65 water-resistant rating suits sheltered outdoor or indoor installations where dust and low-pressure water jets may be present.
Is the HLG-600H-54AB suitable for powering high-output 54V LED signage?
Yes. With 600W of output power at 54V and 11.2A, the HLG-600H-54AB can drive large channel-letter signs or illuminated building signage that uses 54V LED modules. The adjustable output lets you trim voltage to match the exact module string, and the dimming input supports day/night brightness scheduling.
Can the HLG-600H-54AB drive 54V LED grow lights or horticultural fixtures?
Yes, provided the total fixture load does not exceed 600W. The constant-current mode with a CC voltage range of 27-54V accommodates LED grow-light arrays that may operate at varying forward voltages. The dimming function allows photoperiod intensity control, and the wide input range of 90-305VAC works with most facility mains supplies.
How many meters of 54V LED strip can the HLG-600H-54AB power?
That depends on your strip's rated power per meter. The HLG-600H-54AB supplies up to 600W at 54V. For example, if your strip draws 14W/m, you could run approximately 42 meters (600W / 14W per meter ≈ 42.8m). Always check your strip's rated power per meter and keep the total load at or below 600W.
Can the HLG-600H-54AB be installed in a covered outdoor location?
Yes. Its IP65 rating protects against dust ingress and low-pressure water jets, making it suitable for covered patios, canopies, or ventilated outdoor electrical enclosures. For fully exposed rain or submersion scenarios, consider the IP67-rated HLG-600H-54B instead.
What are the differences between the HLG-600H-54, 54A, 54AB, and 54B models?
All four share the same 600W / 54V / 11.2A core specs. The base HLG-600H-54 has no output adjustment or dimming and is IP67 waterproof. The -54A adds a built-in potentiometer for voltage/current adjustment (IP65). The -54AB adds both adjustment and dimming input (IP65). The -54B adds dimming input only and retains IP67 waterproof rating.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-600H Models
10 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-600H-24B Power Supply 600W 24V- Dimmable | 600W | 24V | 25A | IP67 | $197.89 | View |
| Mean Well HLG-600H-48B Power Supply 600W 48V- Dimmable | 600W | 48V | 12.5A | IP67 | $197.89 | View |
| Mean Well HLG-600H-12A Power Supply 480W 12V - Adjustable | 480W | 12V | 40A | IP65 | $194.30 | View |
| Mean Well HLG-600H-24A Power Supply 600W 24V - Adjustable | 600W | 24V | 25A | IP65 | $191.85 | View |
| Mean Well HLG-600H-24 Power Supply 600W 24V | 600W | 24V | 25A | IP67 | $199.50 | View |
| Mean Well HLG-600H-54B Power Supply 600W 54V- Dimmable | 600W | 54V | 11.2A | IP67 | $197.89 | View |
| Mean Well HLG-600H-24AB Power Supply 600W 24V - Adjustable and Dimmable | 600W | 24V | 25A | IP65 | $208.15 | View |
| Mean Well HLG-600H-12 Power Supply 480W 12V | 480W | 12V | 40A | IP67 | $199.50 | View |
| Mean Well HLG-600H-36 Power Supply 600W 36V | 600W | 36V | 16.7A | IP67 | $208.99 | View |
| Mean Well HLG-600H-12B Power Supply 480W 12V - Dimmable | 480W | 12V | 40A | IP67 | $197.89 | View |
