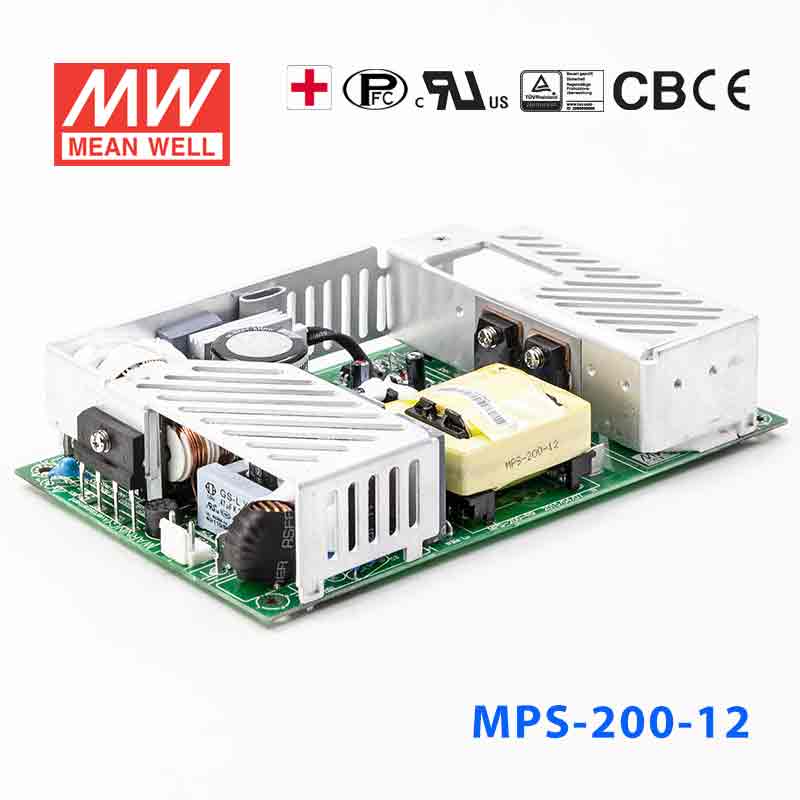

Mean Well MPS-200-12 Power Supply 200W 12V he rated current is base...
Description
Description
MEAN WELL MPS-200 Series Power Supplies are 200W medical type power supplies with high reliability and 3 years warranty.
Key Features
- ✓Universal AC input
- ✓Full range
- ✓Low leakage Current<180uA
- ✓Protections:
- ✓Short circuit
- ✓Overload/Over voltage/Over temperature
- ✓Free air convection for 140W and forced air convection 200W
- ✓ANSI/AAMIES60601-1 medical safety approved
- ✓With power good and fail signal output
- ✓Built-in remote ON-OFF control
- ✓Built-in remote sense function
- ✓Fixed switching frequency at 100KHz
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating200 Watt
-
Output Voltage12 Volt
-
Rated Current16.7 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length7 in
-
Width4.22 in
-
Height1.4 in
-
Weight1.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MPS-200-12 for 12V industrial automation equipment?
Yes, it delivers a constant 12V output up to 16.7A, with 200W total power. It is suited to 12V automation loads, control assemblies, and industrial electronics that require regulated 12V DC within that range.
Is this a fit for a larger 12V control panel with multiple DC loads?
It can support a larger 12V panel when the combined draw stays within 16.7A and 200W. That makes it better suited to heavier 12V DC loads than the lower-wattage 12V models in the same family.
Can the MPS-200-12 power 12V embedded or communication hardware from standard AC mains?
Yes, the unit accepts 90-264VAC input and converts it to a constant 12V DC output. It is appropriate for 12V embedded, communication, or monitoring equipment that falls within the 200W and 16.7A limits.
Does this model work in cold or hot indoor equipment spaces?
The specified operating temperature range is -20°C to +70°C, so it is rated across a wide indoor temperature span. No IP rating is listed, so the supplied specs do not establish outdoor or water-exposed suitability.
What are the 12V choices in the MPS series?
The listed 12V versions are MPS-30-12 at 30W and 2.5A, MPS-45-12 at 44.4W and 3.7A, MPS-65-12 at 62.4W and 5.2A, MPS-120-12 at 120W and 10A, and MPS-200-12 at 200W and 16.7A. This model is the highest-power 12V option shown among those siblings.
Other MPS-200 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPS-200-5 Power Supply 200W 5V he rated current is based on there being a fan that can provide 25CFM. | 200W | 5V | 40A | Indoor | $135.48 | View |
| Mean Well MPS-200-48 Power Supply 200W 48V he rated current is based on there being a fan that can provide 25CFM. | 200W | 48V | 4.2A | Indoor | $135.48 | View |
| Mean Well MPS-200-3.3 Power Supply 132W 3.3V he rated current is based on there being a fan that can provide 25CFM. | 132W | 3.3V | 40A | Indoor | $135.48 | View |
| Mean Well MPS-200-24 Power Supply 200W 24V he rated current is based on there being a fan that can provide 25CFM. | 200W | 24V | 8.4A | Indoor | $135.48 | View |
| Mean Well MPS-200-15 Power Supply 200W 15V he rated current is based on there being a fan that can provide 25CFM. | 200W | 15V | 13.4A | Indoor | $135.48 | View |
